Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Grey
Width
5 mm
Height
70 mm
Depth
40 mm
Rated voltage
500 V
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
2
Number of clamp positions per level
2
Internally connected stages
no
Connectable conductor cross section solid-core
0.08 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 4 mm²
Connectable conductor cross section multi-wired
0.08 - 2.5 mm²
Material insulation body
Thermoplastic
Rated current In
24 A
Explosion-tested version 'Ex e'
no
Suitable for conductor material
-
Downloads

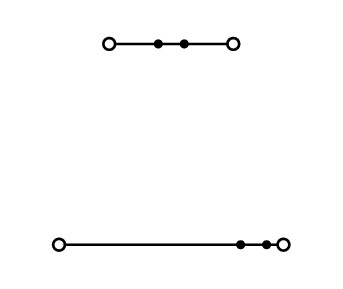

Double-deck terminal block;Through/through terminal block;L/N;gray
Product details
SKU Code: 870-503
EAN Code: 4044918630894
Minimum order: 50
This product is currently unavailable in any shop. Please contact the manufacturer for information on where it can be sourced.
No Availability (0 sellers)
