Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Orange
Width
4.2 mm
Height
69.9 mm
Depth
32.9 mm
Rated voltage
800 V
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Number of clamp positions per level
4
Internally connected stages
no
Connectable conductor cross section solid-core
0.5 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 2.5 mm²
Connectable conductor cross section multi-wired
0.25 - 1.5 mm²
Material insulation body
Thermoplastic
Rated current In
18 A
Explosion-tested version 'Ex e'
yes
Suitable for conductor material
-
Downloads

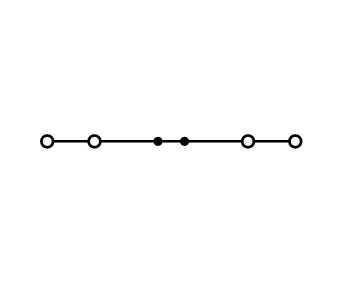

4-conductor through terminal block;with push-button;1.5 mm²;orange
Product details
SKU Code: 2201-1402
EAN Code: 4066966410976
Minimum order: 100
This product is currently unavailable in any shop. Please contact the manufacturer for information on where it can be sourced.
No Availability (0 sellers)
