Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 15 mm
Colour
Grey
Width
10 mm
Height
32 mm
Depth
24.5 mm
Rated voltage
800 V
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Number of clamp positions per level
4
Internally connected stages
no
Connectable conductor cross section solid-core
0.08 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 2.5 mm²
Connectable conductor cross section multi-wired
0.08 - 2.5 mm²
Material insulation body
Thermoplastic
Rated current In
24 A
Explosion-tested version 'Ex e'
no
Suitable for conductor material
-
Downloads

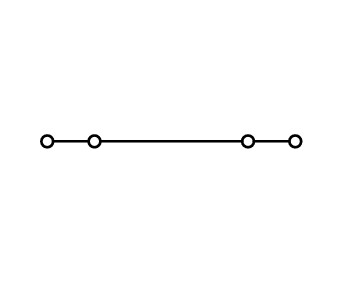

4-conductor miniature through terminal block;2.5 mm²;with test option;gray
Product details
SKU Code: 264-721
EAN Code: 4044918414845
Minimum order: 100
Good Availability (2 sellers)
Availability
124 In Stock
£1.34
4 In Stock
£11.44
(unit price £1.14) Selling in packs of 10.
Distributor | Availability | Price | |
---|---|---|---|
![]() |
124 In Stock | £1.34 Ex. VAT | |
![]() |
4 In Stock | £11.44 Ex. VAT | (unit price £1.14) Selling in packs of 10. |
Price Range:
£1.34 > £11.44 ex. vat
