Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Grey
Width
6 mm
Height
61.5 mm
Depth
37 mm
Rated voltage
800 V
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Number of levels
1
Number of clamp positions per level
3
Internally connected stages
no
Connectable conductor cross section solid-core
0.08 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 4 mm²
Connectable conductor cross section multi-wired
0.08 - 4 mm²
Material insulation body
Thermoplastic
Rated current In
32 A
Explosion-tested version 'Ex e'
no
Suitable for conductor material
-
Downloads

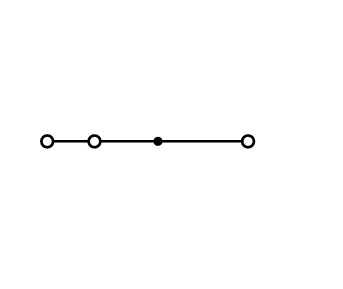

3-conductor through terminal block;4 mm²;center marking;gray
Product details
SKU Code: 281-631
EAN Code: 4044918323871
Minimum order: 100
Good Availability (2 sellers)
Availability
79 In Stock
£1.60
15 In Stock
£8.46
(unit price £1.69) Selling in packs of 5.
| Distributor | Availability | Price | |
|---|---|---|---|
|
|
79 In Stock | £1.60 Ex. VAT | |
|
|
15 In Stock | £8.46 Ex. VAT | (unit price £1.69) Selling in packs of 5. |
Price Range:
£1.60 > £8.46 ex. vat
