Technical Data
Main Features
Width
45 mm
Height
90 mm
Depth
115.5 mm
Type of current
-
Current measuring range
0.5 - 6 A
External current transformer
no
Voltage measuring range
Voltage type (supply voltage)
-
External power supply required
-
With detachable clamps
yes
Single-phase hysteresis possible
no
Three-phase hysteresis possible
no
Single-phase under current possible
no
Three-phase under current possible
no
Single-phase overcurrent possible
yes
Three-phase overcurrent possible
no
Contains function DC-voltage under current
no
Contains function DC-voltage overcurrent
yes
Function DC-current hysteresis
no
Type of electric connection
Spring clamp connection
Voltage type (operating voltage)
-
Rated switch current
-
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Supply voltage DC
Max. permitted delay-on energization time
5 s
Min. adjustable delay-on energization time
0.016 s
Max. permitted off-delay time
-
Min. adjustable off-delay time
-
Response value amperage 1
Response value amperage 2
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Operating voltage DC
Number of contacts as normally closed contact
Number of contacts as normally open contact
Number of contacts as change-over contact
Downloads

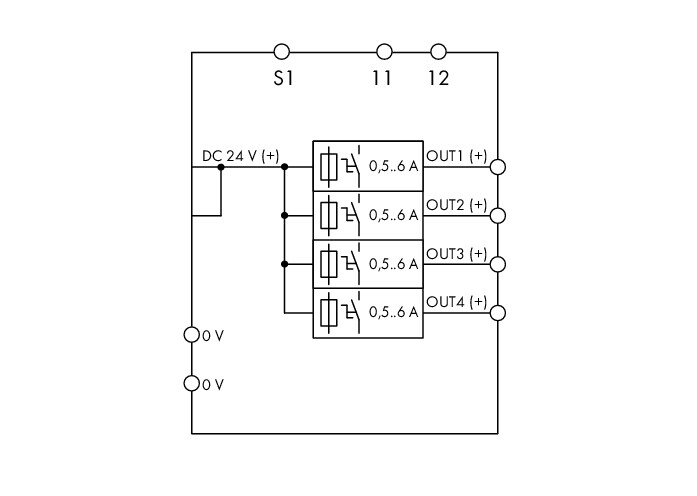

Electronic circuit breaker;4-channel;24 VDC input voltage
Product details
SKU Code: 787-1664/006-1054
EAN Code: 4055143255172
Minimum order: 1
This product is currently unavailable in any shop. Please contact the manufacturer for information on where it can be sourced.
No Availability (0 sellers)
