Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Grey
Width
10 mm
Height
39.5 mm
Depth
64 mm
Rated voltage
110 V
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Type of component

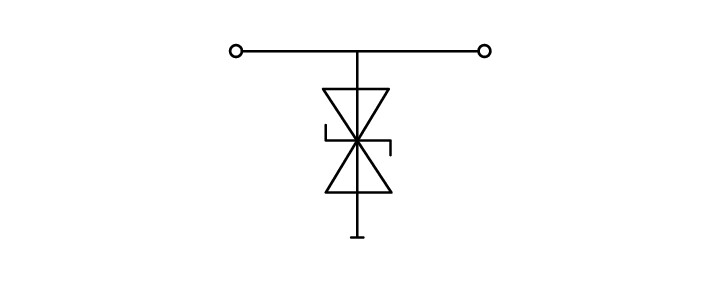

Suppressor diode
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
no
Connectable conductor cross section solid-core
0.08 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 2.5 mm²
Connectable conductor cross section multi-wired
0.08 - 2.5 mm²
Material insulation body
Thermoplastic
Rated current In
20 A
Explosion-tested version 'Ex e'
no
Downloads

Component terminal block;double-deck;with end plate and direct connection to DIN-rail;gray
Product details
SKU Code: 280-502/281-592
EAN Code: 4017332262798
Minimum order: 50
This product is currently unavailable in any shop. Please contact the manufacturer for information on where it can be sourced.
No Availability (0 sellers)
