Technical Data
Main Features
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Grey
Width
5.2 mm
Height
69.9 mm
Depth
32.9 mm
Rated voltage
250 V
Operating temperature
105 - 105 °C
Inflammability class of insulation material according to UL94
V0
Closing plate required
yes
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Type of component
Diode
Number of levels
1
Number of clamp positions per level
4
Internally connected stages
no
Connectable conductor cross section solid-core
0.75 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.75 - 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 4 mm²
Connectable conductor cross section multi-wired
0.25 - 2.5 mm²
Material insulation body
Thermoplastic
Rated current In
0.5 A
Explosion-tested version 'Ex e'
no
Downloads

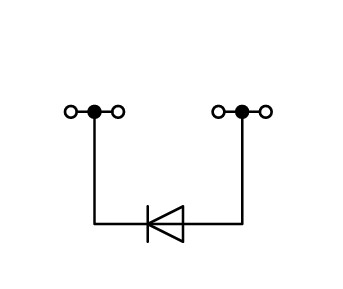

Component terminal block;4-conductor;with diode 1N4007;gray
Product details
SKU Code: 2002-1411/1000-411
EAN Code: 4045454536336
Minimum order: 100
Some Availability (2 sellers)
Availability
25 In Stock
£4.16
Back Order FREE delivery for orders over £50.00
£382.79
(unit price £3.82) Selling in packs of 100.
| Distributor | Availability | Price | |
|---|---|---|---|
|
|
25 In Stock | £4.16 Ex. VAT | |
|
|
Back Order FREE delivery for orders over £50.00 | £382.79 Ex. VAT | (unit price £3.82) Selling in packs of 100. |
Price Range:
£4.16 > £382.79 ex. vat
