Technical Data
Main Features
EFNL0014
false
Mounting method
Pendant
Protection class according to IEC 61140
I
Width
-
Outer diameter
355 mm
Reflector
None
Lamp holder
None
Conductor cross section
1 mm²
Connection type
Push-in clamp
Housing colour
Grey
Voltage type
AC
Suitable for lamp power
137 - 168 W
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Ball-proof
no
Number of poles
3
Length
-
Height/depth
93 mm
Housing material
Aluminium
Lamp type
LED not exchangeable
Reflector colour
Other
Suitable for emergency lighting
no
Light distribution
Symmetric
Material reflector
Other
Impact strength
IK06
Nominal voltage
220 - 240 V
Emergency power supply integrated
no
Degree of protection (IP)
IP65
With protective cover
yes
With light source
no
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
no
Suitable for number of light sources
1
With control gear
yes
Beam angle
Extreme wide beam >80°
Nominal current
700 - 860 mA
Colour temperature
4000 - 4000 K
Max. system power
168 W
Rated luminous flux according to IEC 62722-2-1
20500
Colour of light
White
Constant light output (CLO)
no
Type of wiring
Ending
Rated life time L70/B50 at 25 °C
35000 h
Colour consistency (McAdam ellipse)
SDCM5
Total harmonic distortion
0.2
Photobiological safety according to EN 62471
RG0
Degree of protection (NEMA)
-
Rated ambient temperature according to IEC 62722-2-1
35 - 35 °C
Filament test according to IEC 60695-2-11
650 °C - 30 s
Dimming 0-10 V
no
Dimming 1-10 V
no
Dimming DALI
no
Dimming DMX
no
Dimming potentiometer (integrated)
no
Dimming LineSwitch
no
Dimming manufacturer's proprietary system
no
Dimming mains voltage modulation
no
Dimming phase cut-off (trailing edge)
no
Dimming phase cut-on (leading edge)
no
Dimming programmable
no
Dimming RF
no
Dimming Sine Wave Reduction
no
Dimming Touch and Dim
no
Dimming Zigbee
no
Dimming with push-button
no
No dim function
yes
Light distributor
Refractor lens
Luminaire efficacy
122
Dimming DSI
no
Suitable for auxiliary lamp
no
Operation by Bluetooth
no
Power factor
0.9
Max. number of luminaires per miniature circuit breaker C16 (MCB)
8
Max. number of luminaires per miniature circuit breaker B16 (MCB)
6
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
70 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
-
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
7.5 %
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
-
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Exchangeable control gear
no
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Downloads

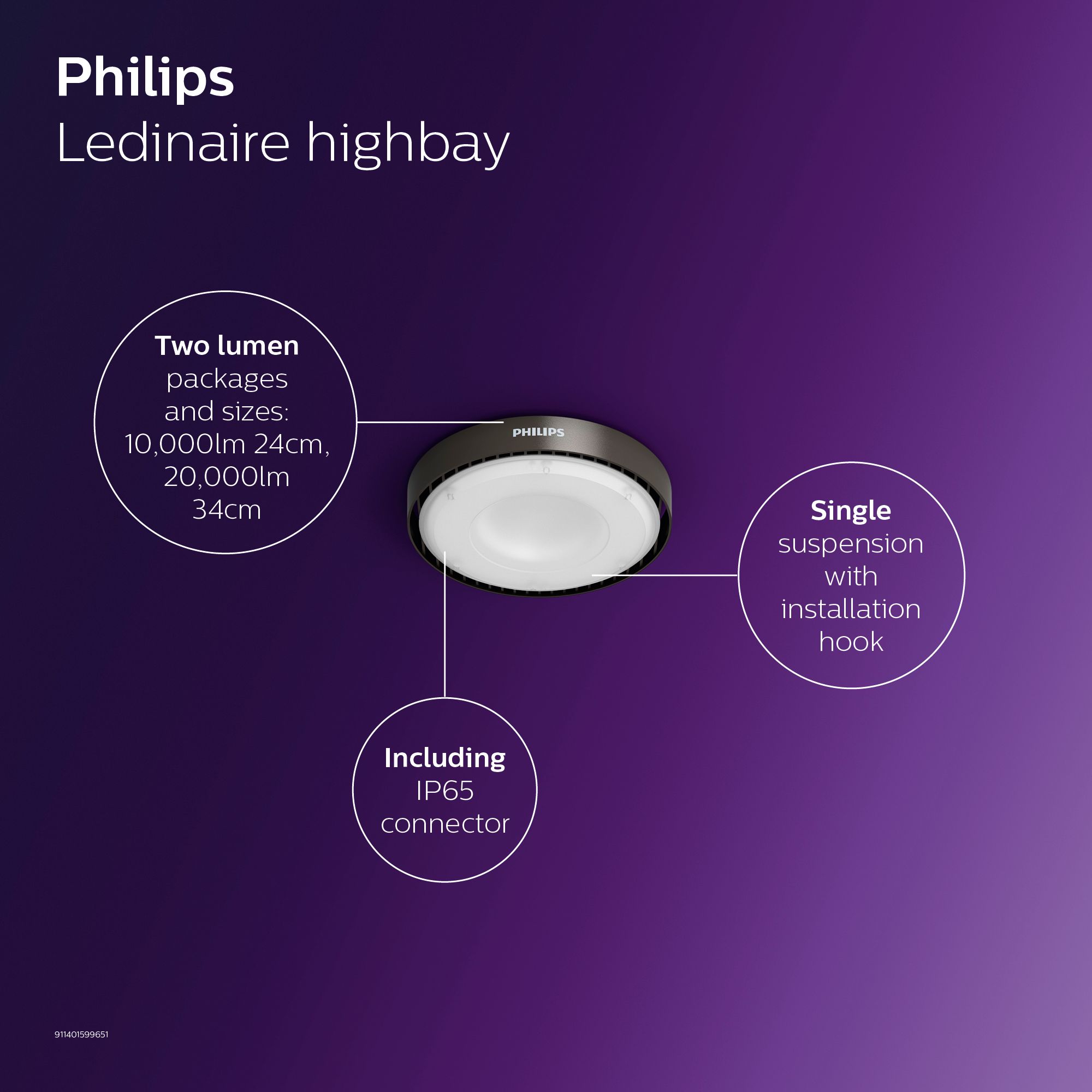

Ledinaire High-bay, 168 W, D355 mm, 20500 lm, 4000 K, Wide beam, IP65, IK06
Product details
SKU Code: 911401642307
EAN Code: 8719514524040
Minimum order: 1
Some Availability (2 sellers)
Availability
28 In Stock
£157.94
0 In Stock
£226.57
We currently do not have any data on product availability.
Please visit the partner's website for pricing information.
| Distributor | Availability | Price | |
|---|---|---|---|
|
|
28 In Stock | £157.94 Ex. VAT | |
|
|
0 In Stock | £226.57 Ex. VAT | |
|
|
We currently do not have any data on product availability. | Please visit the partner's website for pricing information. |
119 loyalty points
Price Range:
£157.94 > £226.57 ex. vat
