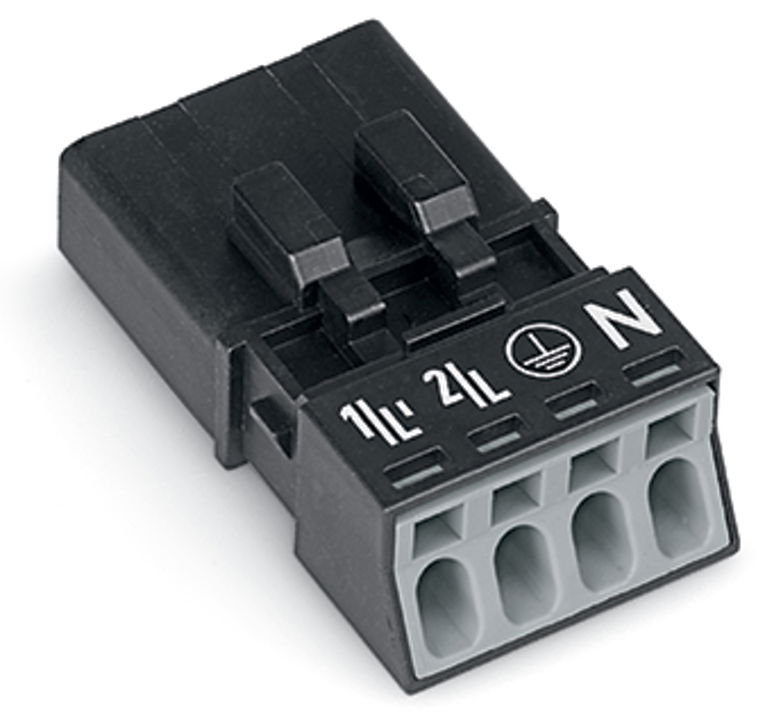

Plug 4-pole Cod. A black
Wago

Plug 4-pole Cod. A black

Plug; 4-pole; Cod. A; 1,50 mm²; black

Product identifiers

SKU: 890-214
EAN: 4055143548564
GTIN: 4055143548564
MPN: 890-214

Voltimum+ Loyalty Programme Loyalty points: 3 (x50)

Price: £ 2.54 Excl. VAT

Categories

Industrial Connectors Terminals, Connectors & Interconnects

Specifications

Model Plug

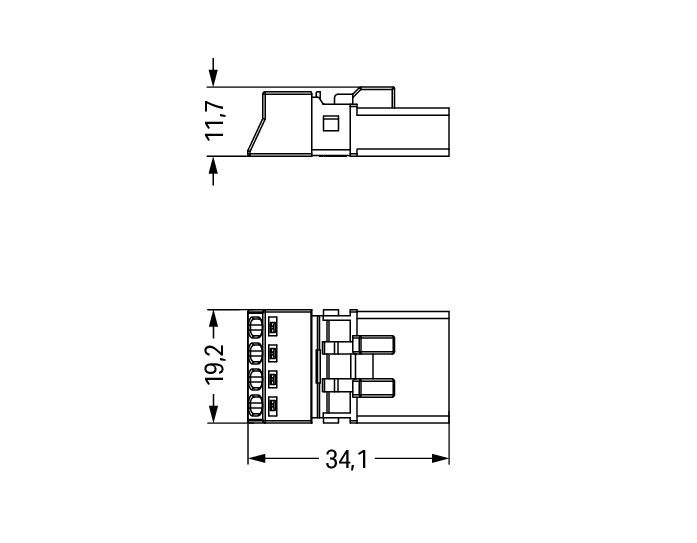

Width 19.2
Height 11.7
Length 34.1
Fire load 0.0275
Halogen free yes
Rated current 16
Rated voltage 400
Connection type Spring clamp connection
Type of locking Separate
Housing material Polyamide (PA)
Mechanical coding yes
With strain relief no
Continuity resistance 1
Surface treatment contacts Tinned
Number of connections per pole 1
Connection cross section (solid-core) 0.25 - 1.5
Max. continuous temperature resistance contact part 85
