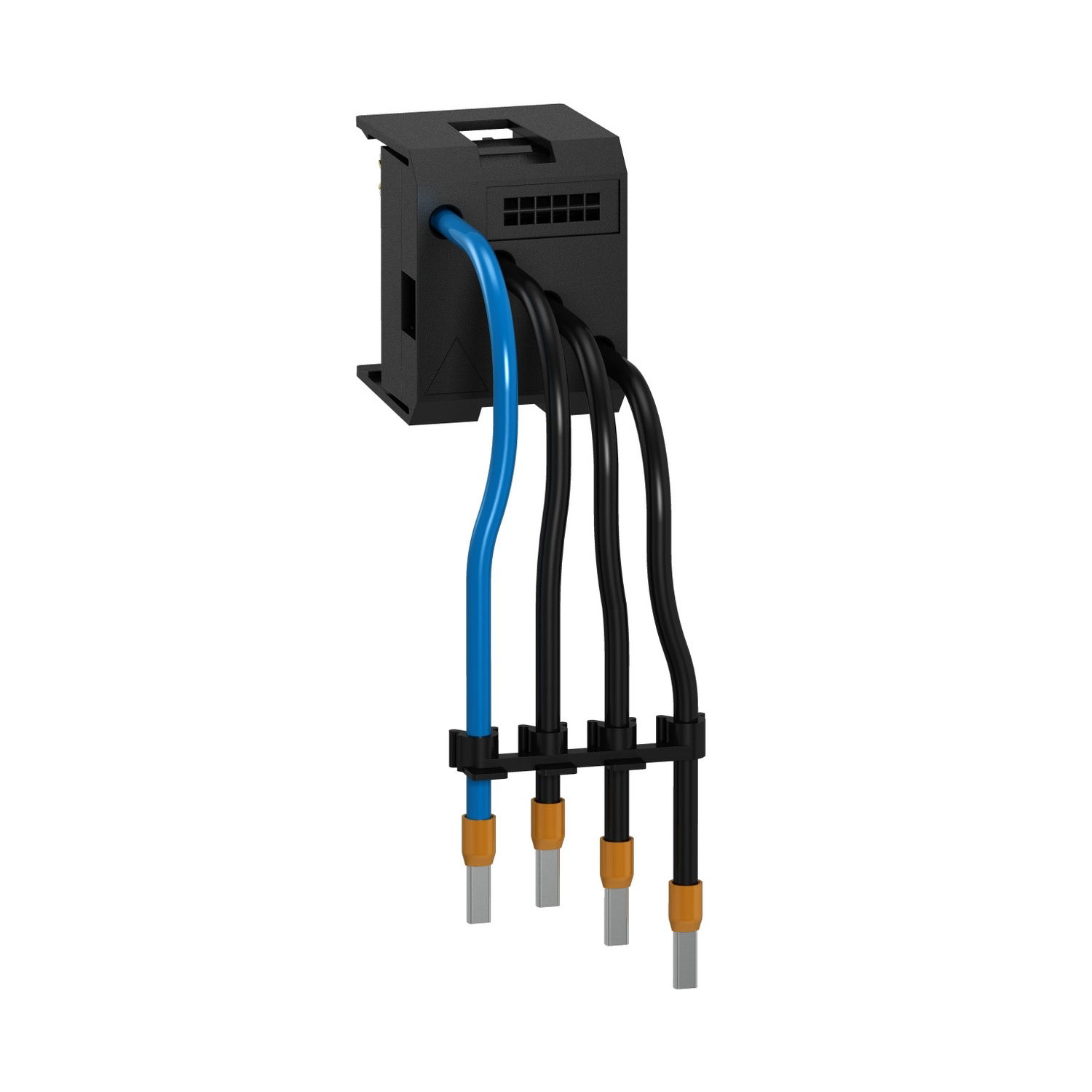

PLUG BI 32A FIL LG 250MM

PLUG BI 32A FIL LG 250MM

Linergy 3P plug outlet. It provides 3P, 2 points and 3 cables with 4 mm², 0.25 m. The conventional free air thermal current is 32A. Sold in lots of 6 units. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It is compliant with Green Premium (RoHS/REACH).

Product identifiers

SKU: AK5PC33
EAN: 3389110576856
GTIN: 3389110576856
MPN: AK5PC33

Price range: £ 20.85 - £ 23.40 Excl. VAT

Specifications

Width 38 mm
Colour Grey
Height 46 mm
Length 36 mm
Protection None
RAL-number 7021
With locking yes
Branch off type Cable
Phase selection no
Rated voltage AC 50 Hz
Degree of protection (IP) IP20
Number of NEMA socket outlets 0
Number of conductors (without earthing) 3
