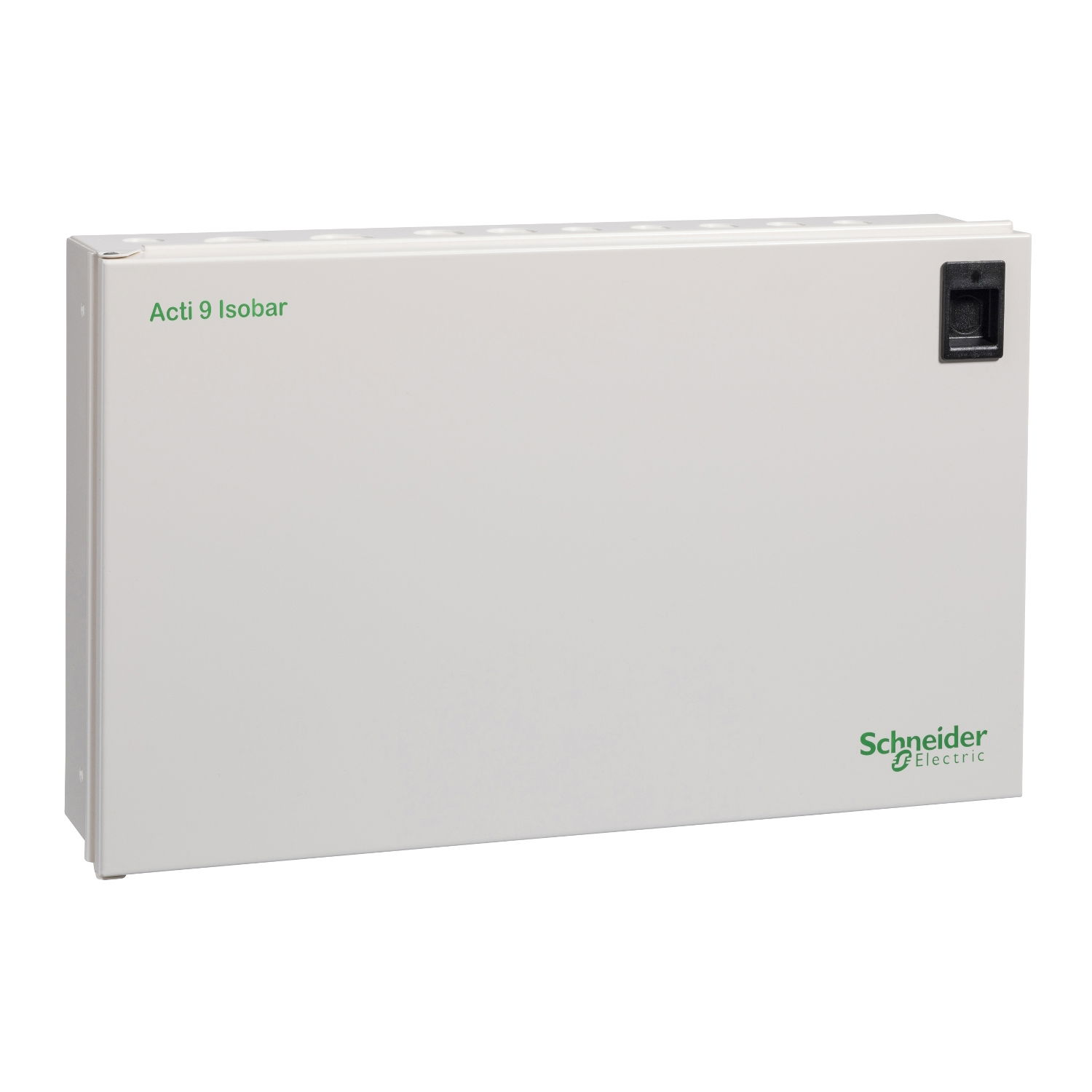

Acti9 Isobar A - din rail enclosure - 20 ways - steel

Link copied
SKU
EAN
GTIN
MPN

Acti9 Isobar A - din rail enclosure - 20 ways - steel by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, RS Components and Rexel Group. It is currently in stock at all of them. Trade prices range from £131.67 to £198.81 excl. VAT. Voltimum+ members earn 22 points per unit.

This Acti9 Isobar A product is a 1 horizontal row and 20 ways enclosure. It is suitable for standard, commercial and industrial applications. The dimensions are (W) 489mm x (H) 300mm x (D) 117mm. According to BS/EN 60529, the IP degree of protection is IP3x. The color of this distribution board is white (RAL9001).

Voltimum+ Loyalty Programme Loyalty points: 22

Price range: £ 131.67 - £ 198.81 Excl. VAT

Specifications

Depth 117 mm
Width 489 mm
Colour Other
Height 300 mm
DIN-rail yes
With lock yes
RAL-number 9001
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block no
Earthing terminal block yes
Width in number of modular spacings 40
