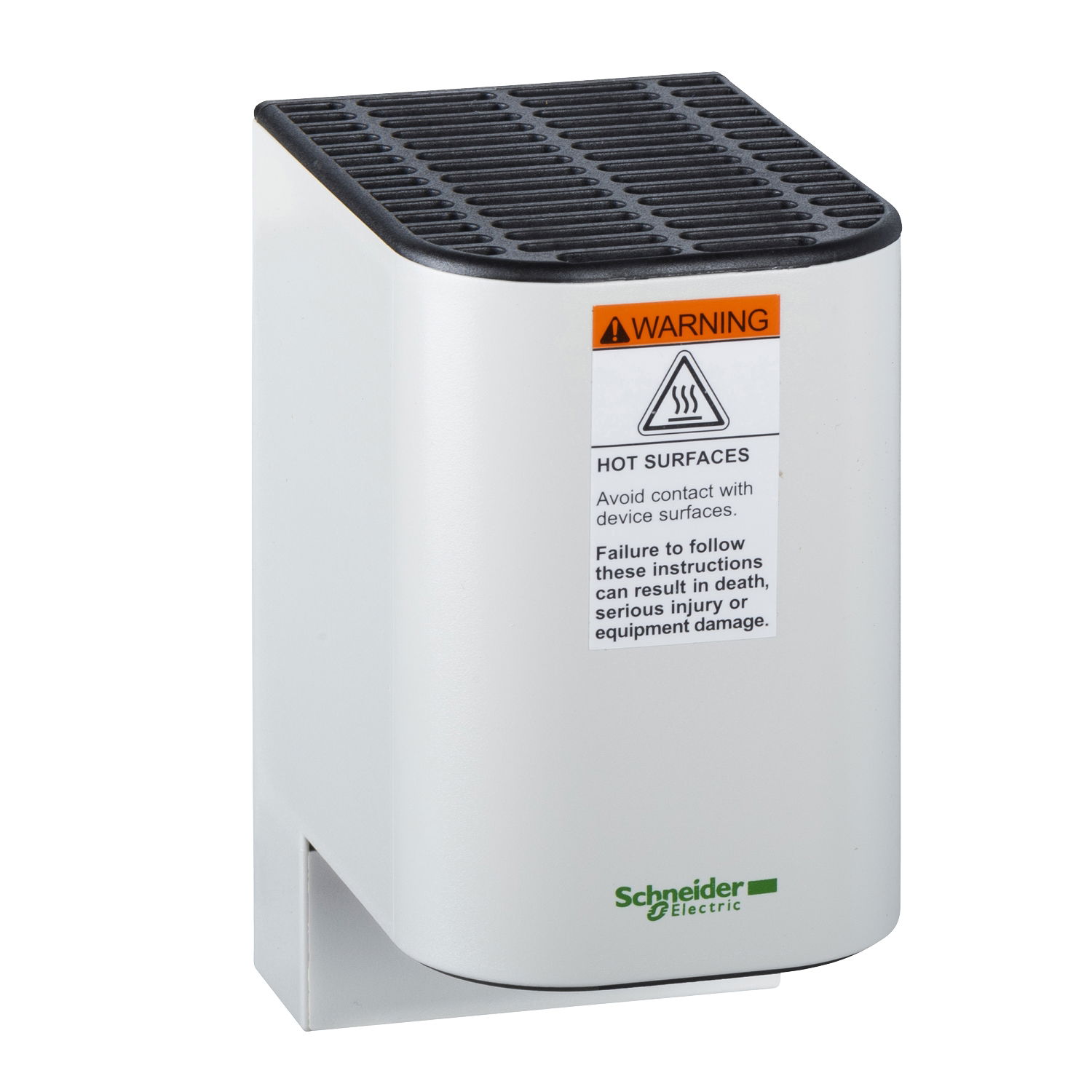

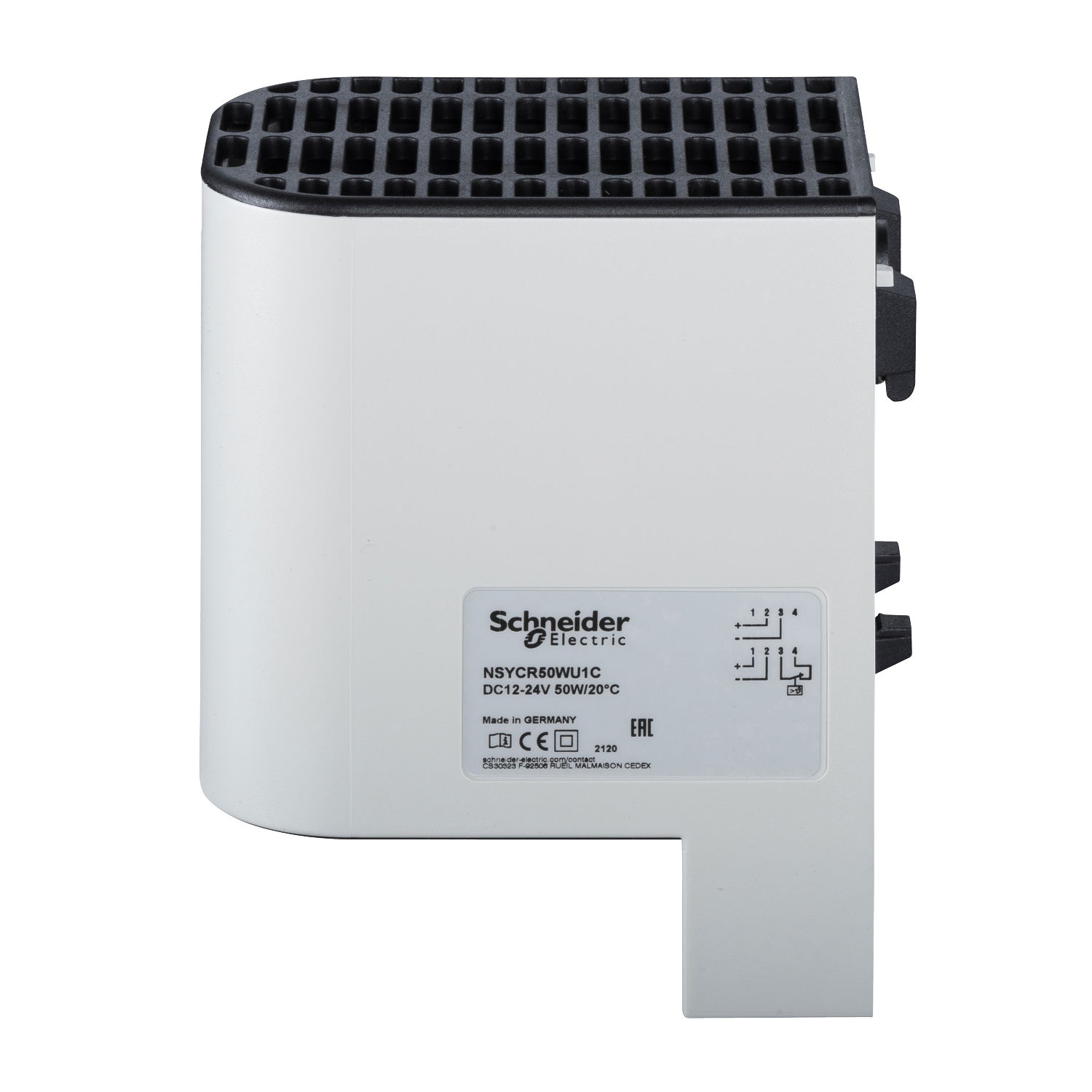

ClimaSys PTC heating resistance 50W, 12-24V insulate
1 / 4
ClimaSys PTC heating resistance 50W, 12-24V insulate
ClimaSys PTC heating resistance 50W, 12-24V insulate by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £96.62 excl. VAT. Voltimum+ members earn 12 points per unit.
ClimaSys PTC heating resistance insulate. 50W, 12-24V DC. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.
Product identifiers
SKU: NSYCR50WU1C
EAN: 3606480152283
GTIN: 3606480152283
MPN: NSYCR50WU1C
Loyalty points:
12
Price: £ 96.62 Excl. VAT
ETIM group
Specifications
| Depth | 90 mm |
| Width | 60 mm |
| Height | 110 mm |
| With fan | no |
| Rated power | 55 W |
| Voltage type | DC |
| Operating voltage DC | |
| Degree of protection (IP) | IP20 |
