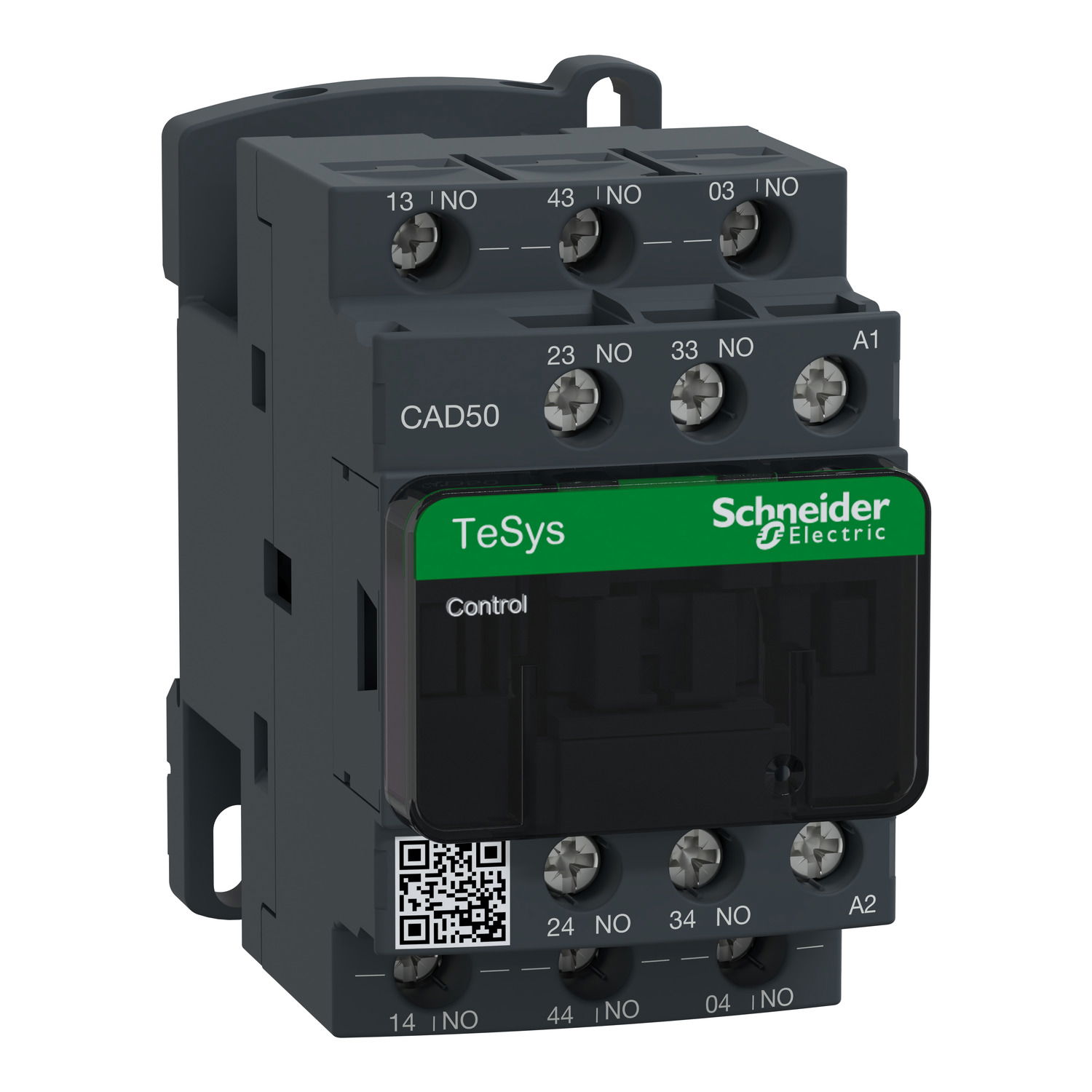

TeSys D control relay - 5 NO - <= 690 V - 230 V AC standard coil
1 / 5
TeSys D control relay - 5 NO - <= 690 V - 230 V AC standard coil
TeSys D control relay - 5 NO - <= 690 V - 230 V AC standard coil by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, RS Components, Rexel Group and 1 more. It is currently in stock at 3 of them. Trade prices range from £40.33 to £44.76 excl. VAT. Voltimum+ members earn 6 points per unit.
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 230V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), (RoHS/REACh).
Product identifiers
SKU: CAD50P7
EAN: 3389110403336
GTIN: 3389110403336
MPN: CAD50P7
Loyalty points:
6
Price range: £ 40.33 - £ 44.76 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 93 mm |
| Width | 45 mm |
| Height | 77 mm |
| Interface | no |
| Mounting method | DIN-rail/screw |
| With LED indication | no |
| Operating voltage DC | |
| Rated switch current | 0.005 A |
