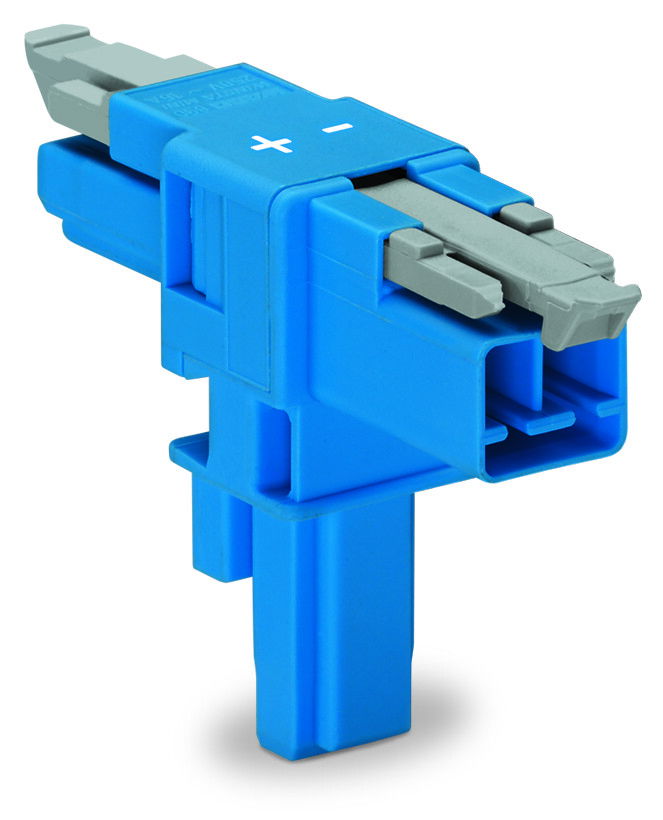

T-distribution connector 2-pole Cod. I blue

Name: T-distribution connector 2-pole Cod. I blue
Brand: Wago
SKU: 890-1617
Availability: InStock

T-distribution connector; 2-pole; Cod. I; 1 input; 2 outputs; 2 locking levers; blue

Product identifiers

SKU: 890-1617

EAN: 4045454547639

GTIN: 4045454547639

MPN: 890-1617

Price: £ 3.63 Excl. VAT

Specifications

Width	13.5
Height	34
Length	54
Fire load	0.00639
Halogen free	yes
Phase pickup	-
Rated current	16
Rated voltage	250
Number of poles	2
Type of locking	Integrated in plug-in connector
Contact material	CuSn
Housing material	Polyamide (PA)
Number of inputs	2
Pollution degree	3
Mechanical coding	yes
Number of outputs	4
Pole codification	+, -
Rated surge voltage	4
Type of distributor	T-distributor
Mounting possibility	No
Continuity resistance	1
Degree of protection (IP)	IP20
Rated current to luminaire	16
Surface treatment contacts	Tinned
Colour coding/contact insert	Blue
Type of integrated switching	None
RAL-number coding/contact insert	-
Colour of the separate adapter piece	-
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
