Schneider Electric

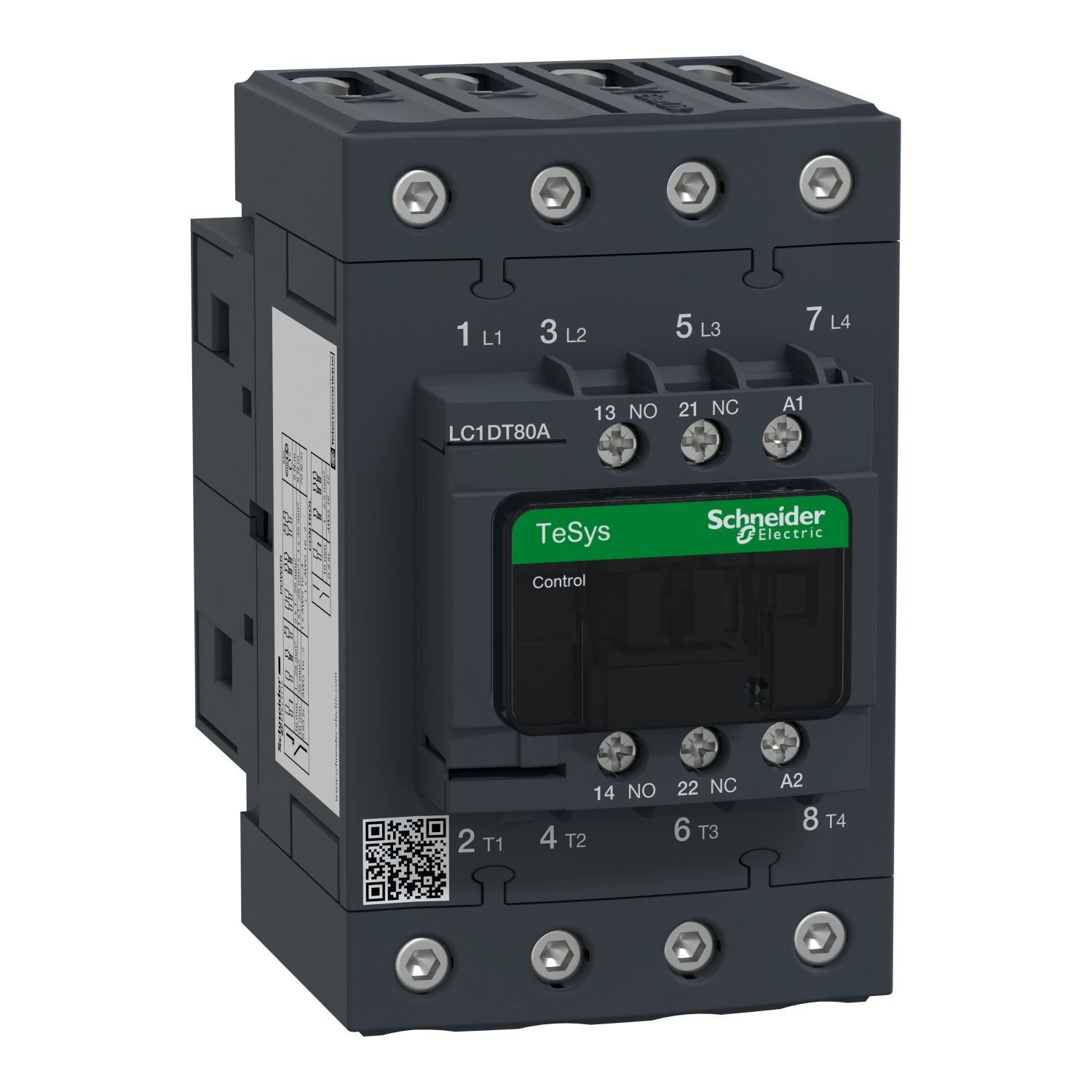

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 80 A - 120 V AC 50/60 Hz coil

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 80 A - 120 V AC 50/60 Hz coil by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £372.70 excl. VAT. Voltimum+ members earn 51 points per unit.

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 80A/440V AC-1. They can be used to create motor starters for almost any type of application. It provides a 120V 60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Power contacts have a 80A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.76 inches wide and 4.72 inches deep. It weighs 2.54 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Product identifiers

SKU: LC1DT80AG7
EAN: 3389119409421
GTIN: 3389119409421
MPN: LC1DT80AG7

Voltimum+ Loyalty Programme Loyalty points: 51

Price: £ 372.70 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth 120 mm
Width 70 mm
Height 122 mm
Modular version yes
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA -
Voltage type for actuating AC
Rated operation power at AC-3, 400 V -
Rated control supply voltage AC 50 Hz
Rated operation current Ie at AC-1, 400 V 80 A
Rated operation current Ie at AC-4, 400 V -
Number of normally open contacts as main contact 4
Number of auxiliary contacts as normally open contact 1
