NAB15-01

NAB15-01 by BG Electrical is listed by 2 electrical wholesalers on Voltimum UK, including RS Electrical Supplies and Lightsave. It is currently in stock at 1 of them. Trade price £7.88 excl. VAT. Voltimum+ members earn 1 point per unit.

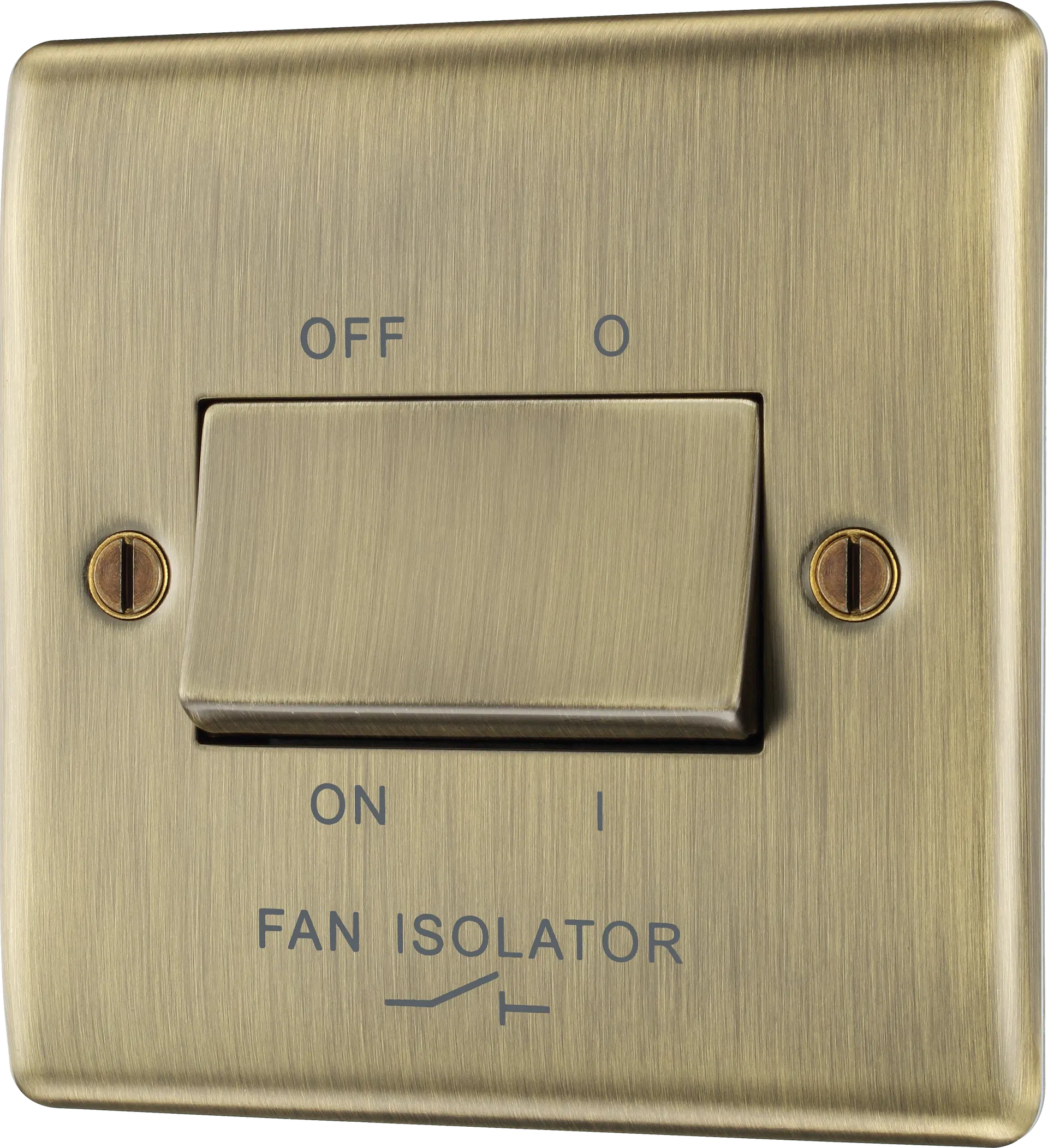

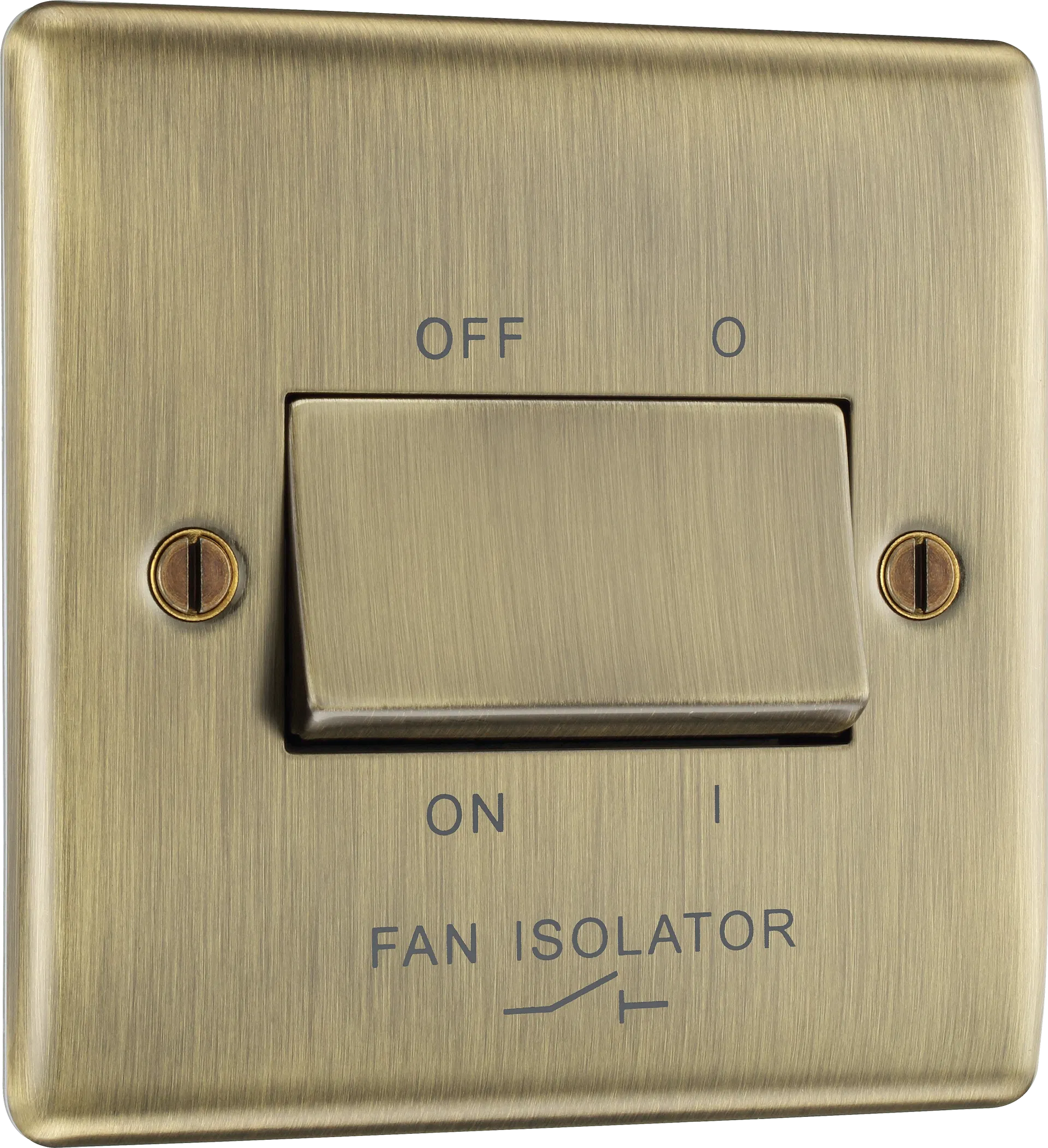

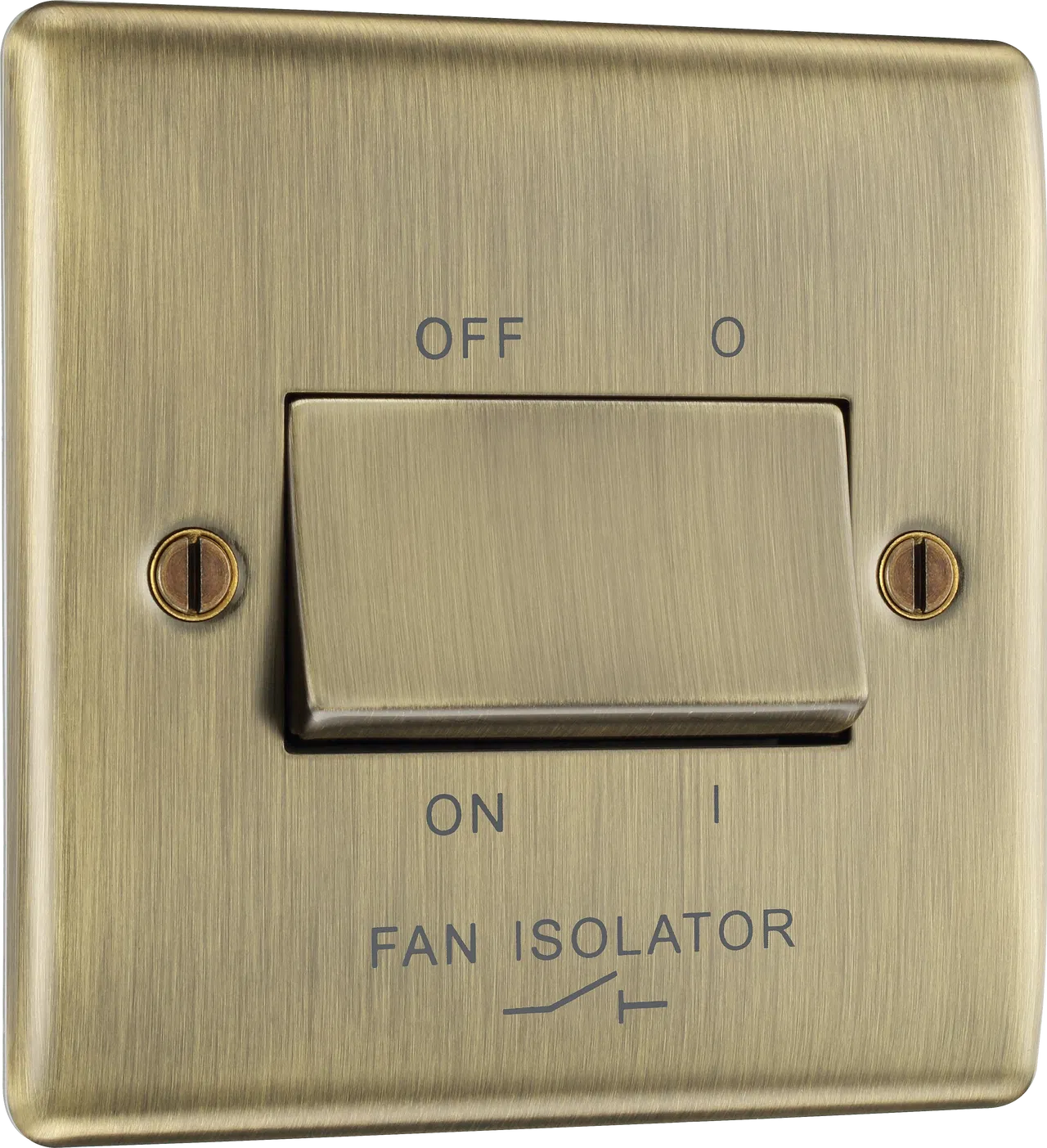

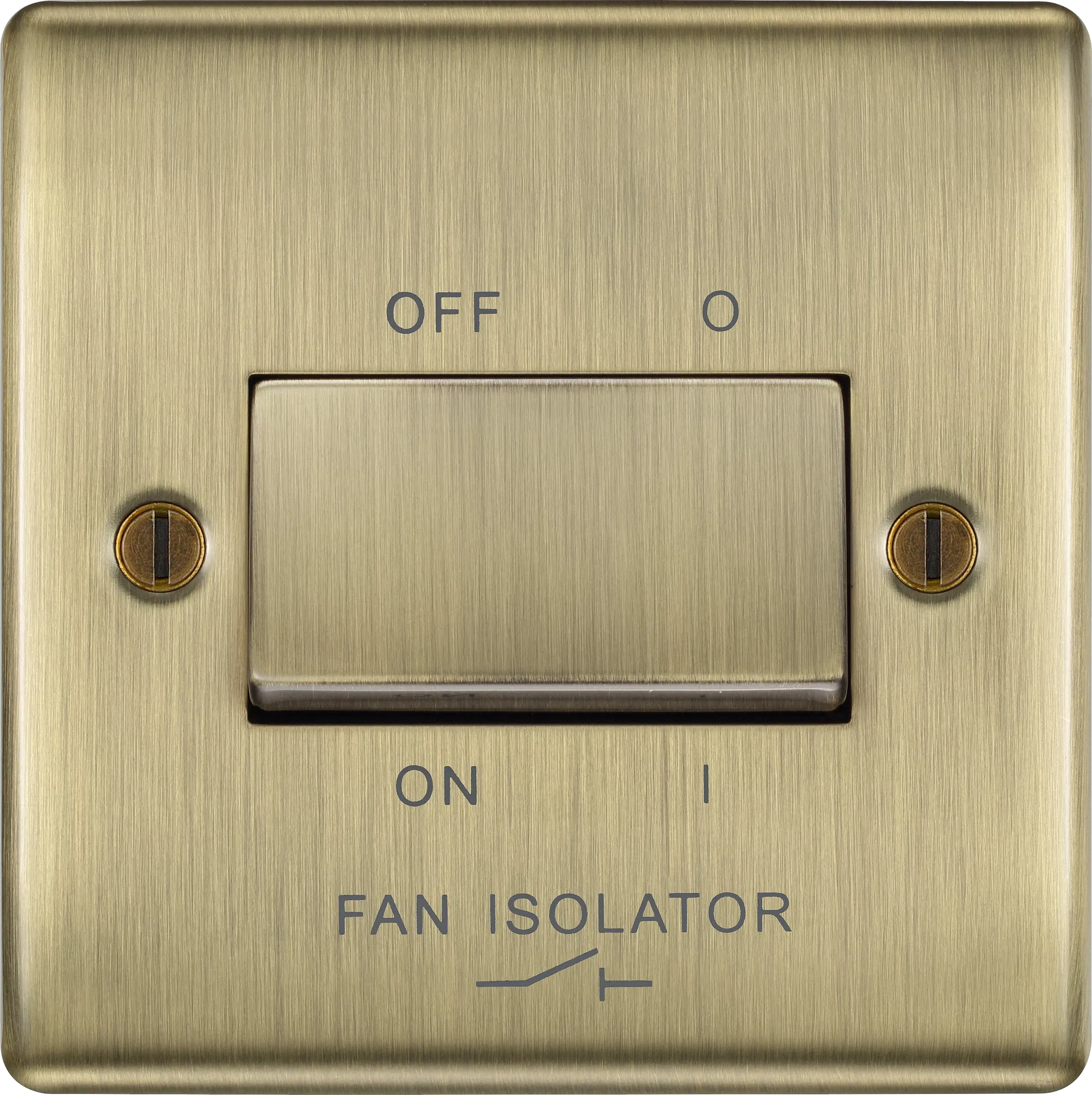

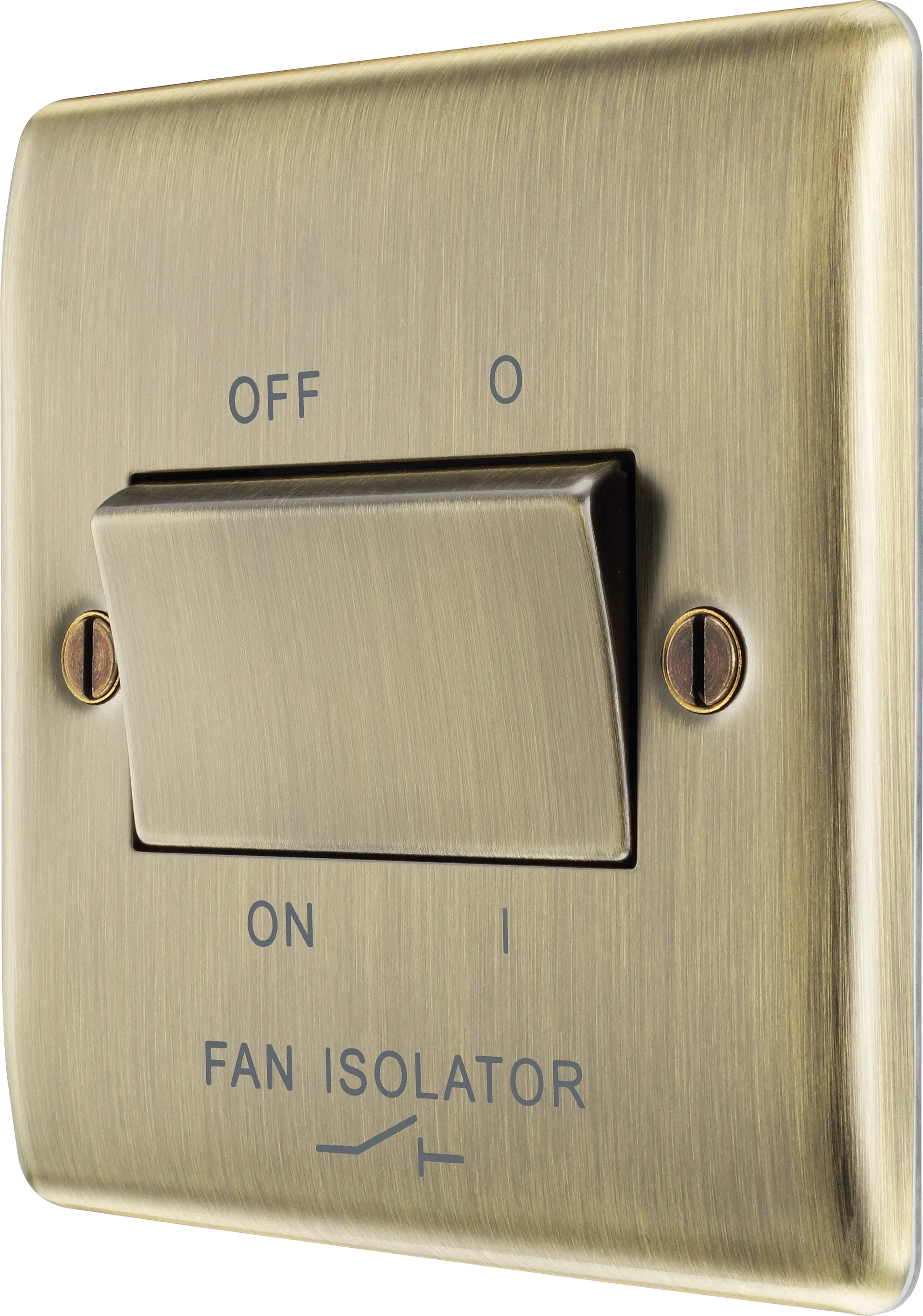

This antique brass finish 10A triple pole fan isolator switch from British General provides a safe and simple method of isolating mechanical fan units. This switch has a sleek and slim profile with softly rounded edges to add a touch of luxury to your decor.

10A Rated
Easy to install, supplied with fixing screws and installation instructions
Triple pole switching design however can be used for double pole applications if required
Captive, backed out terminal screws for fast installation and to prevent screw loss
Sleek and slim premium metal with softly rounded edges
No visible plastic around switch
Moisture control gasket, prevents tarnishing from new plaster
Minimum mounting box depth 25mm
Certified to BS60669-1

Product identifiers

SKU: NAB15-01

EAN: 5050765247962

GTIN: 5050765247962

MPN: NAB15-01

Loyalty points: 1

Price: £ 7.88 Excl. VAT

Specifications

General

Luckins TSI Code	435957524
Warranty (years)	25

Dimensions

Product HxWxD (mm)	86x86x23
Product Weight (kg)	0.113
Front Plate Height (mm)	6.9

Part Packaging

Package Pack Type	Eco Blister
Packed HxWxD	153x120x27
Package Hanging	Yes
Packed Gross Weight (kg)	0.136

Inner Pack Type	Roll Printed Box
Inner Quantity	5
Inner Height (mm)	127
Inner Width (mm)	92
Inner Depth (mm)	207
Inner Gross Weight (kg)	0.736

Outer Pack Type	Roll Printed Box
Outer Quantity	50
Outer Height (mm)	219
Outer Width (mm)	263
Outer Depth (mm)	473
Outer CBM (cu.m)	0.02724
Outer Gross Weight (kg)	7.679

Packing Plastic Weight (kg)	0.0114
Packing Plastic Type	PET/PETE Polyethylene terephthalate
TOTAL Paper Weight	0.0124
Paper - 1 Type	Paper
Paper - 1 Weight (kg)	0.004
Paper - 1 FSC or Other Approved	No
Paper - 2 Type	Card
Paper - 2 Weight (kg)	0.0084
Paper - 2 FSC or Other Approved	No
Paper - 2 Recycled Material Content (%)	70≤X＜100
TOTAL Plastic Weight	0.0114
Plastic - 1 Type	PET/PETE Polyethylene terephthalate
Plastic - 1 Weight (kg)	0.0114
Plastic - 1 OPRL Recyclable?	Yes
Plastic - 1 Recycled Material Content (%)	X≥30
Inner Packaging Weight (kg)	0.054
Inner Recycled Material Content (%)	70≤X＜100
Inner Paper Type	Flute
Outer Paper Type	Flute
Outer Packaging Weight (kg)	0.319
Outer Recycled Material Content (%)	70≤X＜100

Switched	Yes
Switch Type (Ways & Poles)	3 Pole
Anti-microbial Property	No
Front Plate Type	Nexus - Metal
Front Plate Material	Steel
Front Plate Material Thickness (mm)	0.8
Base Material	Polypropylene

Operating Voltage (V)	220-240
Frequency (Hz)	50-60
Current Rating (A)	10

General Colour	Antique Brass
Base Colour	Grey
Switch Style Type	Rocker
Address Marking Location	Package
Fixing Screws Colour	Antique Brass
Front Plate Colour	Antique Brass - RAL1012 (Lemon Yellow)
Switch Colour	Antique Brass - RAL1012 (Lemon Yellow)
Main Power Indicator	No
Switch Indicator Type	None
Light Reflective Value (%)	34.1
Anti-fingerprint Lacquer	No
Front Plate Marking	Yes
Switch Location Position	Wall
Printing Colour	Black

Minimum Box Depth (mm)	25
Fixing Centres (mm)	W-60.3
Fixing Screws Supplied	Yes

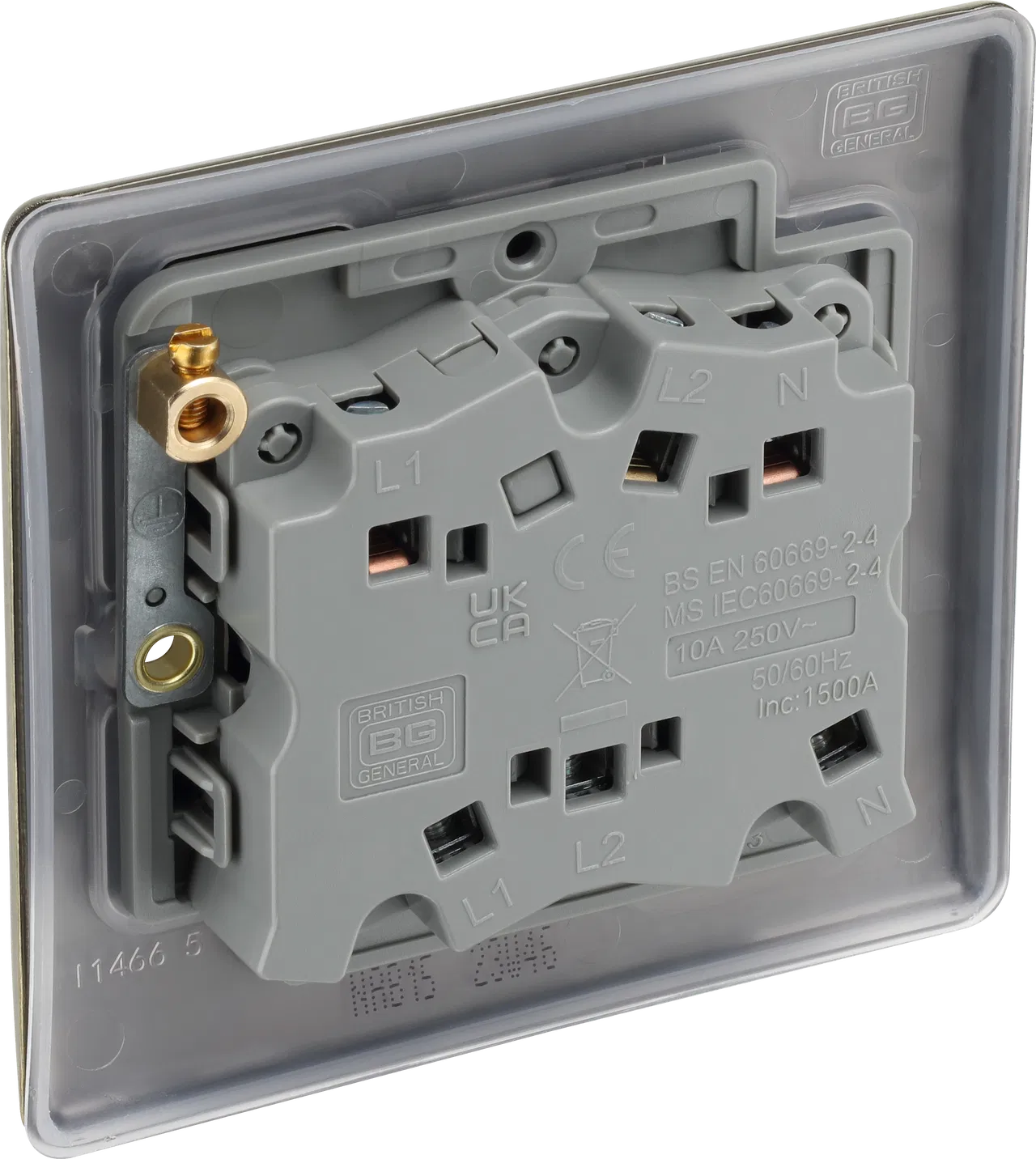

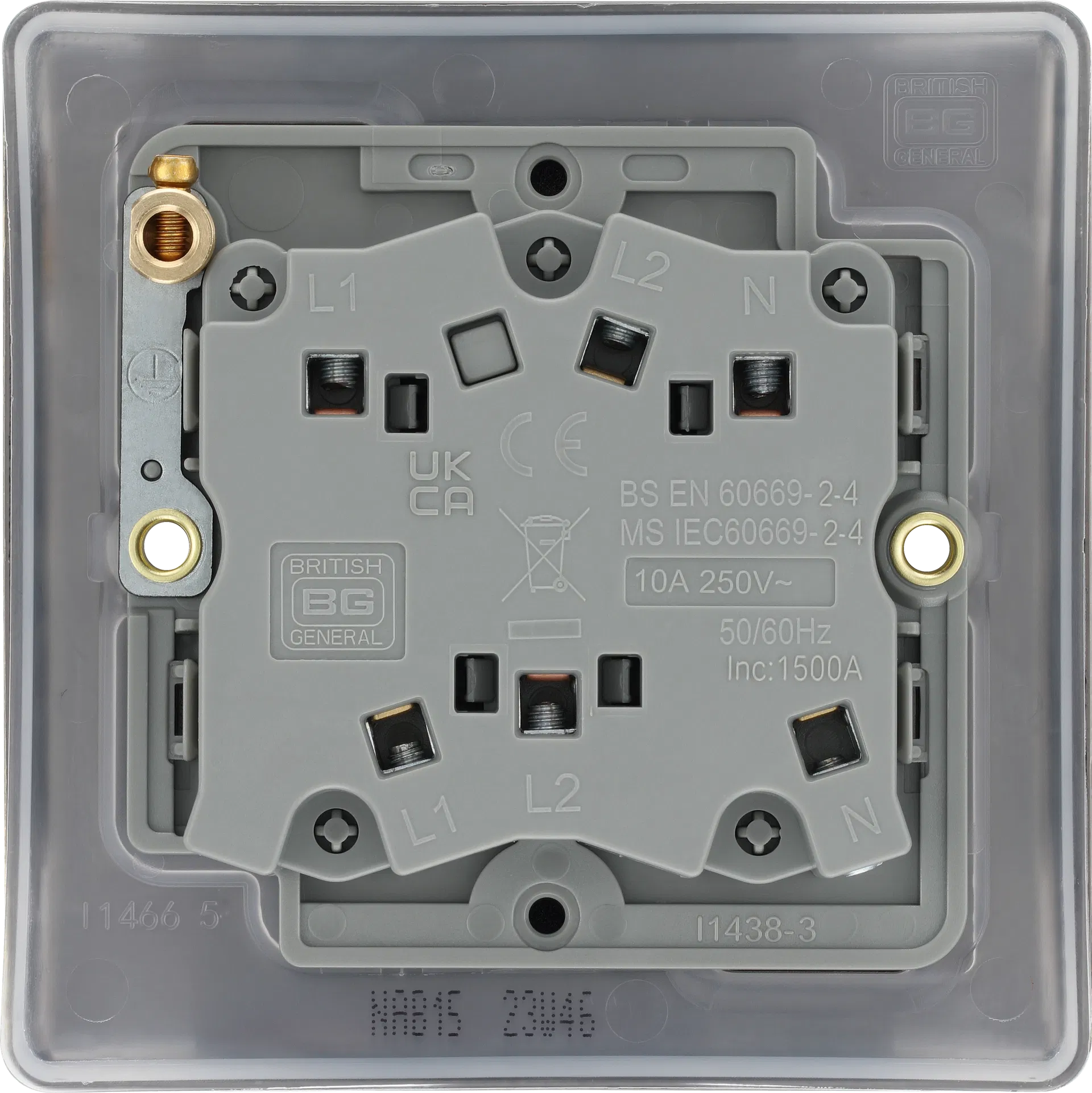

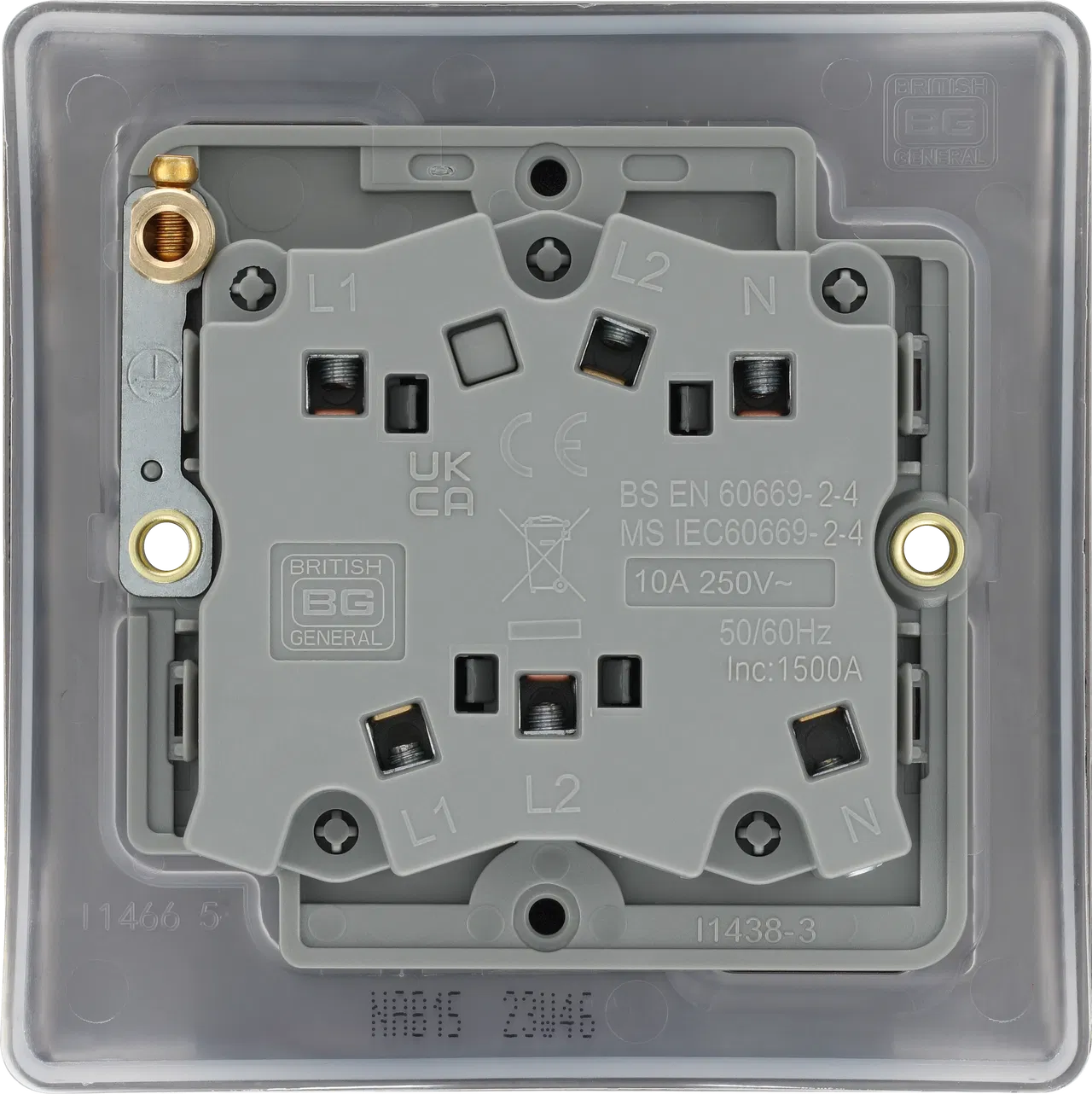

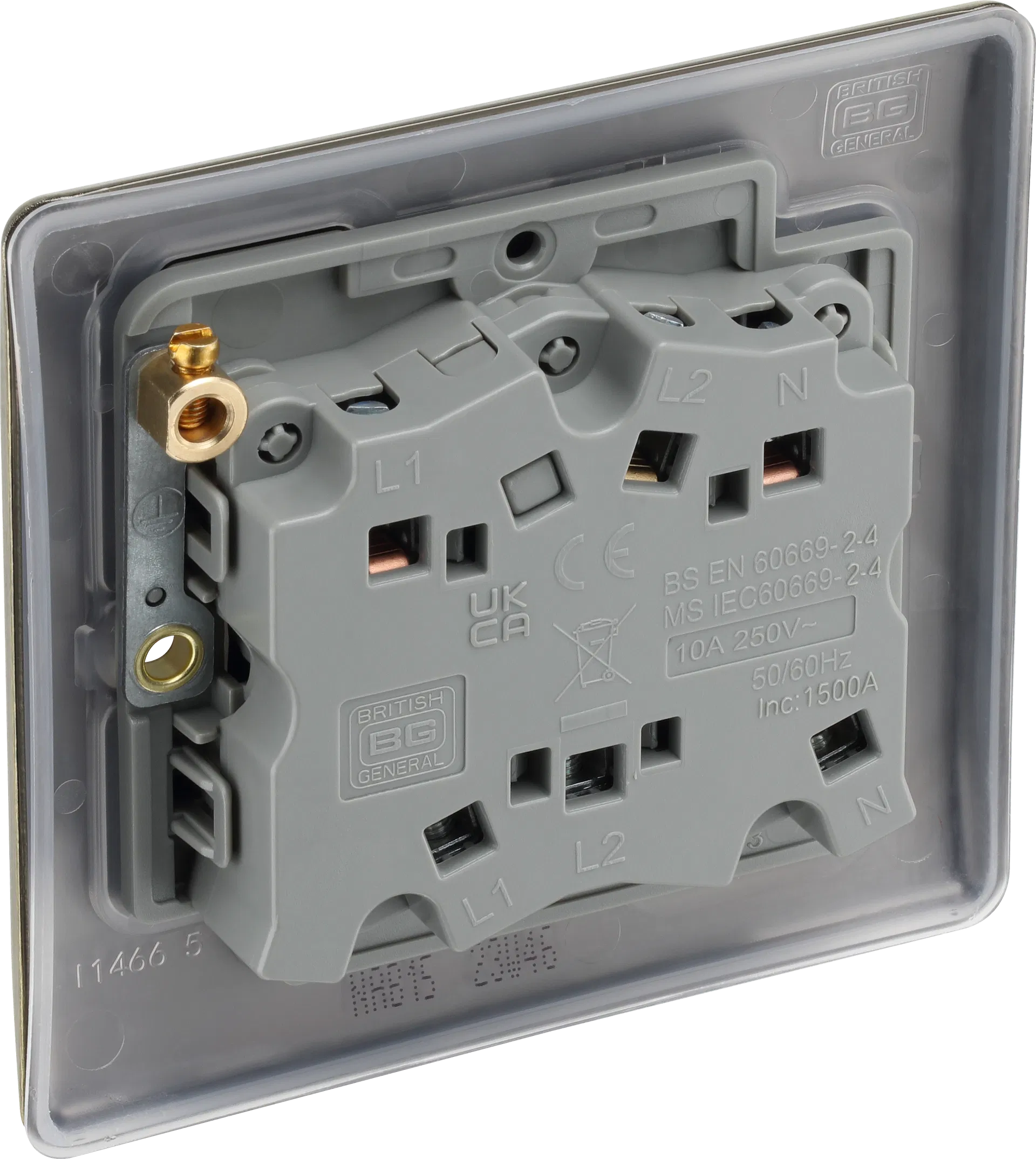

Terminal Capacity (mm²)	4 x 1.0mm²;4 x 2.5mm²;2 x 2.5mm²;1 x 4mm²
Backed-out Terminal Screws	Yes
Terminals with Colour Coding Print	No
Captive Terminal Screws	Yes
Number of Earth Terminals	1
Screw Caps	No

ASTA Licence	1075
Standard(s)	BS EN 60669-1:2018;BS EN 60669-2-1:2004+A12:2010;EN 60669-1:2018;EN 60669-2-1:2004+A12:2010
Directive(s)	GPSR - 2023/988 (EU) ;LVD - 2014/35/EU;LVD - UK SI 2016 NO. 1101;REACH - 1907/2006/EU;ROHS - 2011/65/EU;ROHS - UK SI 2012 NO. 3032
WEEE Group	2. Small household appliances

Pallet Dimensions	Industrie 1.2x1.0m
Commodity Code (EU)	8536508000
Pallet Quantity	40
Container Quantity 20ft	51400
Container Quantity 40ft	102800
Container Quantity 40ft HC	117450

Warranty Summary	BG Electrical are confident in the quality of our workmanship and materials the guarantee stated applies from the date of delivery. Please see our terms and conditions for more <a href=https://www.bgelectrical.uk/uk/support-and-compliance/terms-and-conditions-of-sale>details</a>
Product Marking Brand	British General
Product Brand Position	Rear
Fixing Screws Type	Countersunk M3.5x32mm
