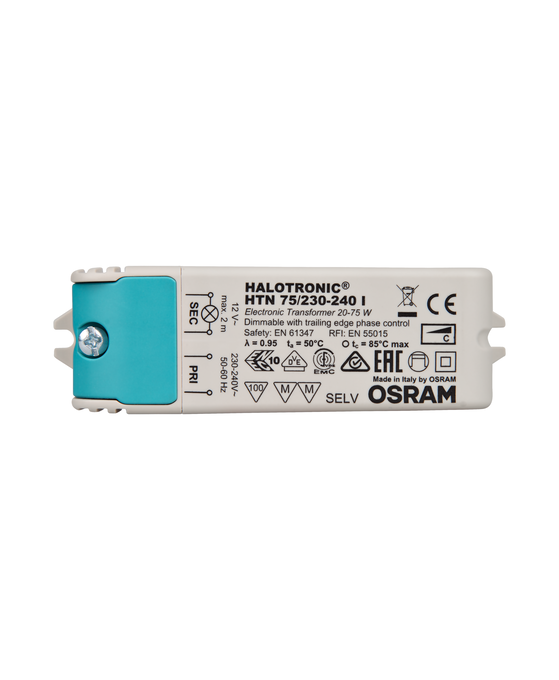

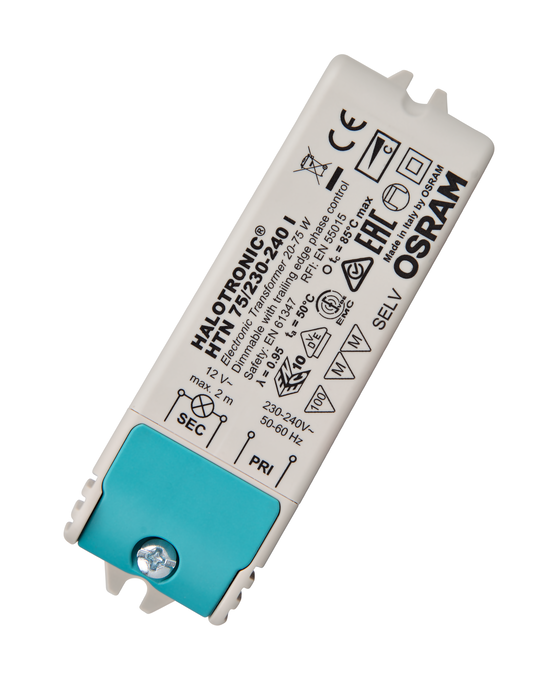

HTN 75/230…240 I
HTN 75/230…240 I
HTN 75/230…240 I by LEDVANCE is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £25.11 excl. VAT.
Product benefits
- Very low power loss thanks to high efficacy
- Strain relief suitable for different cable types (HTM)
- Suitable for space-critical installation thanks to compact functional design
- Extremely compact transformer for highly space-critical installation conditions (HTN)
- Protective operation throughout the entire partial-load range for long lamp life
Areas of application
- Effect and accent lighting
- Living rooms
- Object lighting
- Conference rooms
- Restaurants
- Recessed and surface-mounted furniture luminaires
- Shop lighting
- Event rooms
Product features
- Line frequency: 50 60 Hz
- RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
- Safety: to EN 61347
- Short-circuit protection, overload protection, overtemperature protection: electronically reversible
- Electrical isolation between the primary side and the secondary side
- Dimmable on the leading edge (without HTN) and trailing edge
Product identifiers
Price: £ 25.11 Excl. VAT
Categories
Specifications
Electrical data
| Nominal wattage | 79.00 W |
| Nominal voltage | 230…240 V |
| Nominal output voltage | 11.5 V; 11.7 V 1) |
| Input voltage range | 230…240 V |
| Input voltage AC | 207…254 V |
| Inrush current | 0.37 A 2) |
| Mains frequency | 50/60 Hz 3) |
| Power factor λ | 0.95 4) |
Documents
Documents and certificates
Data sheet
Documents And Certificates
User instruction / safety instructions – 334738_HALOTRONIC – Manual
User instruction / safety instructions – 334136_Technical guide - HALOTRONIC for low-voltage halogen lamps
User instruction / safety instructions – 590733_EAC - HTL / HTM / HTN
Certificates – 334964_ENEC-Marks approval
Certificates – 504178_EAC HT family
Certificates – 334962_EMC-Marks approval
Certificates – HALOTRONIC EMC 134590 080720
