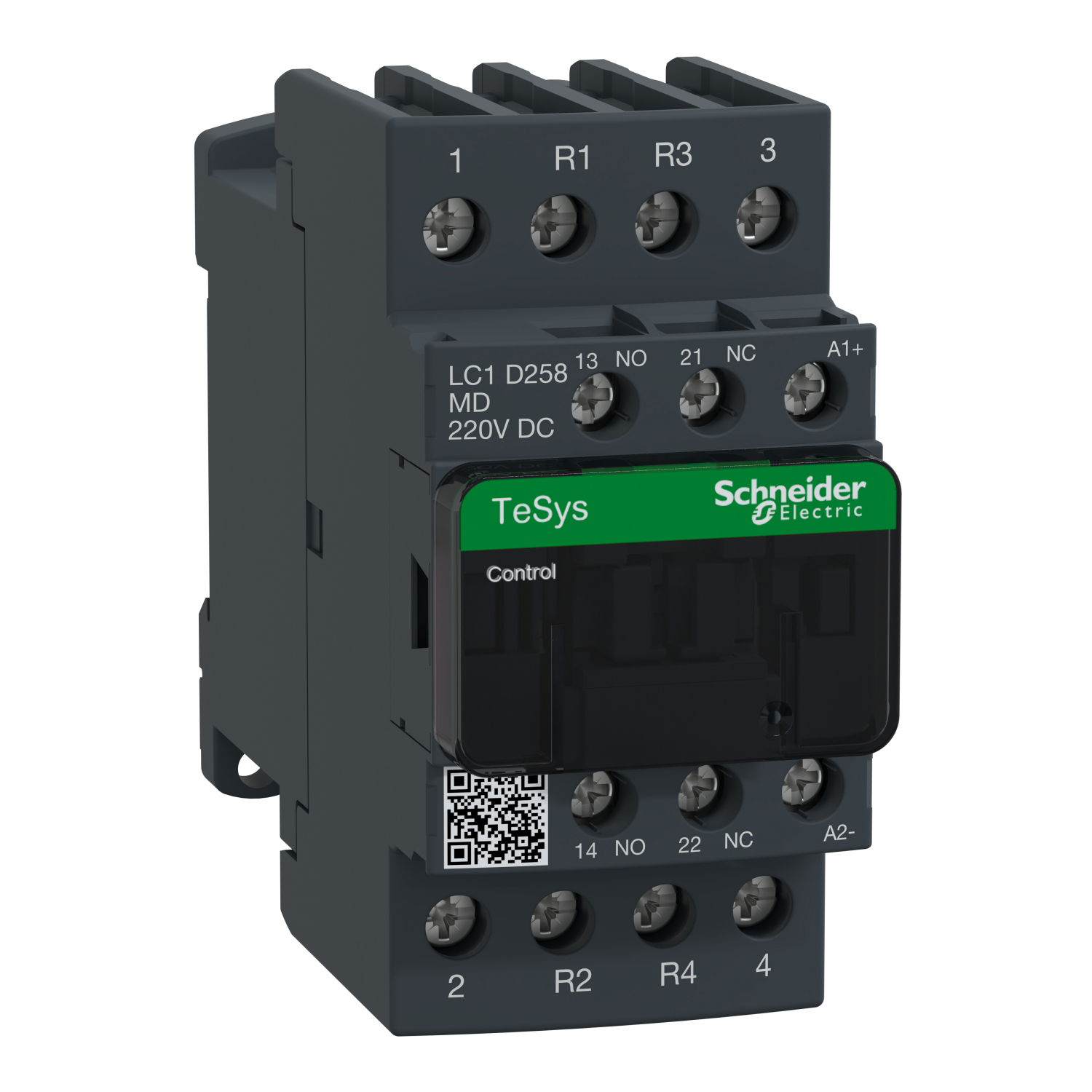

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 40 A - 220 V DC coil

Name: TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 40 A - 220 V DC coil
Brand: Schneider Electric
SKU: LC1D258MD
Availability: InStock

TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 40 A - 220 V DC coil by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £225.23 to £227.48 excl. VAT. Voltimum+ members earn 30 points per unit.

TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 40A/690V AC-1. It provides a 220V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Product identifiers

SKU: LC1D258MD

EAN: 3389110432749

GTIN: 3389110432749

MPN: LC1D258MD

Loyalty points: 30

Price range: £ 225.23 - £ 227.48 Excl. VAT

Specifications

Depth	107 mm
Width	45 mm
Height	91 mm
Modular version	no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA	-
Voltage type for actuating	DC
Rated control supply voltage DC
Rated operation power at AC-3, 400 V	-
Rated operation power at AC-4, 400 V	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current Ie at AC-1, 400 V	40 A
Rated operation current Ie at AC-3, 400 V	-
Rated operation current Ie at AC-4, 400 V	-
Type of electrical connection of main circuit	Screw connection
Number of normally open contacts as main contact	2
Number of normally closed contacts as main contact	2
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
