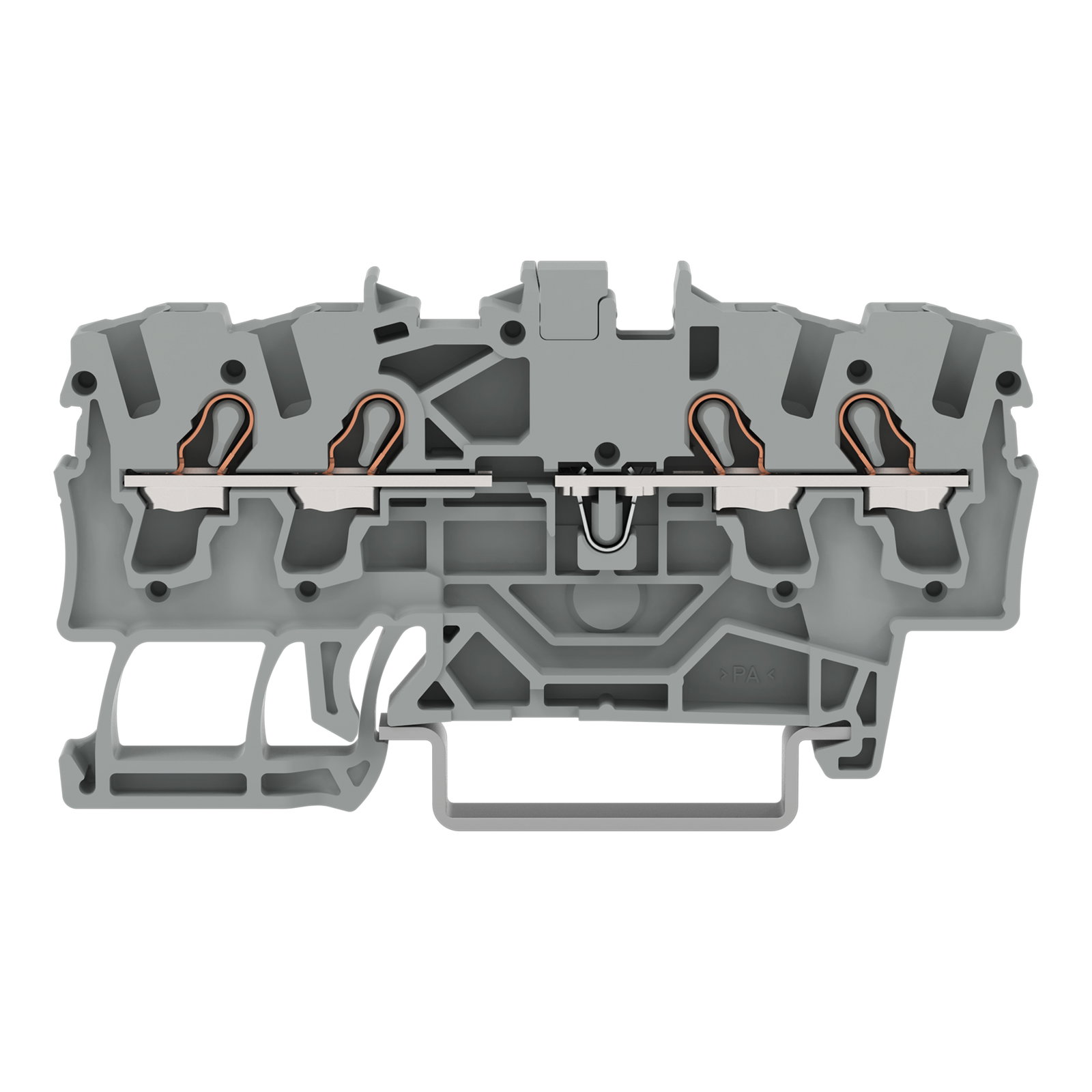

Basic housing gray

Name: Basic housing gray
Brand: Wago
SKU: 2002-1411
Price: 193.00 GBP
Availability: OutOfStock

Basic housing; gray

Product identifiers

SKU: 2002-1411

EAN: 4055143302890

GTIN: 4055143302890

MPN: 2002-1411

Loyalty points: 4 (x100)

Price: £ 193.00 Excl. VAT

Specifications

Depth	32.9
Width	5.2
Colour	Grey
Height	69.9
EFNA0008	V0
Rated voltage	250
Mounting method	DIN rail (top hat rail) 35 mm
Number of levels	1
Rated current In	24
Operating temperature	105 - 105
Closing plate required	yes
Material insulation body	Thermoplastic
Internally connected stages	no
Explosion-tested version 'Ex e'	no
Suitable for conductor material	Copper
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per level	4
Connectable conductor cross section solid-core	0.75 - 4
Connectable conductor cross section multi-wired	0.25 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve	0.75 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 4
