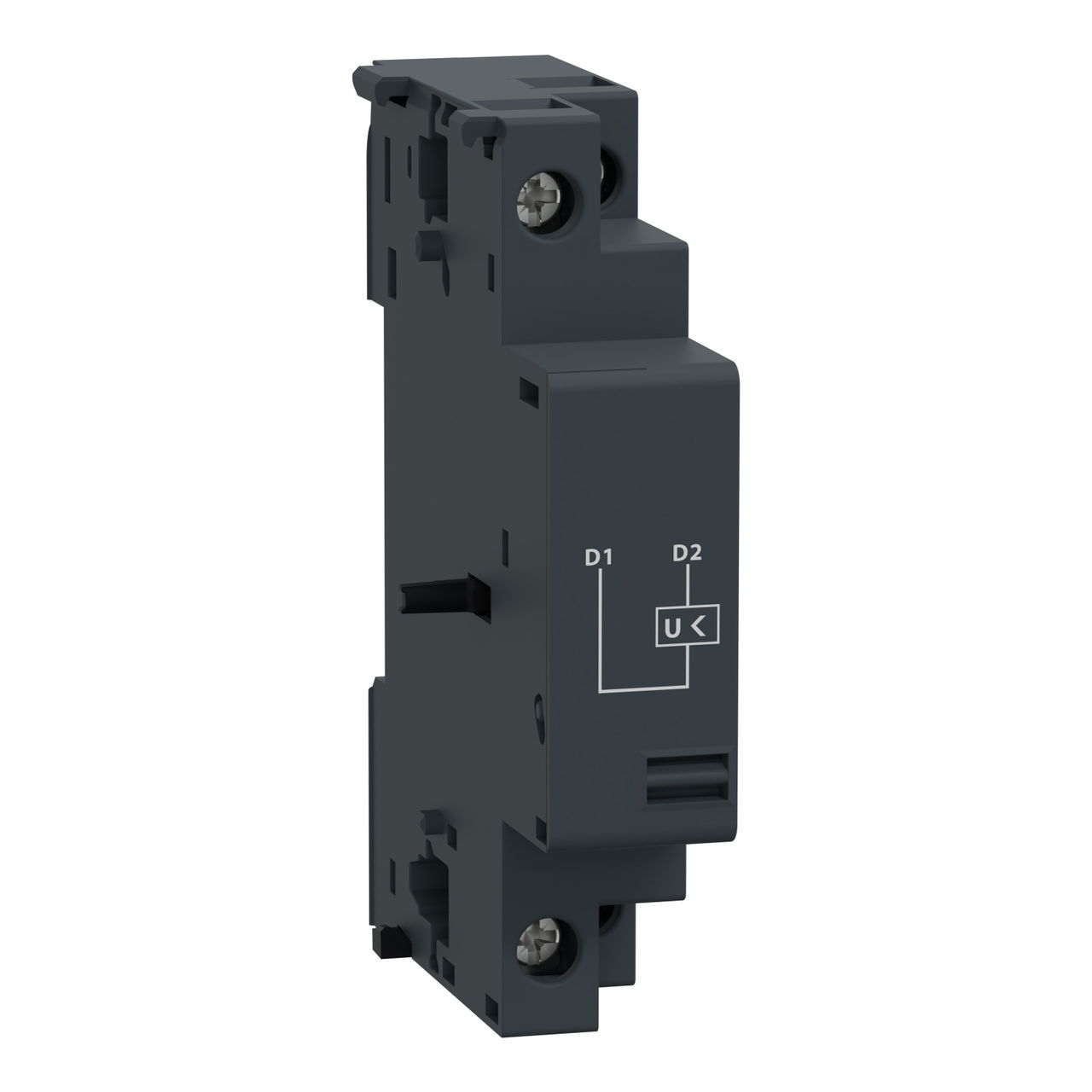

TeSys GV2 & GV3 - undervoltage trip - 220...240 V AC 50 Hz

Link copied
SKU
EAN
GTIN
MPN

TeSys GV2 & GV3 - undervoltage trip - 220...240 V AC 50 Hz by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 4 of them. Trade prices range from £21.00 to £34.22 excl. VAT. Voltimum+ members earn 4 points per unit.

TeSys GV electrical trip, MN undervoltage release, 220-240V AC 50Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC),

Voltimum+ Loyalty Programme Loyalty points: 4

Price range: £ 21.00 - £ 34.22 Excl. VAT

Specifications

Delayed no
Voltage type for actuating AC
Suitable for overload relay no
Type of electric connection Screw connection
Suitable for off-load switch no
Rated control supply voltage DC
Suitable for motor safety switch no
Suitable for power circuit breaker yes
Rated control supply voltage AC 60 Hz
Number of contacts as normally open contact 0
