Schneider Electric
Popularity Top 60% More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

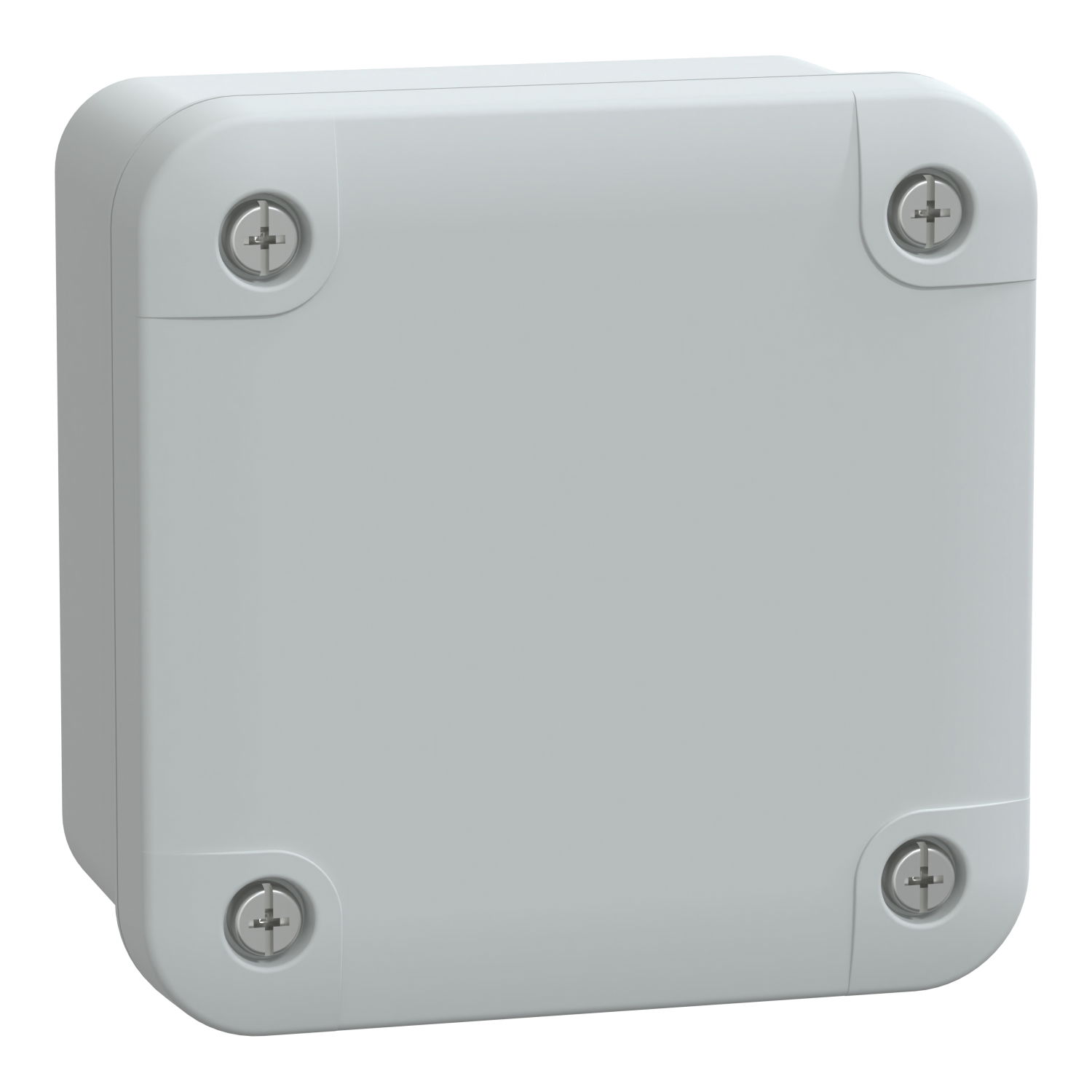

PC box IP66 IK08 RAL7035 Int.H80W80D65 Ext.H89W89D51 opaque PC cover H10

Link copied
SKU
EAN
GTIN
MPN

PC box IP66 IK08 RAL7035 Int.H80W80D65 Ext.H89W89D51 opaque PC cover H10 by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £7.28 to £10.21 excl. VAT. Voltimum+ members earn 1 point per unit.

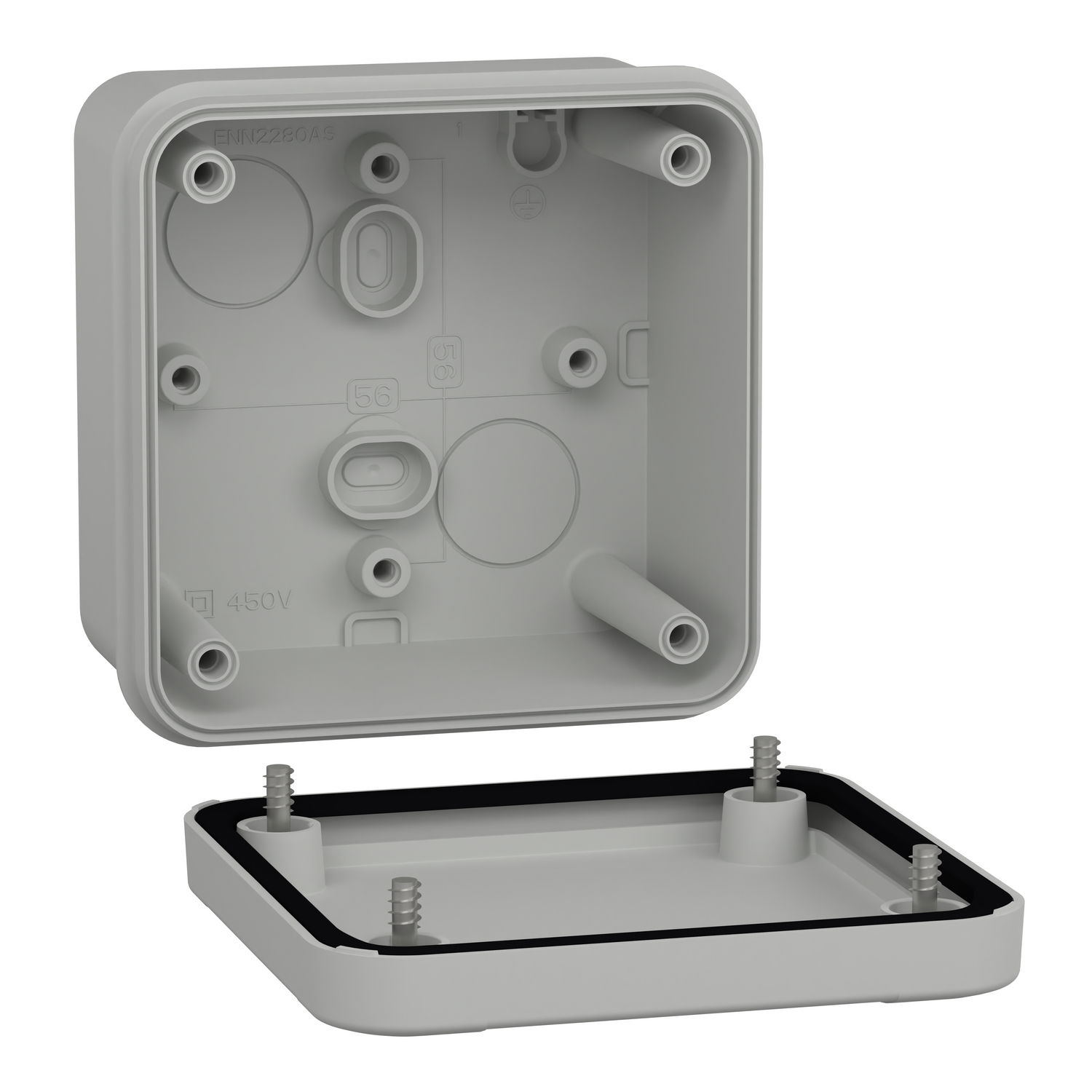

Thalassa TBP industrial PC box with opaque PC cover H10. Int is 80 x 80 x 65 mm. Ext is 89 x 89 x 51 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 7.28 - £ 10.21 Excl. VAT

Specifications

Depth 54 mm
Width 89 mm
Colour Grey
Height 89 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 47 mm
Built-in depth -
Impact strength IK08
Housing material Plastic
Circuit integrity None
Extension possible no
With mounting plate no
Transparent cover/door no
Suitable for outdoor use yes
Degree of protection (NEMA) 4X
Material plate thickness cabinet -
Material plate thickness door/cover -
Number of openings for flange plates -

Documents

Declaration of Conformity (Sustainability)

NSYTBP885 REACh Regulation

Open

Instruction sheet

PanelSeT TBP TBS - Insulated Industrial Box - Instruction sheet

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYTBP885 EU RoHS Directive

Open

Declaration of conformity

Declaration of Conformity NSYTBS and NSYTBP ranges

Open

Environmental Disclosure

PanelSeT TBP

Open

Circularity Profile

EoLI-PanelSeT TBP

Open
