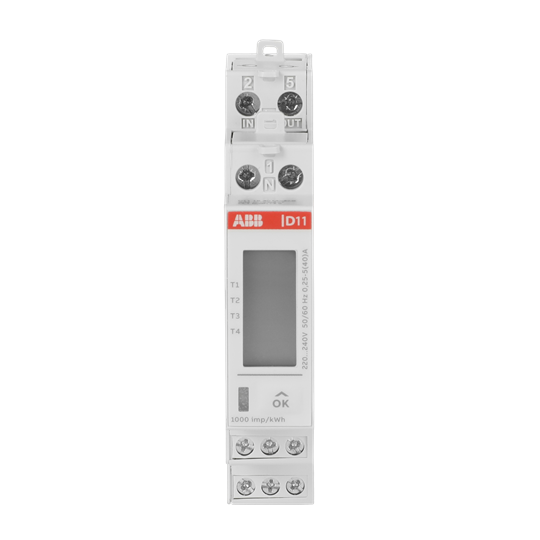

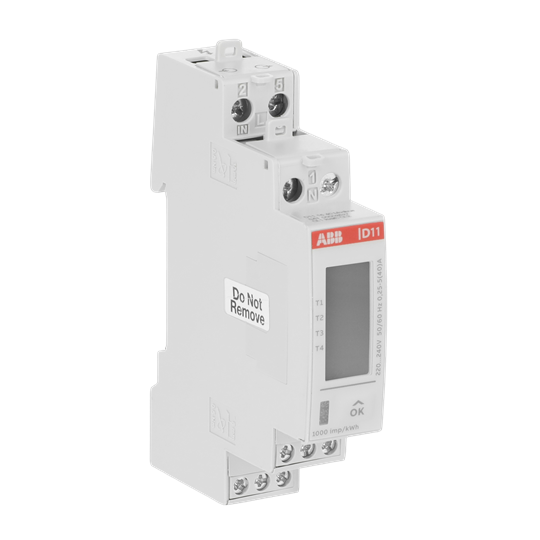

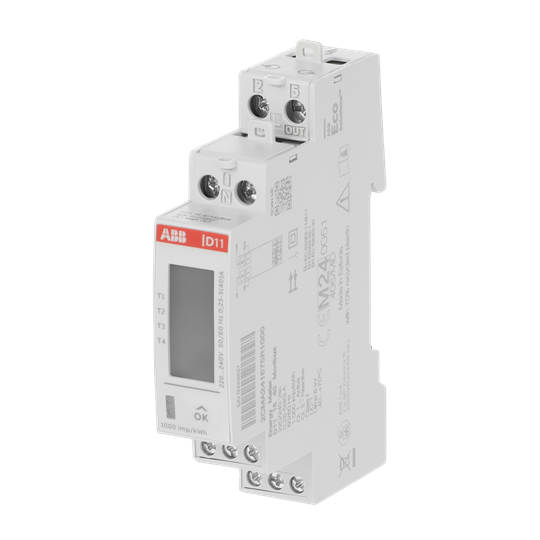

Energy meter '15', Modbus RTU, 1-phase, 40 A

Energy meter '15', Modbus RTU, 1-phase, 40 A

D11 15 40 Modbus is a single phase energy meter with Modbus RTU, direct connection up to 40 A, four quadrant metering, class 1 accuracy for active energy according to IEC 62053-21 and class 2 for reactive energy according to IEC 62053-23, one digital input and one digital output, only one DIN module in width and housing in recycled plastic.

Product identifiers

SKU: 2CMA241675R1000
EAN: 8012542635758
GTIN: 8012542635758
MPN: D11 15 40 Modbus

Voltimum+ Loyalty Programme Loyalty points: 11

Price: £ 113.82 Excl. VAT

Specifications

Depth 65
Model Direct measurement
Width 17.5
Height 92
Approval -
Frequency
Pole type Single phase
Calibrated -
Pulse type S0
Tariff type Two-tariff
Suitable for -
Accuracy class B
With lock code yes
Mounting method DRA (DIN-rail adapter)
Type of interface Modbus
Max. current (Imax) 40
Nominal current (In) 40
Nominal voltage (Un) N-L
Degree of protection (NEMA) -
Number of positions total (counter) 6
