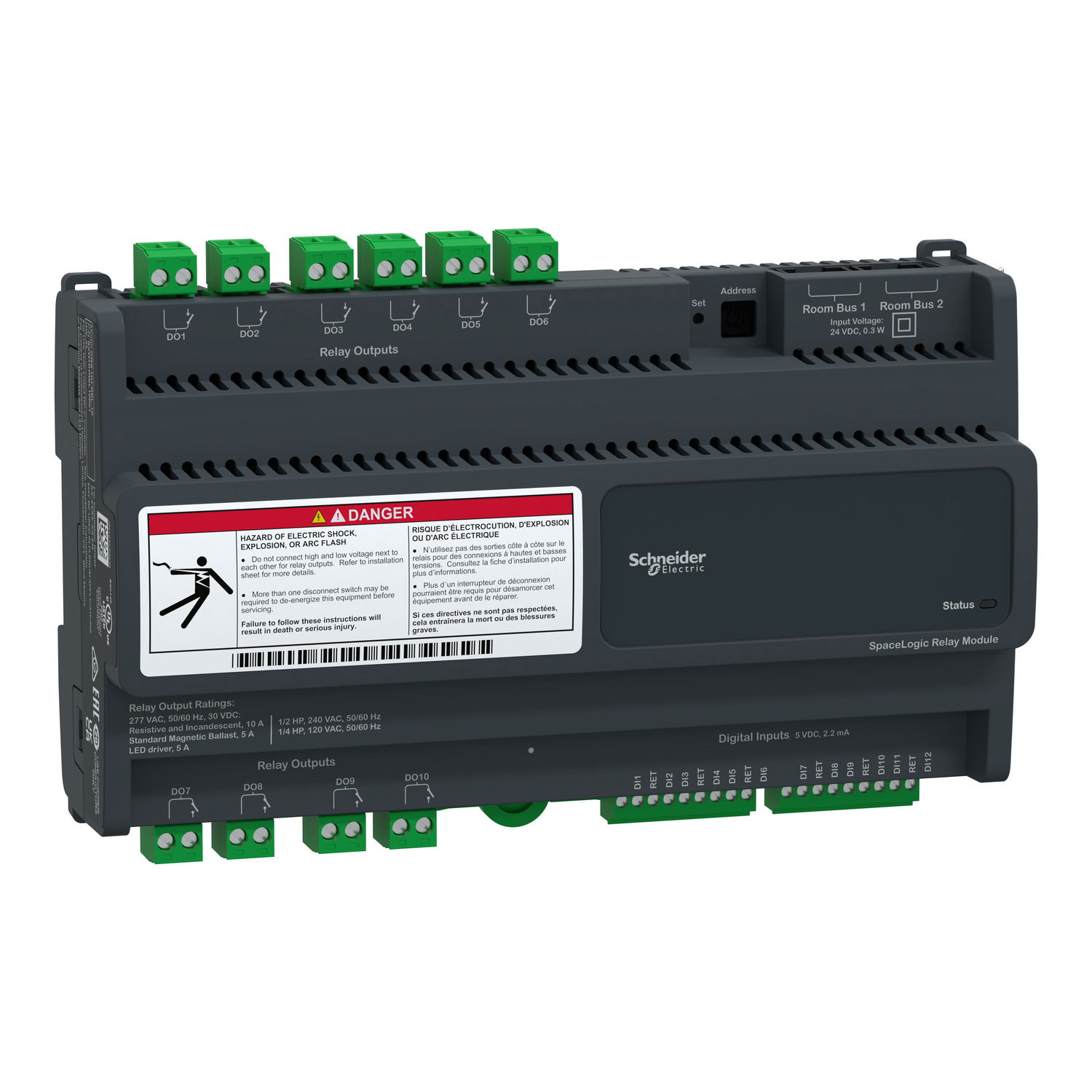

SpaceLogic room controller expansio 10 channel relay module, 10 relay outputs, 12 digital inputs

Link copied
SKU
EAN
GTIN
MPN
SpaceLogic CRS-HH-REL-10 is a 10 Channel Relay module and is part of the EcoStruxure Connected Room Solution. It provides superior lighting and blind control in both hotels and commercial buildings applications. It is well suited for a wide range of LED lights by high inrush current capability. It supports blind motors operating with high or low voltage. The relay module features 12 digital inputs for more flexibility of different applications with in-wall switches or sensors. Mechanical dimensions are 110 mm in height (4.3 in), 198 mm in width (7.8 in) and 64 mm in depth (2.5 in). The CRS-HH-REL-10 relay module is certified with UL 2043 for plenum applications. The installation of the device can be DIN rail or flat surface. Mechanical dimensions are 110 mm in height (4.3 in), 198 mm in width (7.8 in) and 64 mm in depth (2.5 in). Terminal for relay outputs is 10 x 2-pin screw terminal block and terminal for digital inputs is 2 x 9-pin screw terminal block. Maximum inrush current is maximum 165 A inrush current (<20 ms) per output and maximum 800 A inrush current (<200 μs) per output. No extra power supply is required for the 10 Channel relay module that through RPC’s room bus port. The installation of the device can be DIN rail or flat surface. No extra power supply is required for the 10 Channel relay module that through RPC’s room bus port. The installation of the device can be DIN rail or flat surface.

Voltimum+ Loyalty Programme Loyalty points: 47

Price: £ 280.00 Excl. VAT

Specifications

Depth -
Width -
Height -
Contact type -
Smart control yes
Output voltage -
Supply voltage -
Max. contact load -
Reception frequency -
Suitable for cooling no
Max. power per channel -
Number of channels/zone -
Connection for external antenna no
Networkable via radiografic (standard) no

Documents

Declaration of Conformity (Sustainability)

SXWHHREL10001 REACh Regulation

Open

Instruction sheet

SpaceLogic™ CRS-HH-REL-10 Installation Sheet

Open

Product data sheet

Open

Declaration of Conformity (Sustainability)

SXWHHREL10001 EU RoHS Directive

Open

Declaration of conformity

CE-DOC-000080-01 SpaceLogic CRS 10 Relay Module Declaration of conformity

Open

Environmental Disclosure

PEP SpaceLogic RP-C-EXT-DALI-M-PD module

Open

Circularity Profile

EoLI SpaceLogic RP-C-EXT-DALI-M-PD module

Open

CAD

SpaceLogic CRS-HH-REL-10 3D-simplified CAD file

Open
