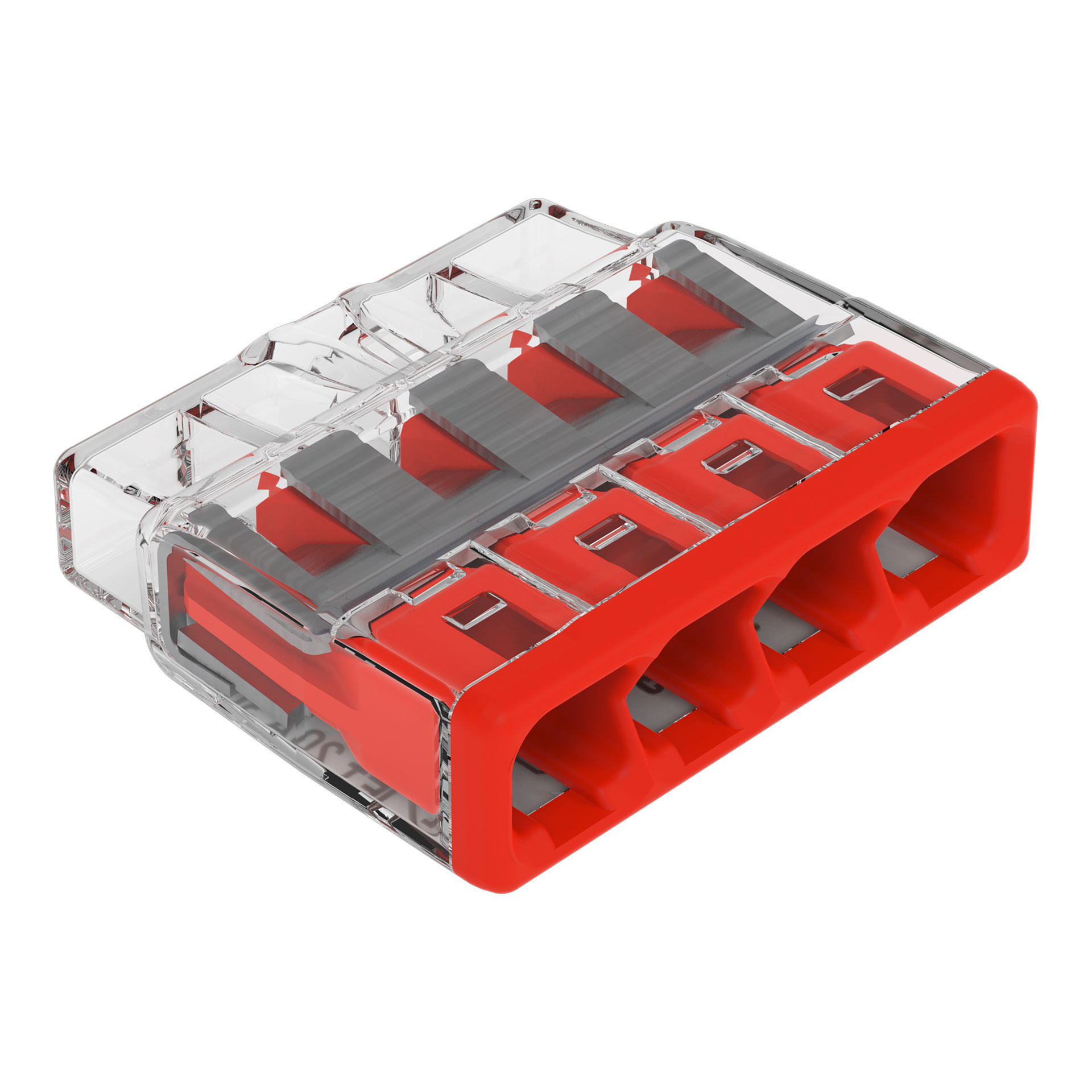

PUSH WIRE® splicing connector for solid and stranded conductors max. 4 mm² transparent
PUSH WIRE® splicing connector; for solid and stranded conductors; max. 4 mm²; 4-conductor; transparent housing; red cover; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Product identifiers
SKU: 2773-404
EAN: 4055143918985
GTIN: 4055143918985
MPN: 2773-404
Loyalty points:
42
Price range: £ 0.23 - £ 0.44 Excl. VAT
Features
|
Colour
|
Colourless
|
|
AWG-range
|
12 - 20
|
|
Transparent
|
yes
|
|
Cable diameter
|
1.6 - 2
|
|
Nominal current
|
32
|
|
Nominal voltage
|
450
|
|
With operation lever
|
no
|
|
Nominal cross section
|
0.75 - 4
|
|
Number of clamp positions
|
4
|
|
Suitable for solid conductors
|
yes
|
|
Suitable for flexible conductors
|
no
|
|
Suitable for multi-wire conductors
|
yes
|
|
Conductor cross section solid (solid, stranded)
|
0.75 - 4
|
|
Conductor cross section flexible (fine-strand) with cable end sleeve
|
|
