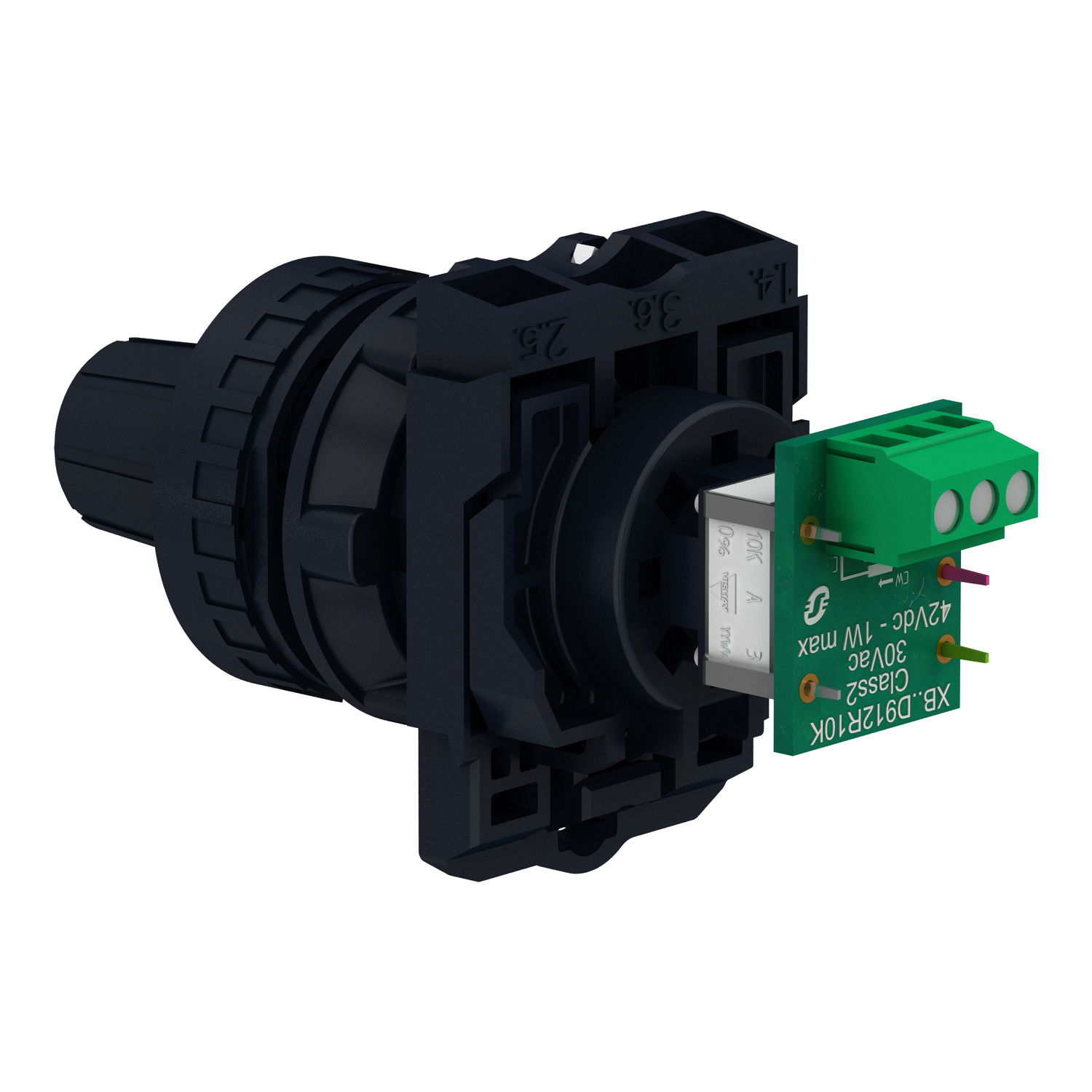

Complete potentiometer, plastic, Ø22, 10K – Image 2 of 8

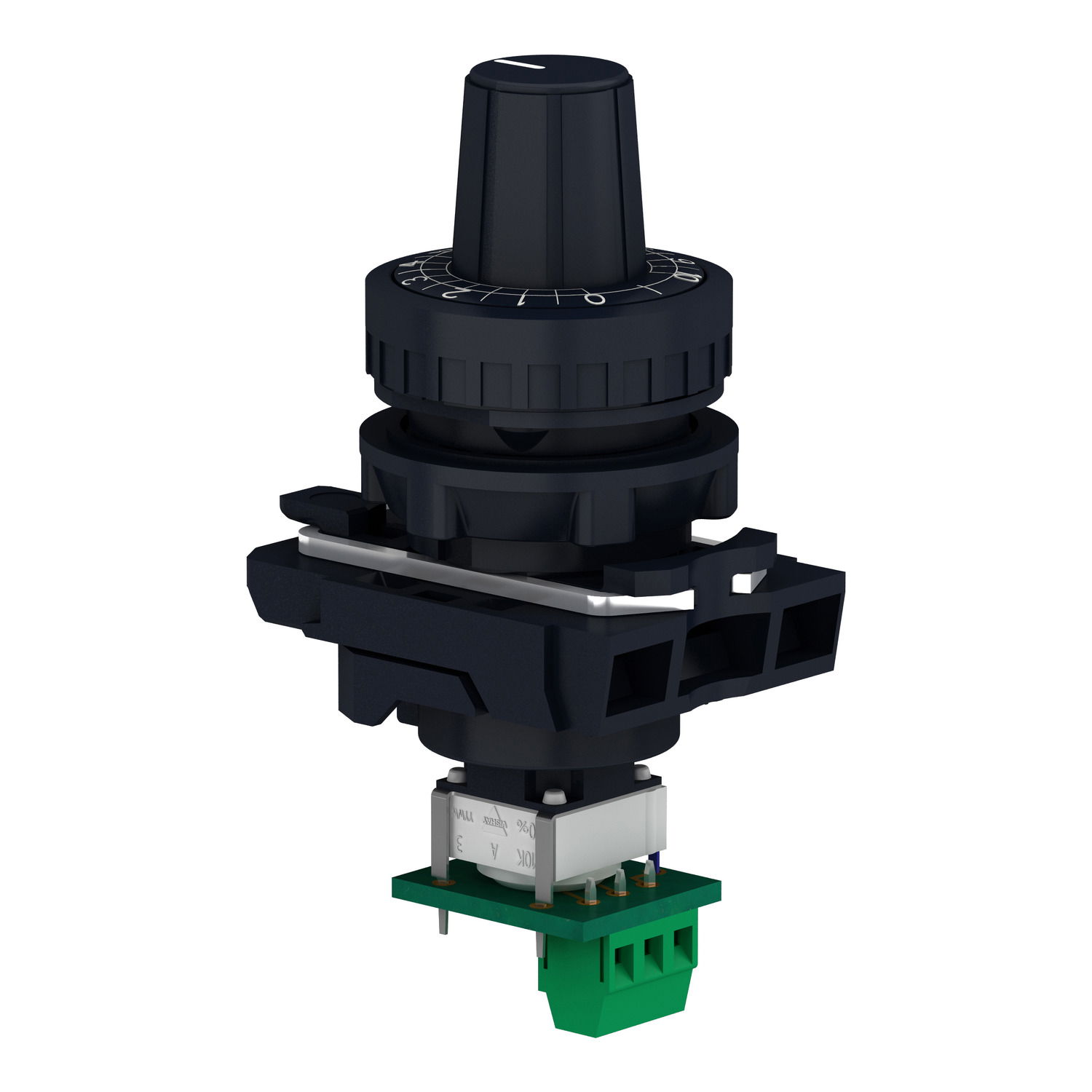

Complete potentiometer, plastic, Ø22, 10K – Image 3 of 8

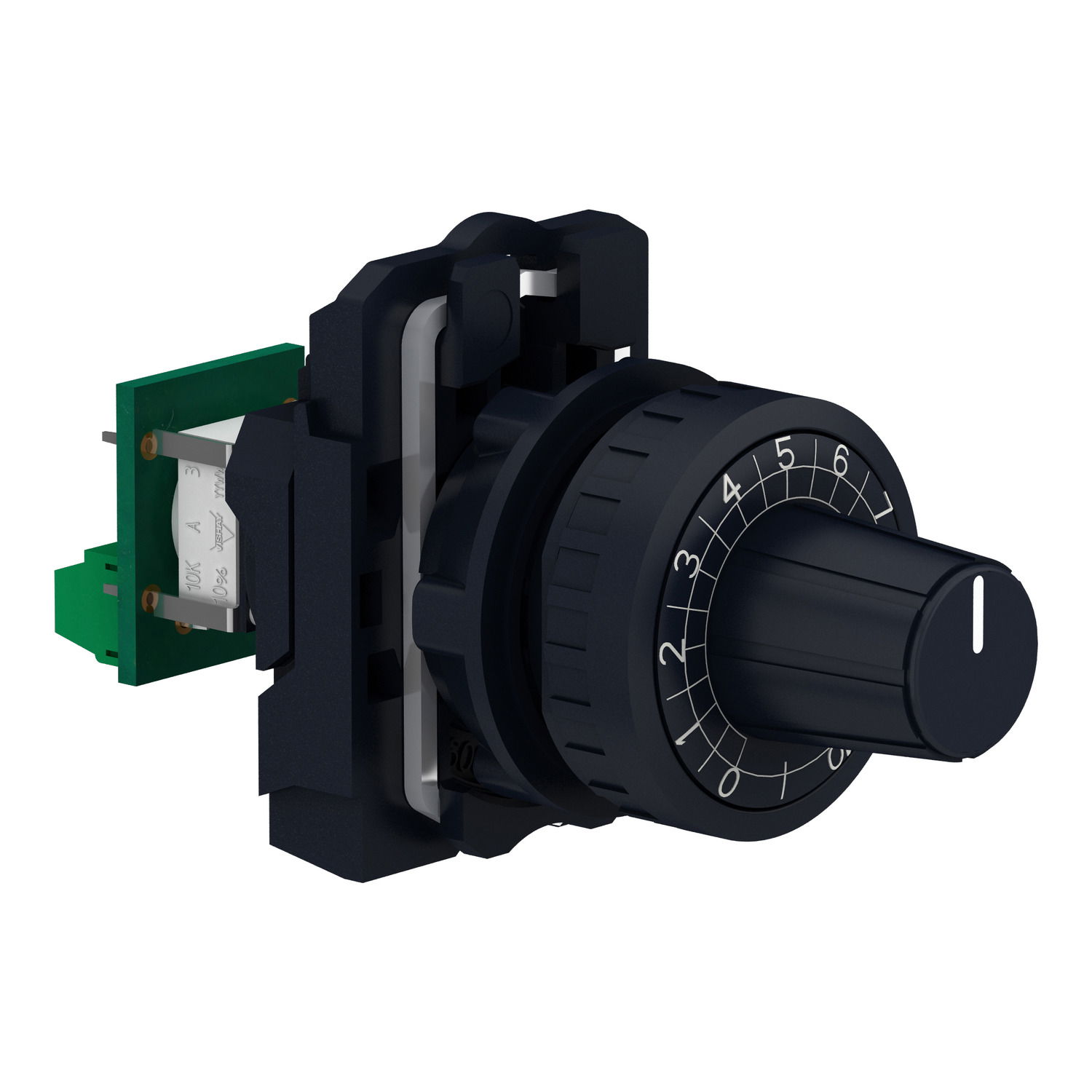

Complete potentiometer, plastic, Ø22, 10K – Image 4 of 8

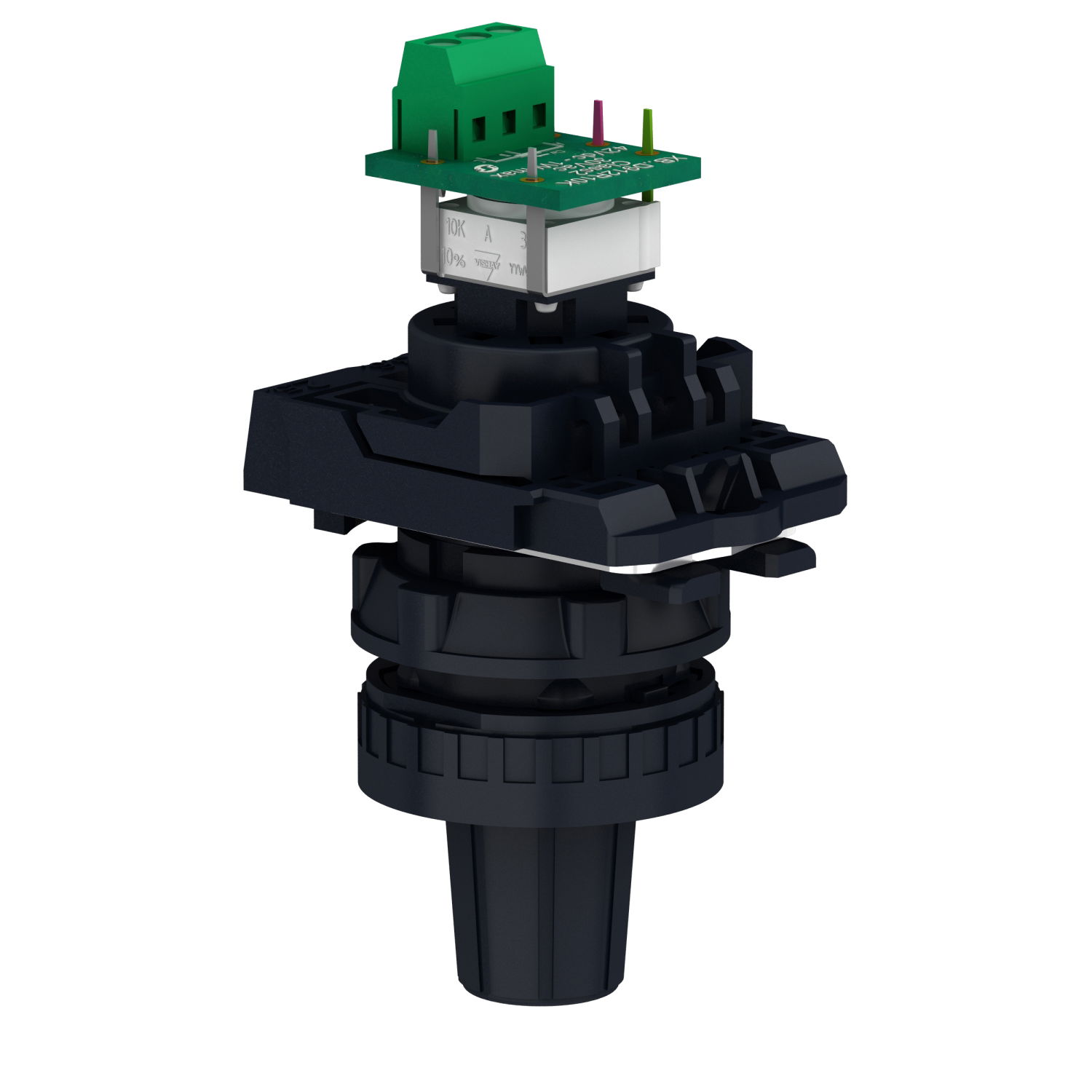

Complete potentiometer, plastic, Ø22, 10K – Image 5 of 8

Complete potentiometer, plastic, Ø22, 10K – Image 6 of 8

1 / 8

Complete potentiometer, plastic, Ø22, 10K

Name: Complete potentiometer, plastic, Ø22, 10K
Brand: Schneider Electric
SKU: XB5AD912R10K
Availability: InStock

Complete potentiometer, plastic, Ø22, 10K by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 2 of them. Trade prices range from £82.25 to £83.07 excl. VAT. Voltimum+ members earn 10 points per unit.

This Harmony XB5, 22mm diameter potentiometer has a resistance of 10kΩ and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.

Product identifiers

SKU: XB5AD912R10K

EAN: 3606480985072

GTIN: 3606480985072

MPN: XB5AD912R10K

Loyalty points: 10

Price range: £ 82.25 - £ 83.07 Excl. VAT

Specifications

Resistance	10000 Ohm
Hole diameter	22.5 mm
Power consumption	1 W
Number of revolutions
Degree of protection (IP)	IP66
Degree of protection (NEMA)	4X
Type of electric connection	Other
