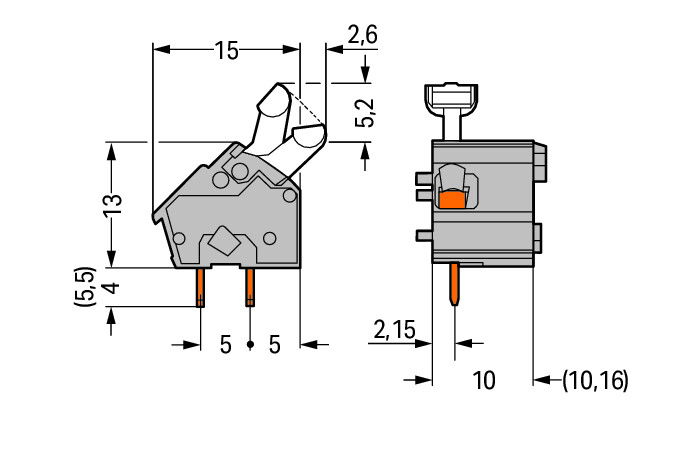

Stackable PCB terminal block push-button 2.5 mm² gray

Name: Stackable PCB terminal block push-button 2.5 mm² gray
Brand: Wago
SKU: 256-601
Price: 34.00 GBP
Availability: OutOfStock

Stackable PCB terminal block; push-button; 2.5 mm²; Pin spacing 10/10.16 mm; 1-pole; CAGE CLAMP®; commoning option; gray

Product identifiers

SKU: 256-601

EAN: 4044918809061

GTIN: 4044918809061

MPN: 256-601

Loyalty points: 1 (x100)

Price: £ 34.00 Excl. VAT

Specifications

Height	18.2
EFNA0008	V0
Length pin	4
Rated voltage	630
Housing colour	Grey
Type of banding	None
Number of levels	1
Pollution degree	2
Rated current In	24
Type of fastening	Solder
Connection type PCB	Soldering connection
Rated surge voltage	6
Operating temperature	-60 - 105
Over voltage category	III
Type of PCB fastening	Connecting contact
Diameter connection pin	-
Material insulation body	Thermoplastic
Connection type conductor	Spring clamp connection
Material connection surface	Tin
Modular spacing connections	10
RAL-number (similar) housing	-
Angle PCB/conductor connection	45°/135° (downwards inclined)
Number of electrical connections	1
Degree of protection (IP), mounted	-
Connectable conductor cross section solid-core	0.08 - 2.5
Connectable conductor cross section multi-wired	0.08 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 1.5
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 2.5
