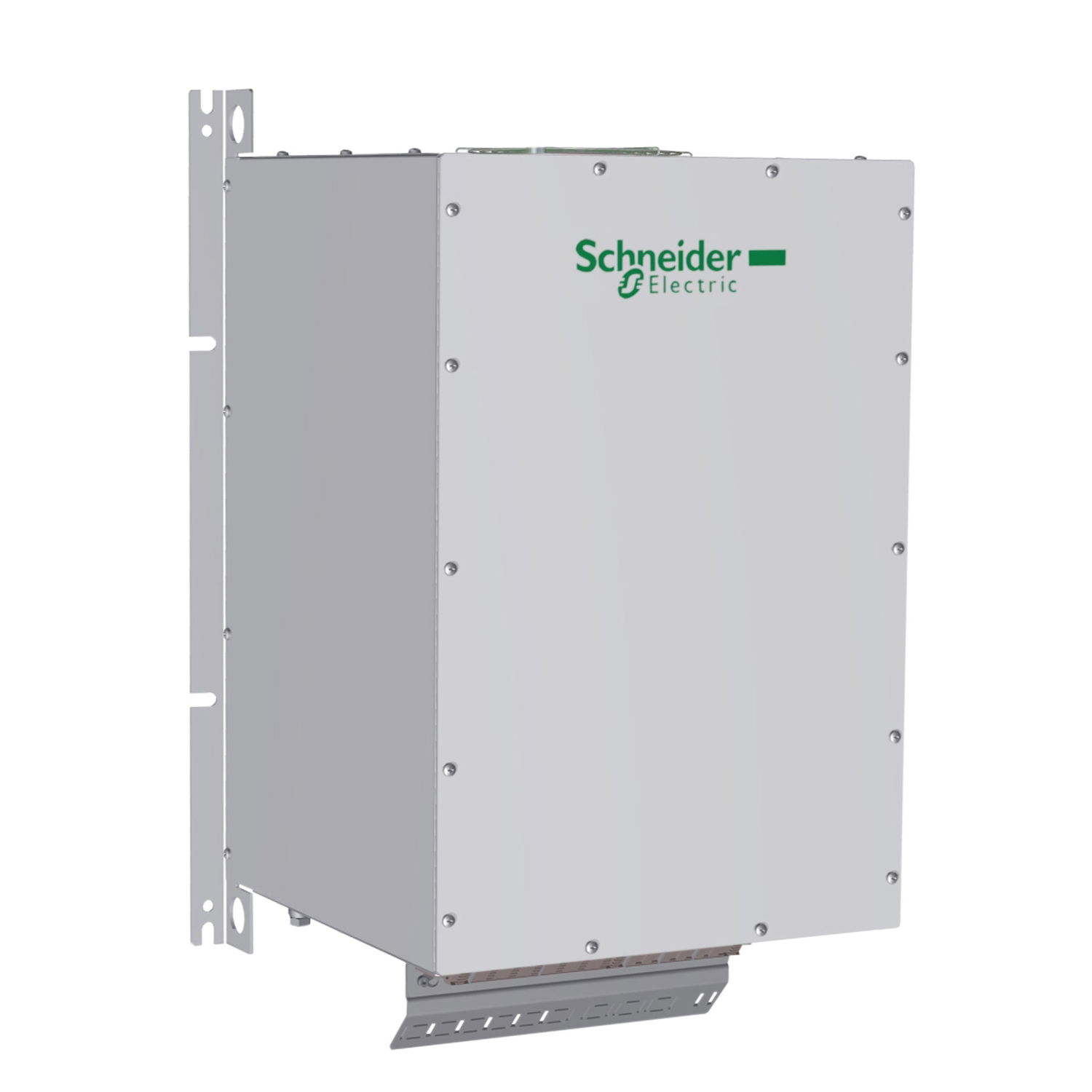

Passive filter - 60 A - 400 V - 50 Hz - for variable speed drive
This passive filter is an option for variable speed drives of Altivar range. Its rated current is equal to 60A. It is used as an input filter in order to obtain total harmonic distortion of less than 10% or 5%. Its protection index is IP20. It weighs 44kg and its dimensions are, 378mm wide, 623.6mm high, 333mm deep. It is designed to be used for drives in the first environment (restricted distribution, domestic applications).
Product identifiers
SKU: VW3A46108
EAN: 3606480639999
GTIN: 3606480639999
MPN: VW3A46108
Loyalty points:
337
Price: £ 2,478.00 Excl. VAT
Categories
ETIM Group
Specifications
| Rated current AC | |
| Rated clock frequency | - |
| Suitable as du/dt-filter | no |
| Suitable as sinus filter | no |
| Degree of protection (IP) | IP20 |
| Rated operating frequency | |
| Degree of protection (NEMA) | - |
| Number of poles, primary side | 3 |
