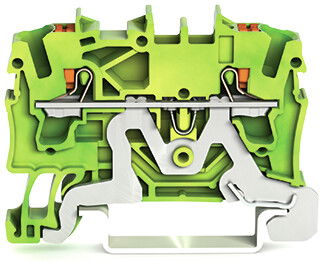

2-conductor ground terminal block with push-button 2.5 mm² green-yellow
2-conductor ground terminal block; with push-button; 2.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow
Product identifiers
SKU: 2202-1207
EAN: 4055143713580
GTIN: 4055143713580
MPN: 2202-1207
Price range: £ 2.30 - £ 2.82 Excl. VAT
Categories
Features
|
Depth
|
32.9 mm
|
|
Width
|
5.2 mm
|
|
Colour
|
Green/yellow
|
|
Height
|
48.5 mm
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
1
|
|
Operating temperature
|
105 - 105 °C
|
|
PEN function possible
|
yes
|
|
Closing plate required
|
yes
|
|
Material insulation body
|
Thermoplastic
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per level
|
2
|
|
Connectable conductor cross section solid-core
|
0.75 - 4 mm²
|
|
Connectable conductor cross section multi-wired
|
0.25 - 2.5 mm²
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.75 - 2.5 mm²
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.25 - 4 mm²
|
