TeSys K control relay - 3 NO + 1 NC - <= 690 V - 24 V DC low consumption coil
1 / 2
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
TeSys K control relay - 3 NO + 1 NC - <= 690 V - 24 V DC low consumption coil
TeSys K control relay - 3 NO + 1 NC - <= 690 V - 24 V DC low consumption coil by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £34.47 to £59.93 excl. VAT. Voltimum+ members earn 7 points per unit.

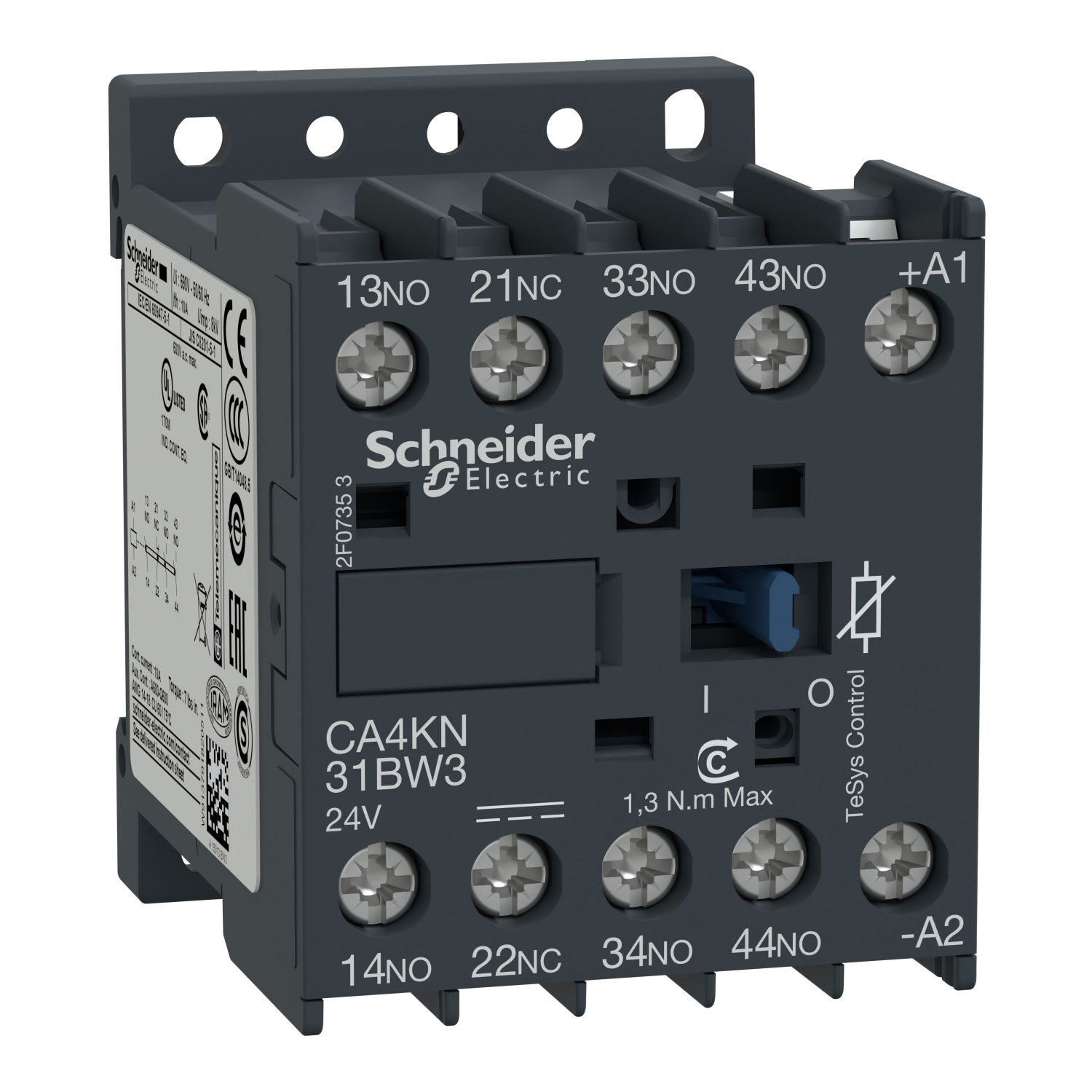

TeSys K control relay, 4 contacts (3NO+1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), (RoHS/REACh).
Product identifiers
SKU: CA4KN31BW3
EAN: 3389110428605
GTIN: 3389110428605
MPN: CA4KN31BW3
Loyalty points:
7
Price range: £ 34.47 - £ 59.93 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 93 mm |
| Width | 45 mm |
| Height | 77 mm |
| Interface | no |
| Mounting method | DIN-rail/screw |
| With LED indication | no |
| Operating voltage DC | |
| Rated switch current | 0.005 A |
