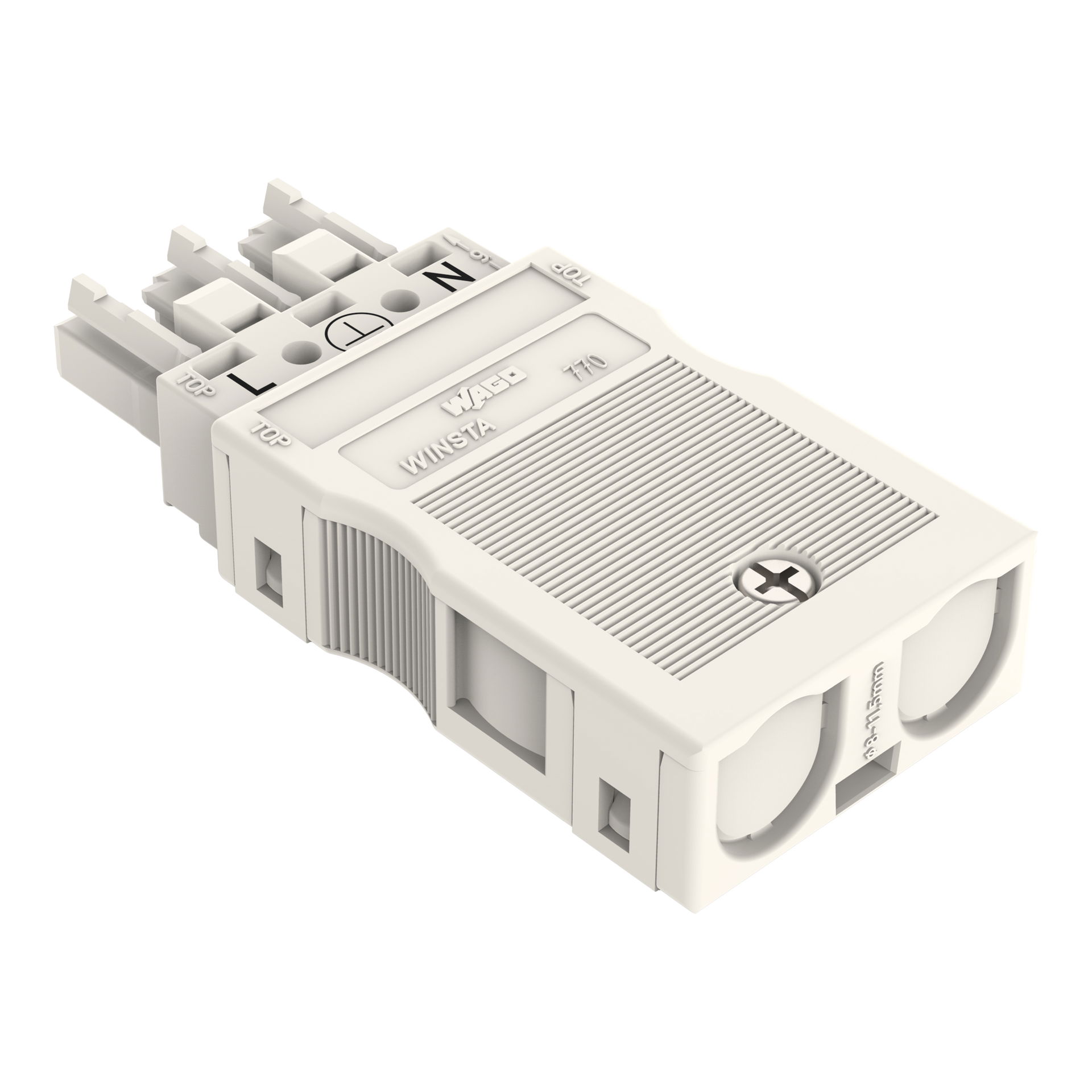

Socket with strain relief housing 3-pole white

Name: Socket with strain relief housing 3-pole white
Brand: Wago
SKU: 770-123
Availability: InStock

Socket; with strain relief housing; 3-pole; Cod. A; 4,00 mm²; white

Product identifiers

SKU: 770-123

EAN: 4044918252171

GTIN: 4044918252171

MPN: 770-123

Loyalty points: 2 (x25)

Price range: £ 3.49 - £ 3.93 Excl. VAT

Specifications

Model	Bus
Width	34.6
Height	15
Length	76
Fire load	0.11694
Halogen free	yes
Rated current	25
Rated voltage	250
Cable diameter	8 - 11.5
Connection type	Spring clamp connection
Number of poles	3
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	L, N, PE
With strain relief	yes
Rated surge voltage	4
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	White
Number of connections per pole	2
RAL-number coding/contact insert	9010
Connection cross section (solid-core)	0.5 - 4
Connection cross section (fine-strand)	0.5 - 4
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
