Features
|

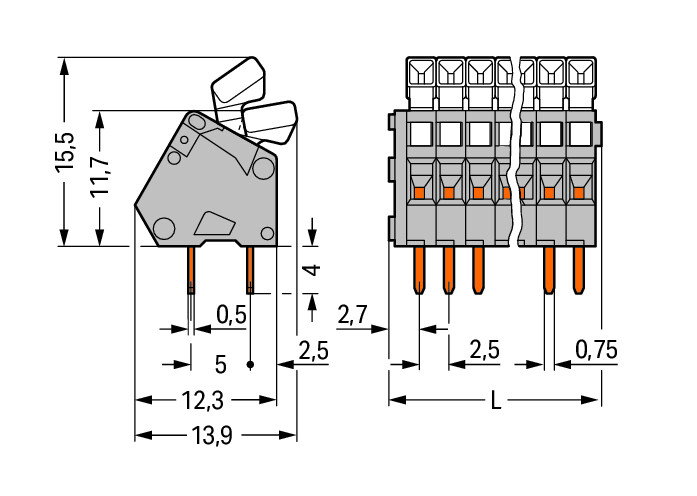

Height
|
15.5
|
|
EFNA0008
|
V0
|
|
Length pin
|
4
|
|
Rated voltage
|
160
|
|
Housing colour
|
Grey
|
|
Type of banding
|
None
|
|
Number of levels
|
1
|
|
Pollution degree
|
2
|
|
Rated current In
|
6
|
|
Type of fastening
|
Solder
|
|
Connection type PCB
|
Soldering connection
|
|
Rated surge voltage
|
2.5
|
|
Operating temperature
|
-60 - 105
|
|
Over voltage category
|
III
|
|
Type of PCB fastening
|
Connecting contact
|
|
Diameter connection pin
|
-
|
|
Material insulation body
|
Thermoplastic
|
|
Connection type conductor
|
Spring clamp connection
|
|
Material connection surface
|
Tin
|
|
Modular spacing connections
|
2.5
|
|
RAL-number (similar) housing
|
-
|
|
Angle PCB/conductor connection
|
Other
|
|
Number of electrical connections
|
12
|
|
Degree of protection (IP), mounted
|
-
|
|
Connectable conductor cross section solid-core
|
0.08 - 0.5
|
|
Connectable conductor cross section multi-wired
|
0.08 - 0.5
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.25 - 0.25
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.08 - 0.5
|
