Schneider Electric
Popularity Top 60% More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

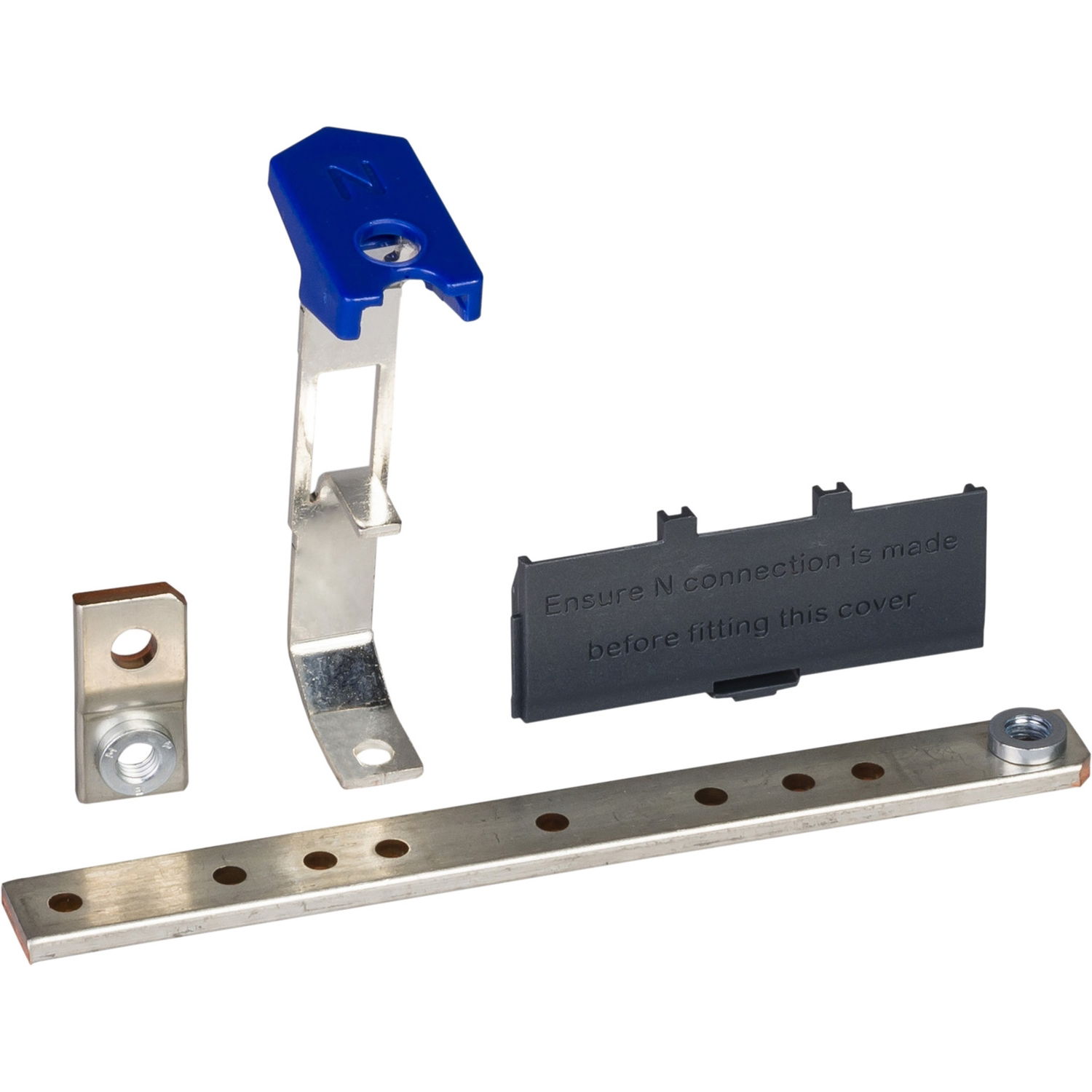

Isobar B - neutral bar - 1N - for distribution board - 4 ways

Link copied
SKU
EAN
GTIN
MPN

Isobar B - neutral bar - 1N - for distribution board - 4 ways by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and TLA. It is currently in stock at all of them. Trade price £54.17 excl. VAT. Voltimum+ members earn 9 points per unit.

Neutral bar assembly designed for use in 4 way Acti 9 Isobar B-type distribution boards. It provides a reliable and organized method for neutral connections in low-voltage electrical installations. The Ie rated operational current is 250A at 400/415VAC. The ambiant temperature for operation is -35°C to 70°, while the temperature for storage is -40°C to 80°C. Ideal for residential and light commercial electrical distribution systems

Voltimum+ Loyalty Programme Loyalty points: 9

Price: £ 54.17 Excl. VAT

Specifications

Depth 138 mm
Width -
Height 484 mm
With cover no
Rail height -
Busbar distance -
Busbar position Bottom centre
Number of poles 3
Max. rated current 250 A

Documents

Declaration of Conformity (Sustainability)

SEA9NB4 REACh Regulation

Open

Instruction sheet

Acti9 - Distributed Neutral Kit

Open

Product data sheet

Open

Catalog

Acti9 Isobar P Active Safety System

Open

Declaration of Conformity (Sustainability)

SEA9NB4 EU RoHS Directive

Open

Declaration of Conformity (Sustainability)

SEA9NB4 POP Directive

Open

Declaration of Conformity (Sustainability)

SEA9NB4 OECD PFAS Regulation

Open

Environmental Disclosure

Acti9 ISOBAR P B DISTRIBUTION BOARD

Open
