Schneider Electric

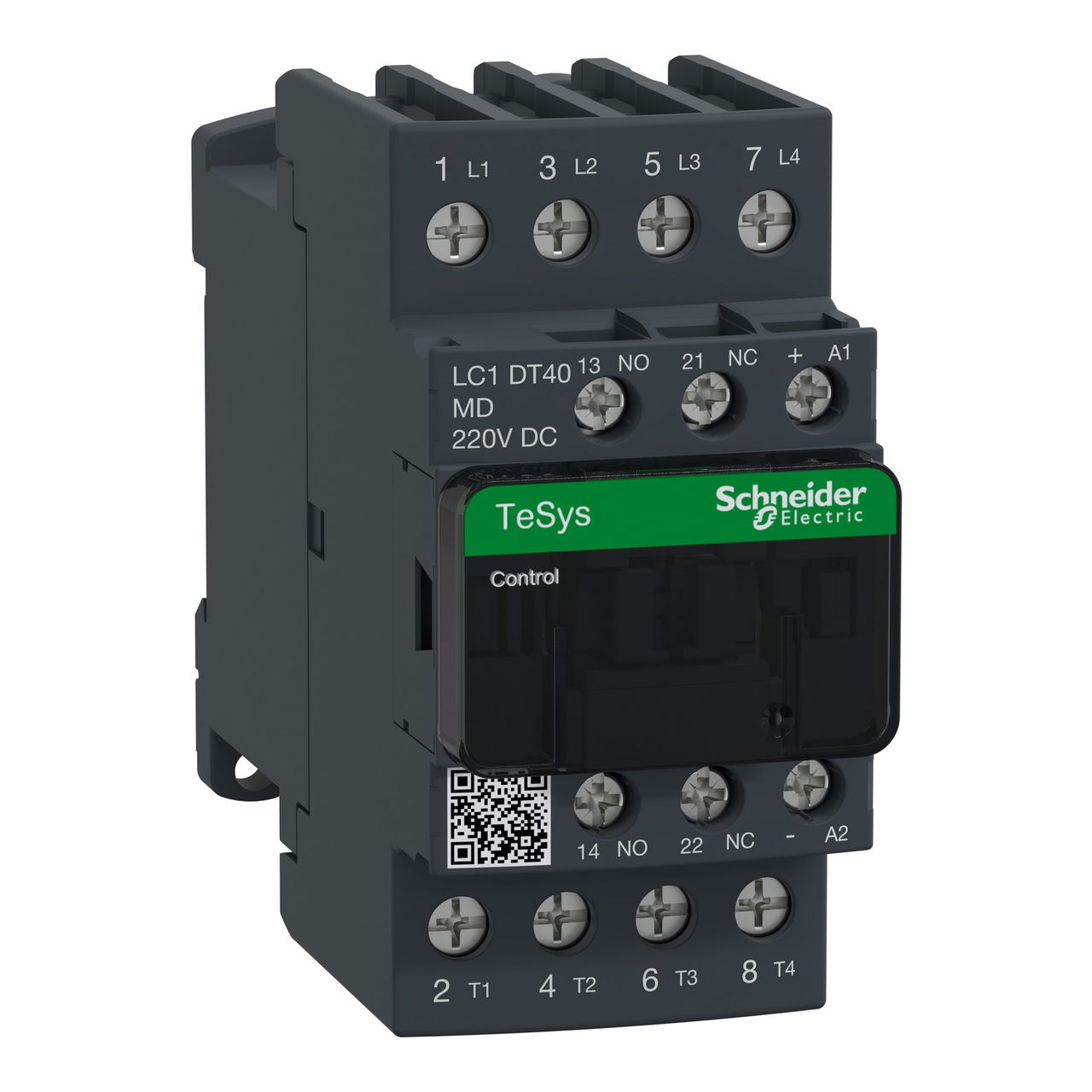

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 220 V DC standard coil

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 40 A - 220 V DC standard coil by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade price £162.83 excl. VAT. Voltimum+ members earn 21 points per unit.

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 40A/690V AC-1. It provides a 220V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Product identifiers

SKU: LC1DT40MD
EAN: 3389110445404
GTIN: 3389110445404
MPN: LC1DT40MD

Voltimum+ Loyalty Programme Loyalty points: 21

Price: £ 162.83 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth 107 mm
Width 45 mm
Height 91 mm
Modular version no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA -
Voltage type for actuating DC
Rated operation power at AC-3, 400 V -
Rated control supply voltage AC 50 Hz
Rated operation current Ie at AC-1, 400 V 40 A
Rated operation current Ie at AC-4, 400 V -
Number of normally open contacts as main contact 4
Number of auxiliary contacts as normally open contact 1

Documents

Deeplink product page

Open

Environmental compliance declaration

LC1DT40MD REACh Declaration

Open

Instruction sheet

LC1D 9 to 38 A AC/DC contactors with screw clamp terminals - Instruction Sheet

Open

Product data sheet

Open

Catalogue

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

Open

Environmental compliance declaration

LC1DT40MD EU RoHS Declaration

Open

Environmental compliance declaration

LC1DT40MD China RoHS Declaration

Open

Environmental disclosure

TeSys Deca 3-pole contactor 09A DC

Open
