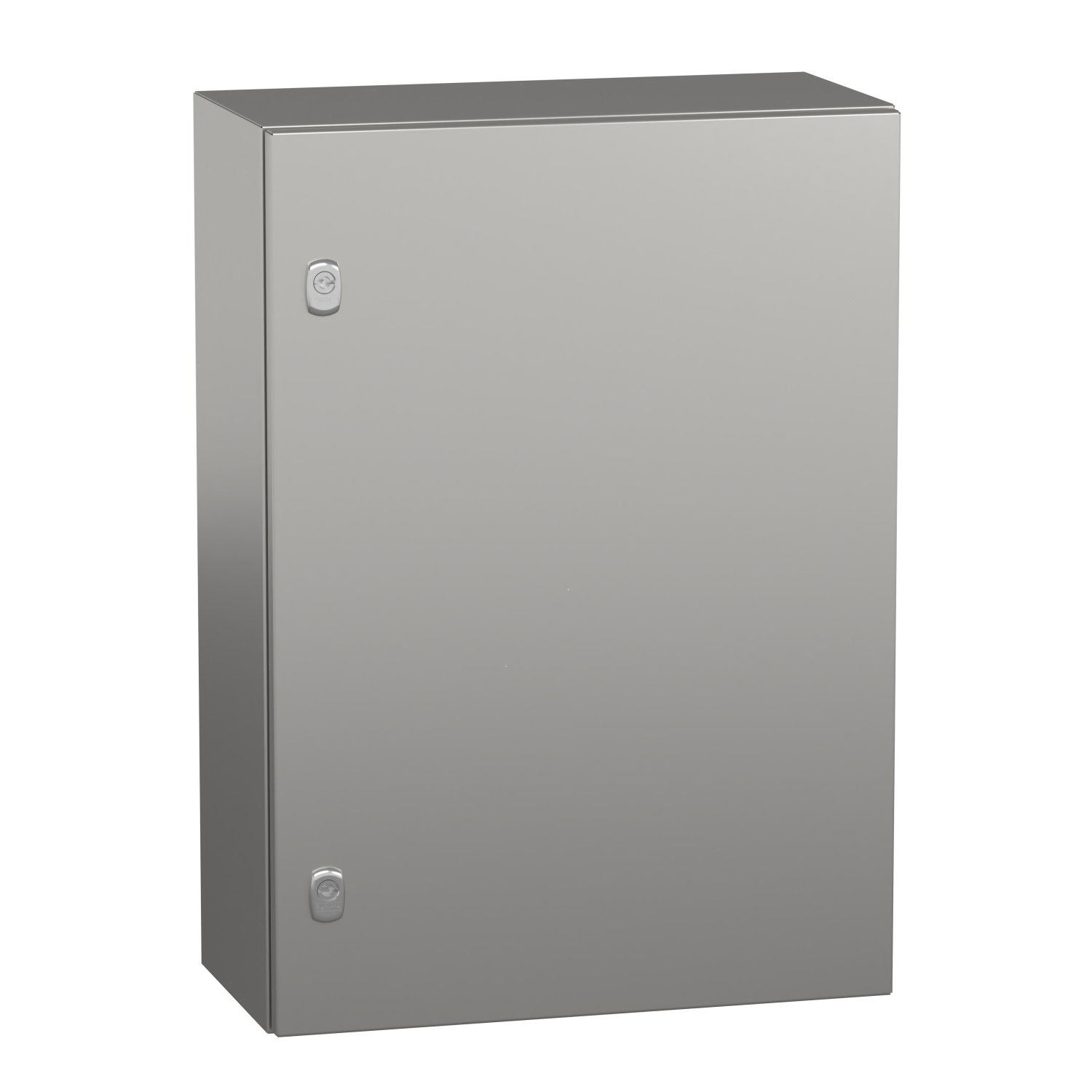

"PanelSet S3X stainless 304L, Scotch Brite® finish, H700xW500xD250 mm."

"PanelSet S3X stainless 304L, Scotch Brite® finish, H700xW500xD250 mm." by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 4 of them. Trade prices range from £600.75 to £666.76 excl. VAT. Voltimum+ members earn 84 points per unit.

Spacial S3X compact steel enclosure with plain front door. 700 x 500 x 250 mm. Multi-purpose. Installation in wall-mounting. Gutter shaped front rail, single piece body with cross shaped structure. Without mounting plate. Handle double bar 3mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.

Product identifiers

SKU: NSYS3X7525
EAN: 3606480155260
GTIN: 3606480155260
MPN: NSYS3X7525

Voltimum+ Loyalty Programme Loyalty points: 84

Price range: £ 600.75 - £ 666.76 Excl. VAT

Categories

Electrical Enclosures Enclosures & Panels

ETIM group

Control cabinet systems

Specifications

Depth 250 mm
Width 500 mm
Colour Stainless steel
Height 700 mm
Material Stainless steel
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Stainless steel 304 (V2A)
Surface finishing Other
With mounting plate no
With ventilation door no
Floor standing wall model no
Suitable for wall built-in no
Degree of protection (NEMA) 12
Suitable for metrical mounting yes
Max. permissible load of the door(s) according to IEC 62208 50 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
