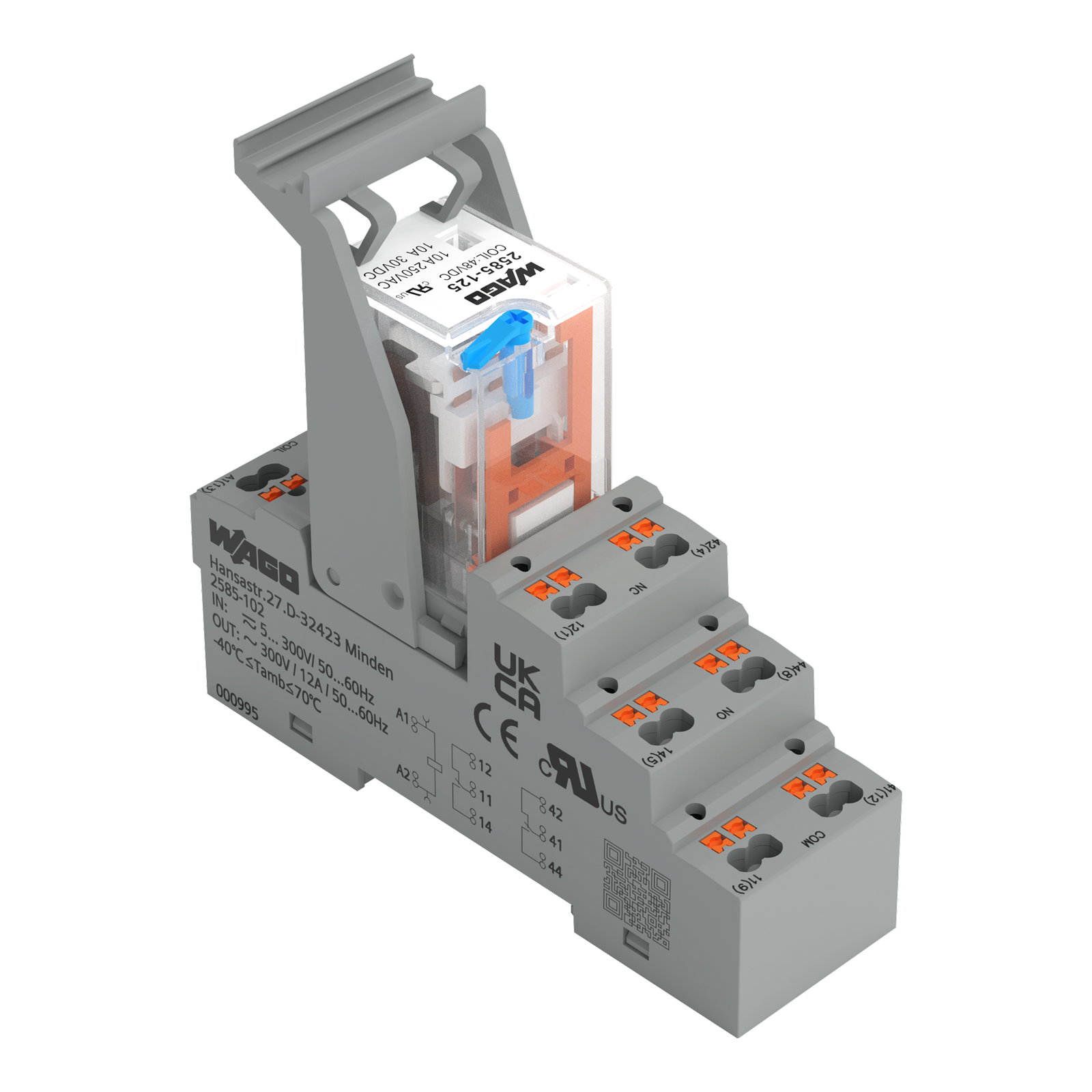

Relay module Nominal input voltage: 48 VDC 2 changeover contacts
Relay module; Nominal input voltage: 48 VDC; 2 changeover contacts; Limiting continuous current: 6 A; with manual operation; Set of relay socket and elementary relay; Yellow status indicator; Module width: 27 mm
Product identifiers
SKU: 2585-325
EAN: 4066966758245
GTIN: 4066966758245
MPN: 2585-325
Price: £ 0.00 Excl. VAT
Categories
Features
|
Depth
|
78
|
|
Width
|
26.8
|
|
Height
|
92.5
|
|
Nominal current
|
6
|
|
Material contact
|
Nickel
|
|
Drive, polarization
|
Polarized
|
|
With LED indication
|
yes
|
|
Complete with socket
|
yes
|
|
Operating voltage DC
|
|
|
Max. starting current
|
-
|
|
Type of switch contact
|
Single contact
|
|
With detachable clamps
|
no
|
|
Degree of protection (IP)
|
IP20
|
|
Drive, switching attitude
|
Mono stable
|
|
Material of contact insert
|
-
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Voltage type for actuating
|
DC
|
|
Material of contact surface
|
Silver
|
|
Type of electric connection
|
Spring clamp connection
|
|
With forced-guided contacts
|
no
|
|
Rated control supply voltage DC
|
48 - 48
|
|
Voltage type (operating voltage)
|
-
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Number of contacts as change-over contact
|
2
|
|
Number of contacts as normally open contact
|
0
|
|
Number of contacts as normally closed contact
|
0
|
|
Relay technology category according to IEC 61810-7
|
-
|
