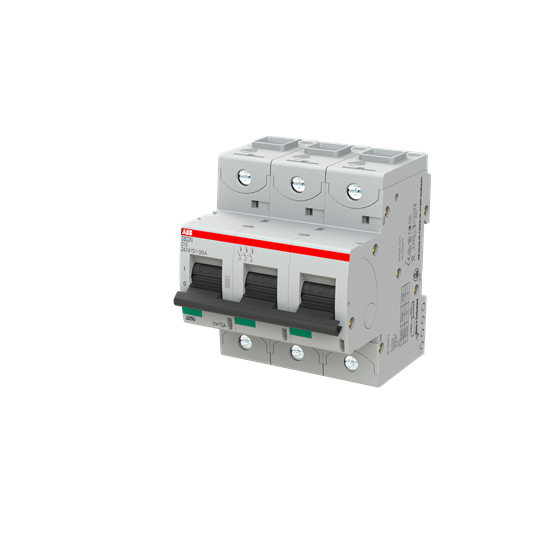

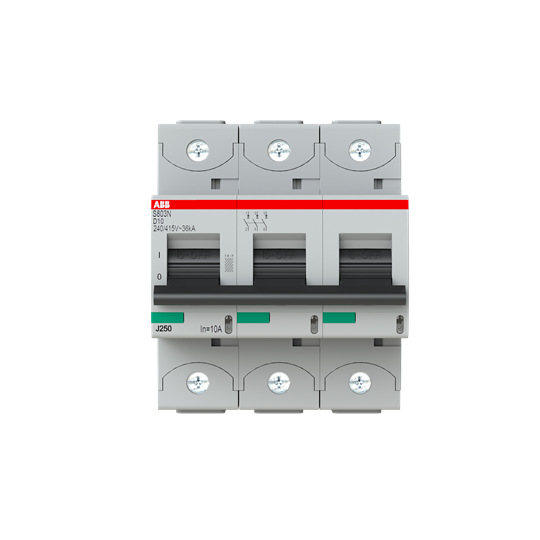

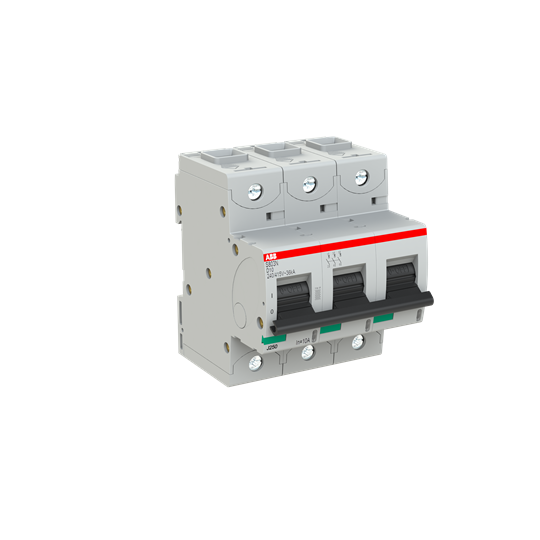

S803N-D10 High Performance MCB
ABB

S803N-D10 High Performance MCB

The S803N-D10 is a 3-pole High Performance Circuit breaker with D-Characteristic, with cage terminal and a rated current of 10 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803N-D10 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803N-D10 more comfortable. Due to the fast arc extinction of S803N-D10 your application will be secured.

Product identifiers

SKU: 2CCS893001R0101
EAN: 7612271205003
GTIN: 7612271205003
MPN: S803N-D10

V+ Loyalty points:

107

Price: £ 242.82 Excl. VAT

Categories

MCBs Circuit Breakers Switchgear & Circuit Protection

Specifications

Frequency
Power loss 4.5
Voltage type AC/DC
Rated current 10
Rated voltage
Built-in depth 82.5
Explosion-proof no
Pollution degree 3
Current limiting class 3
Number of poles (total) 3
Number of protected poles 3
Rated insulation voltage Ui 690
Width in number of modular spacings 4.5
Rated impulse withstand voltage Uimp 8
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V -
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V -

Documents

Deeplink product page
Deeplink REACH
Instructions for use
Product data sheet
Declaration RoHS
Declaration EPD (Environmental Product Declaration)
