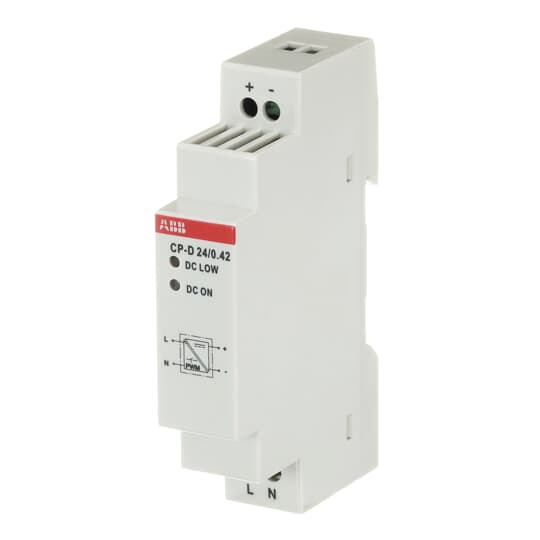

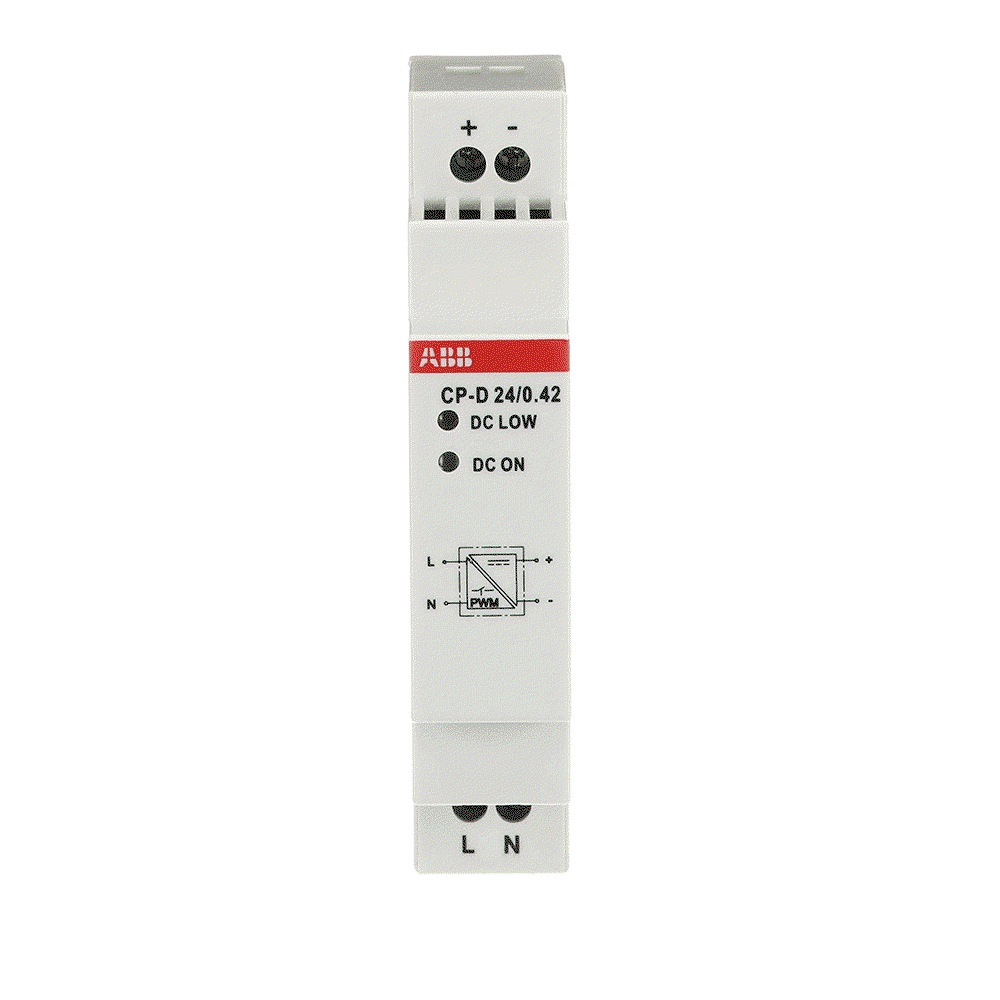

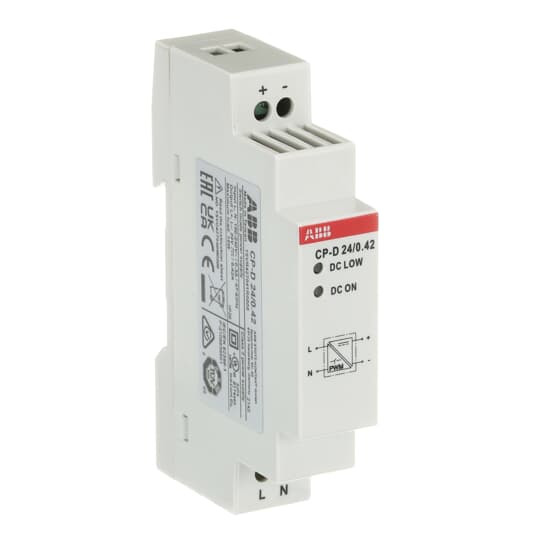

CP-D 24/0.42 Power supply In: 100-240VAC Out: 24VDC/0.42A
The CP-D 24/0.42 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 10 W, rated output current is 0.42 A at an output voltage of 24 V DC. The power supply provides a U/I output characteristic.
Product identifiers
SKU: 1SVR427041R0000
EAN: 4016779661164
GTIN: 4016779661164
MPN: CP-D 24/0.42
Loyalty points:
22
Price range: £ 40.05 - £ 45.38 Excl. VAT
Categories
Features
|
Depth
|
57.5 mm
|
|
Width
|
18 mm
|
|
Height
|
91 mm
|
|
EFI00008
|
-
|
|
EFI00040
|
-
|
|
EFI00049
|
-
|
|
EFI00332
|
-
|
|
EFI00846
|
-
|
|
Stabilized
|
yes
|
|
Power output
|
10 W
|
|
Built-in width
|
18 mm
|
|
Built-in height
|
91 mm
|
|
Modular version
|
yes
|
|
Power consumption
|
12 VA
|
|
Short-circuit-proof
|
yes
|
|
Max. output current 1
|
0.42 A
|
|
Max. output current 2
|
|
|
Max. output current 3
|
|
|
Wall mounting possible
|
no
|
|
Rated supply voltage DC
|
120 - 375 V
|
|
Direct mounting possible
|
no
|
|
Degree of protection (IP)
|
IP20
|
|
Output voltage stabilized
|
yes
|
|
SIL according to IEC 61508
|
None
|
|
Suitable for rail mounting
|
yes
|
|
Degree of protection (NEMA)
|
1
|
|
Type of electric connection
|
Screw connection
|
|
1st secondary output voltage
|
24 - 24 V
|
|
2nd secondary output voltage
|
|
|
3rd secondary output voltage
|
|
|
Secondary voltage adjustable
|
no
|
|
Rated supply voltage AC 50 Hz
|
90 - 264 V
|
|
Rated supply voltage AC 60 Hz
|
90 - 264 V
|
|
Suitable for safety functions
|
no
|
|
Voltage type (supply voltage)
|
AC/DC
|
|
Nominal value output current 1
|
0.42 A
|
|
Nominal value output current 2
|
|
|
Nominal value output current 3
|
|
|
Nominal value output voltage 1
|
24 V
|
|
Nominal value output voltage 2
|
|
|
Nominal value output voltage 3
|
|
|
Width in number of modular spacings
|
1.0
|
|
Performance level according to EN ISO 13849-1
|
None
|
