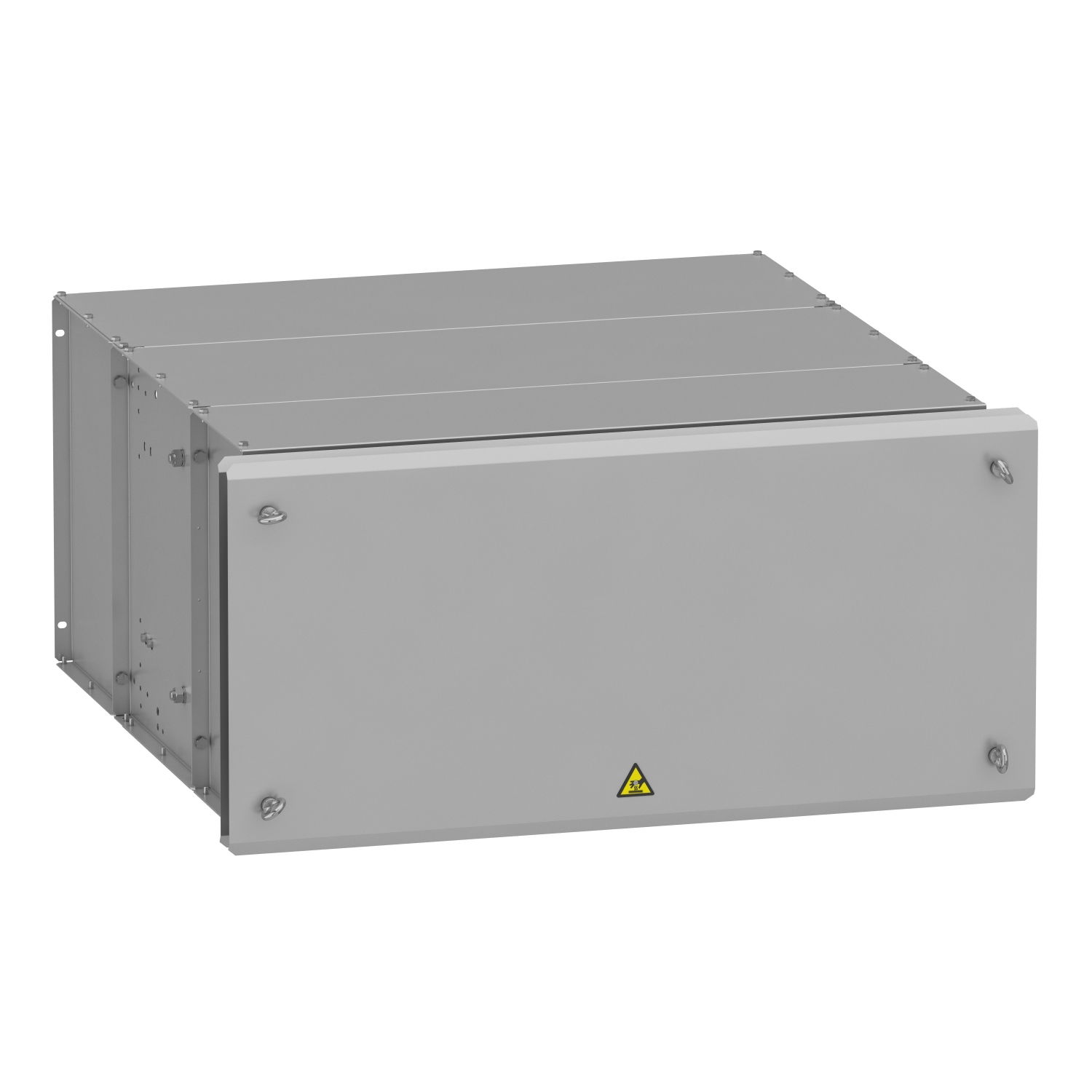

Braking resistor - 8 ohms - 25 kW - IP23

Braking resistor - 8 ohms - 25 kW - IP23 by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £4,640.00 excl. VAT. Voltimum+ members earn 601 points per unit.

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 8Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 86kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

Product identifiers

SKU: VW3A7755
EAN: 3606480802478
GTIN: 3606480802478
MPN: VW3A7755

Voltimum+ Loyalty Programme Loyalty points: 601

Price: £ 4,640.00 Excl. VAT

Categories

Electronic Components Resistors

ETIM group

Low-voltage industrial components

Specifications

Accessory yes
Spare part no
Type of accessory/spare part Breaking resistance

Documents

Declaration of Conformity (Sustainability)

VW3A7755 REACh Regulation

Open

Product data sheet

Open

Catalog

Discover catalog for Altivar Process ATV900 variable speed drives

Open

Declaration of Conformity (Sustainability)

VW3A7755 EU RoHS Directive

Open

Declaration of conformity

ATV930 & ATV950 UK DECLARATION

Open

CAD

Open

CAD

Open

CAD

Open
