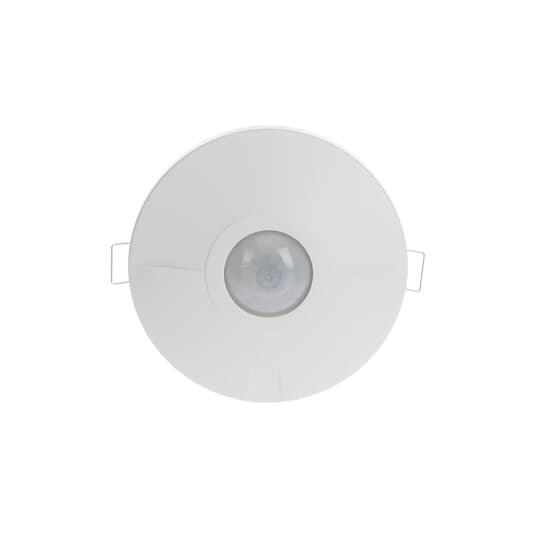

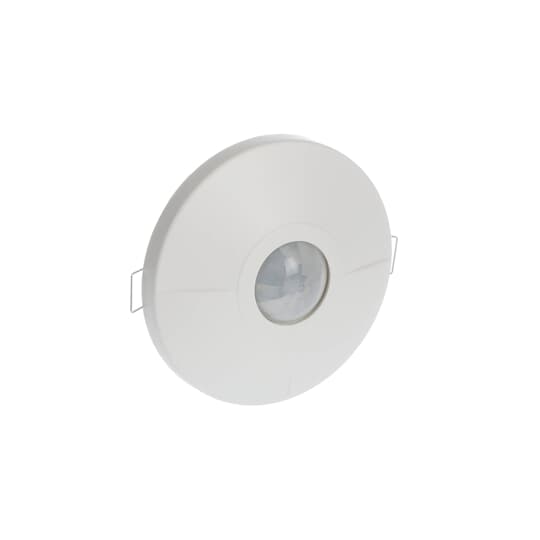

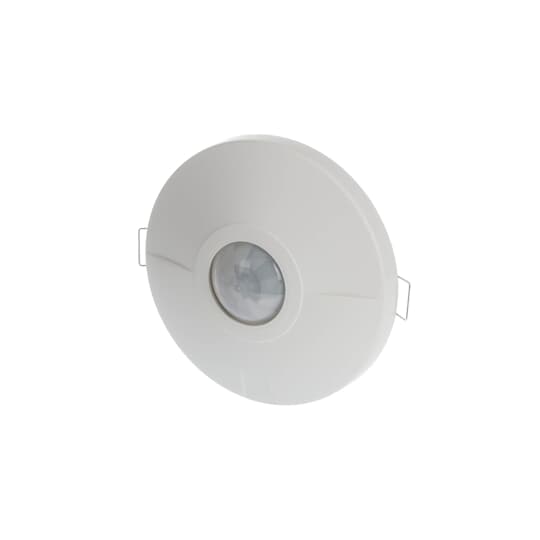

Presence Detector 7 m 2000 W white
For switching lighting systems that depend on brightness and movement. Detection range (for installation height of 3 m), circular, up to 8 m in diameter. For semiautomatic and fully automatic operation. Additional activation/deactivation possibility through pushbutton input. Adaptation of the detection range possible using the included masking elements. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Mounting possibility in combination with built-in installation boxes and device sockets. Ceiling installation using integrated spring bracket. Adjustment elements accessible on the front side. Low mounting height (31 mm) Surveillance density: 32 sectors with 128 switching segments. Switch-off delay: approx. 5 sec - 30 min or short-time pulse adjustable.
Product identifiers
SKU: 2CKA006800A2518
EAN: 4011395148044
GTIN: 4011395148044
MPN: 6814 U-500
Loyalty points:
43
Price: £ 85.07 Excl. VAT
Categories
Features
|
Depth
|
25
|
|
Model
|
Presence detector
|
|
Width
|
135
|
|
Colour
|
White
|
|
Height
|
30
|
|
Diameter
|
-
|
|
Material
|
Plastic
|
|
Frequency
|
|
|
Scan angle
|
-
|
|
Animal zone
|
no
|
|
Networkable
|
no
|
|
Sensor type
|
Other
|
|
Temperature
|
|
|
Transparent
|
no
|
|
HVAC-control
|
no
|
|
Halogen free
|
yes
|
|
Voltage type
|
AC
|
|
Built-in depth
|
41
|
|
Built-in width
|
-
|
|
Bridging switch
|
no
|
|
Built-in length
|
41
|
|
Connection type
|
-
|
|
Control current
|
-
|
|
Impact strength
|
-
|
|
Max. duty cycle
|
30
|
|
Mounting method
|
Flush-mounted
|
|
Nominal voltage
|
|
|
Forced switch on
|
no
|
|
Material quality
|
Thermoplastic
|
|
Remote operation
|
no
|
|
Substation input
|
yes
|
|
Switch-off delay
|
-
|
|
With signal unit
|
no
|
|
Built-in diameter
|
65
|
|
Forced switch off
|
no
|
|
Surface finishing
|
Matt
|
|
Surface protection
|
Untreated
|
|
Switching-on delay
|
-
|
|
Max. presence range
|
-
|
|
Max. reach sideways
|
4
|
|
Min. switch-on time
|
5
|
|
Suitable for C-load
|
-
|
|
With DALI interface
|
no
|
|
With alarm function
|
no
|
|
With remote control
|
no
|
|
Max. reach frontally
|
4
|
|
Max. switching power
|
-
|
|
RAL-number (similar)
|
9010
|
|
With acoustic sensor
|
-
|
|
Background monitoring
|
-
|
|
Max. starting current
|
-
|
|
Min. starting current
|
-
|
|
With connection cable
|
-
|
|
Constant light control
|
no
|
|
Creep-under protection
|
yes
|
|
Connection cable length
|
-
|
|
Diameter reach on floor
|
-
|
|
IFTTT support available
|
no
|
|
Optimum mounting height
|
2
|
|
Anti-bacterial treatment
|
no
|
|
Max. switching power LED
|
-
|
|
Degree of protection (IP)
|
IP40
|
|
Number of switching zones
|
-
|
|
Response value luminosity
|
|
|
Detection angle horizontal
|
|
|
Staircase light controller
|
yes
|
|
Suitable for wall mounting
|
no
|
|
Compatible with Amazon Alexa
|
no
|
|
Compatible with Apple HomeKit
|
no
|
|
Suitable for ceiling mounting
|
yes
|
|
Pivoting range sensor, vertical
|
|
|
Compatible with Google Assistant
|
no
|
|
Pivoting range sensor, horizontal
|
|
|
Suitable for wireless transmission
|
no
|
|
Response value luminosity adjustable
|
yes
|
|
Response value sensitivity adjustable
|
no
|
|
Dim function with dimmer basic element
|
no
|
|
Min. depth of built-in installation box
|
41
|
|
Teach-function for response value luminosity
|
no
|
