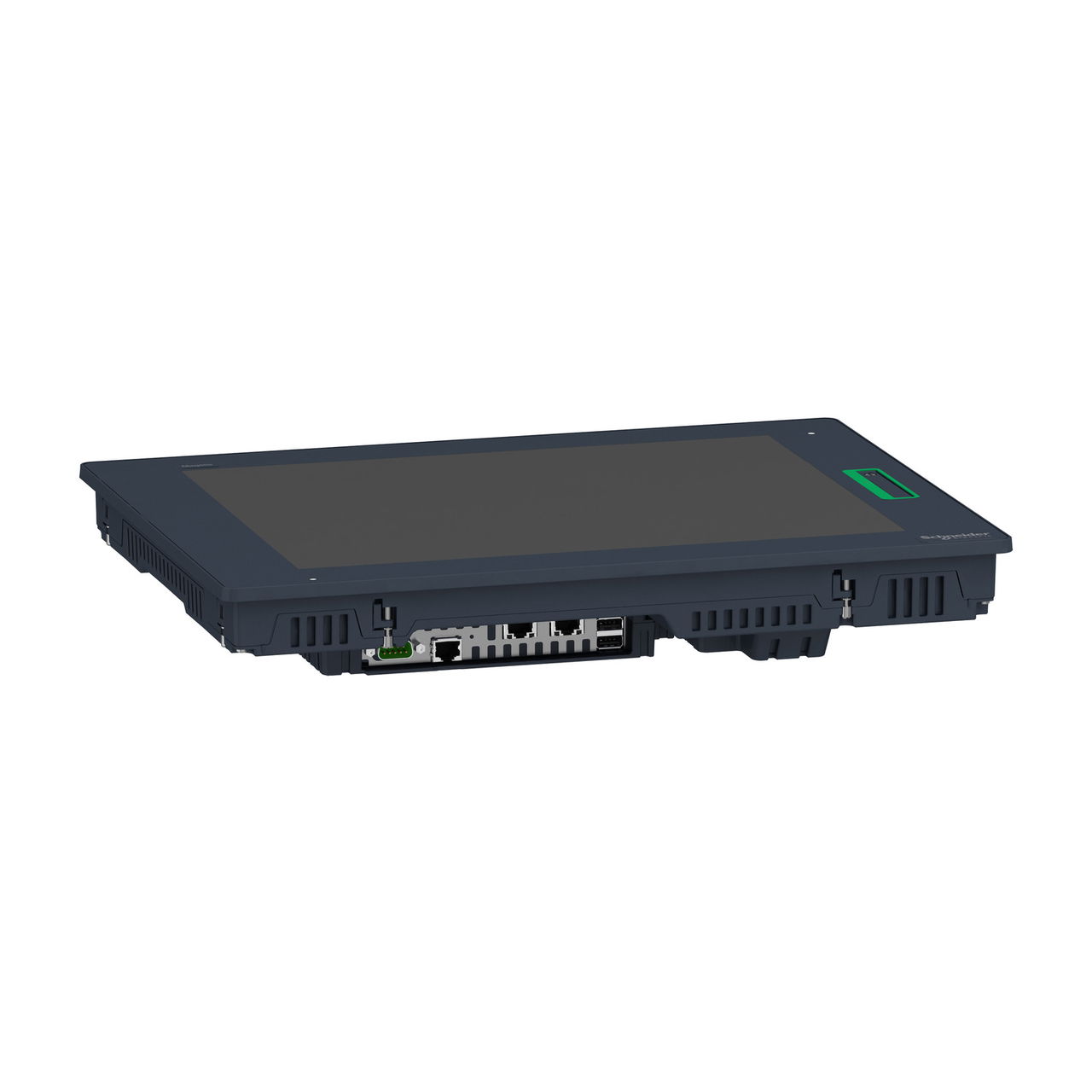

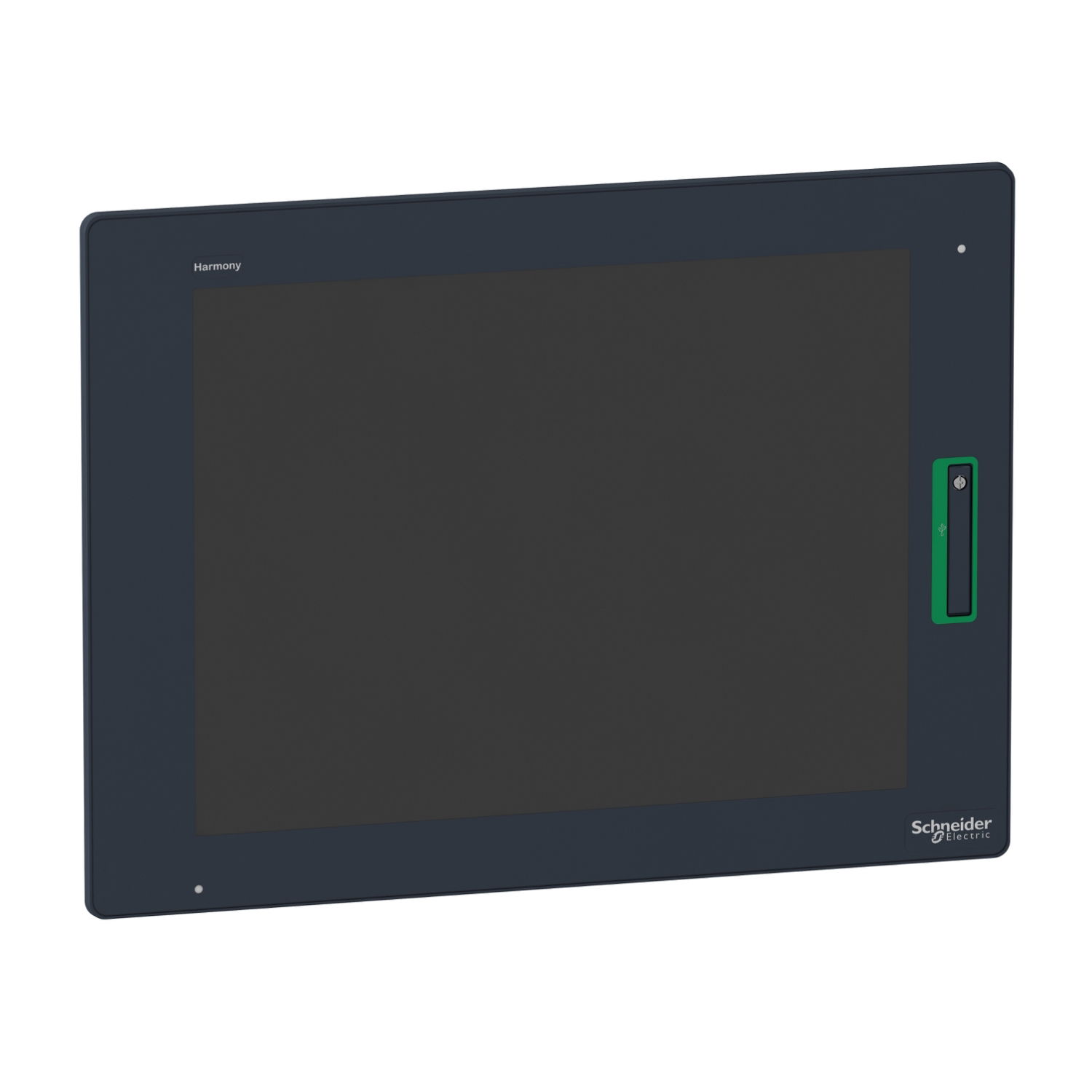

15 Touch Smart Display XGA

Link copied
SKU
EAN
GTIN
MPN

15 Touch Smart Display XGA by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell, RS Components and 1 more. It is currently in stock at 3 of them. Trade prices range from £2,317.92 to £2,894.00 excl. VAT. Voltimum+ members earn 363 points per unit.

This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 15" color TFT LCD display with 1024 x 768 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.

Voltimum+ Loyalty Programme Loyalty points: 363

Price range: £ 2,317.92 - £ 2,894.00 Excl. VAT

Specifications

With recipes -
Built-in depth 67 mm
Colour display yes
IO link master no
Screen diagonal 15 inch
Type of display TFT
Touch technology Resistive touch
Power consumption 22 W
Radio standard GSM no
With SW interfaces no
Radio standard GPRS no
With printer output -
With numeric keyboard no
Supply voltage AC 60 Hz
Number of system buttons 0
Number of password levels -
Number of online languages -
Radio standard WLAN 802.11 no
Number of HW-interfaces USB 0
Supporting protocol for CAN no
Supporting protocol for LON no
Number of pixels, horizontal 1024
Number of interfaces PROFINET 0
Voltage type (supply voltage) DC
Number of HW-interfaces RS-232 0
Number of HW-interfaces RS-485 0
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Number of HW-interfaces wireless 0
Supporting protocol for EtherCAT no
Supporting protocol for PROFIBUS no
Supporting protocol for PROFIsafe no
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO no
Supporting protocol for Data-Highway no
Degree of protection (IP), front side IP67
Degree of protection (NEMA), front side -
Additional software components, loadable -
Supporting protocol for DeviceNet Safety no
Certified for UL hazardous location class I no
Supporting protocol for Foundation Fieldbus no
Number of grey-scales/blue-scales of display 16000000
Certified for UL hazardous location division 1 no
Process value representation (output) possible -
With message system (incl. buffer and confirmation) no
Certified for UL hazardous location group B (hydrogen) no
Certified for UL hazardous location group A (acetylene) no
Certified for UL hazardous location group F (carbonaceous dusts) no
