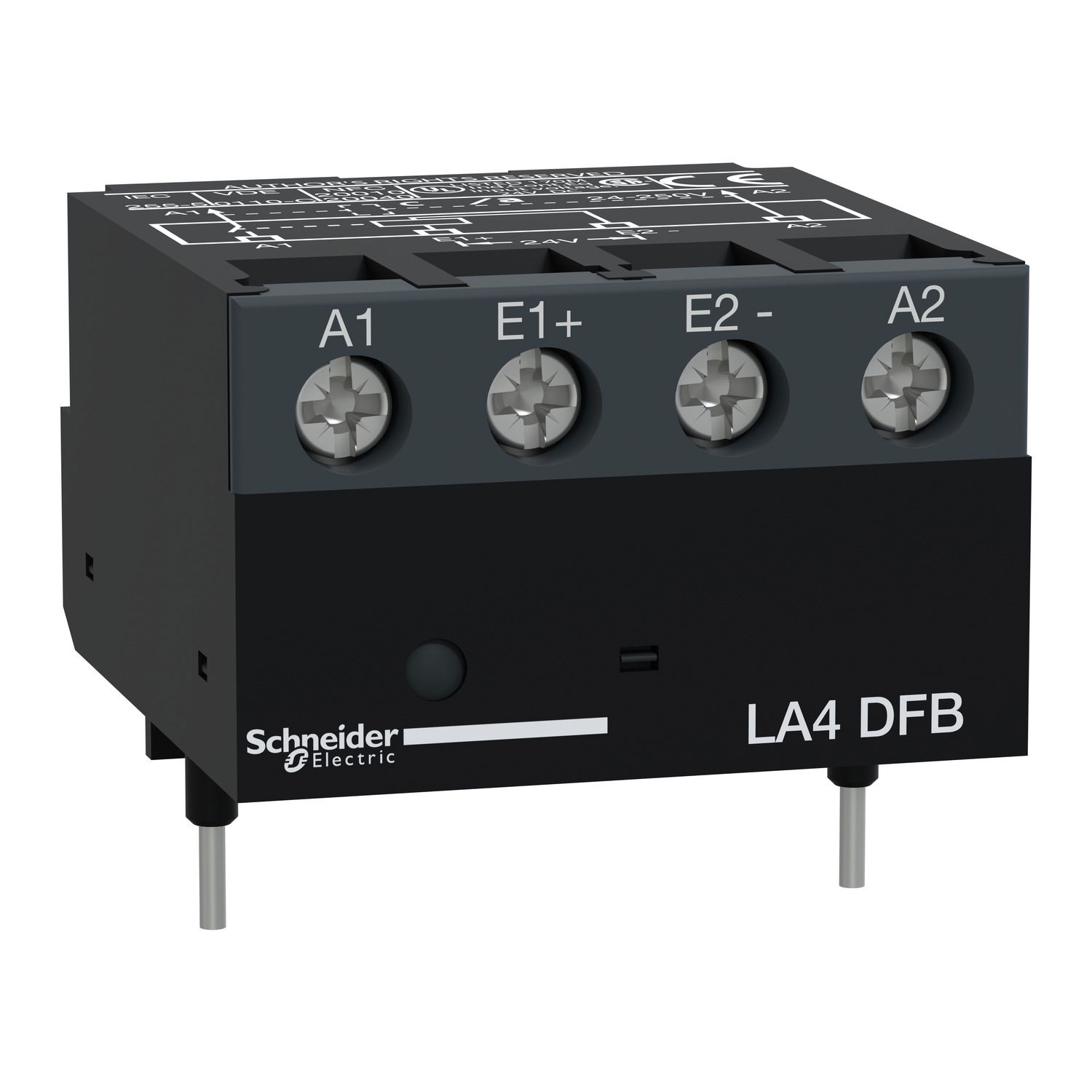

TeSys D - interface amplifier module - solid state - 24 V DC / 250 V AC
1 / 2
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
TeSys D - interface amplifier module - solid state - 24 V DC / 250 V AC
TeSys D - interface amplifier module - solid state - 24 V DC / 250 V AC by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia and RS Components. It is currently in stock at 2 of them. Trade prices range from £47.32 to £77.05 excl. VAT. Voltimum+ members earn 10 points per unit.
TeSys Deca low signal interface module, for control of contactors LC.D09-D115 (3P). Static relay interface controlled by a 24V DC input signal. To be used with contactors with 24-250V AC coils (B7 to U7), for contactors LC.D80-D115 the use is limited to 100-250V AC coils (F7 to U7). To be mounted on a coil wiring adapter LAD4BB for contactors LC.D09-D38, LAD4BB3 for contactors LC.D40A-D80A, and directly on contactors LC.D80-D115. Sustainability compliant.
Product identifiers
SKU: LA4DWB
EAN: 3389110236477
GTIN: 3389110236477
MPN: LA4DWB
Loyalty points:
10
Price range: £ 47.32 - £ 77.05 Excl. VAT
Categories
ETIM group
Specifications
| Depth | - |
| Width | - |
| Height | 19 mm |
| Type of set-up | Direct attachment |
| Operating voltage DC | |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz | |
| Voltage type for actuating | DC |
