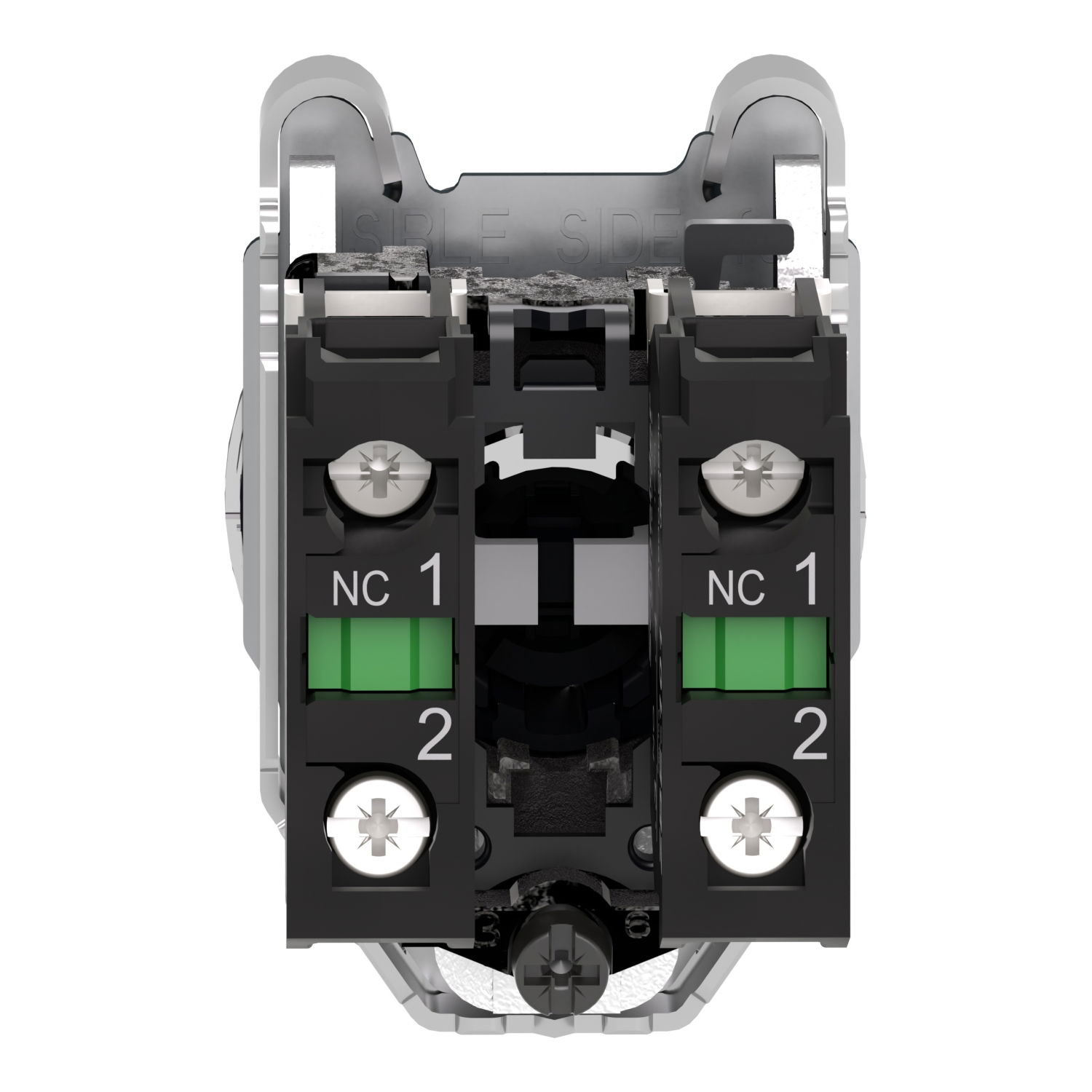

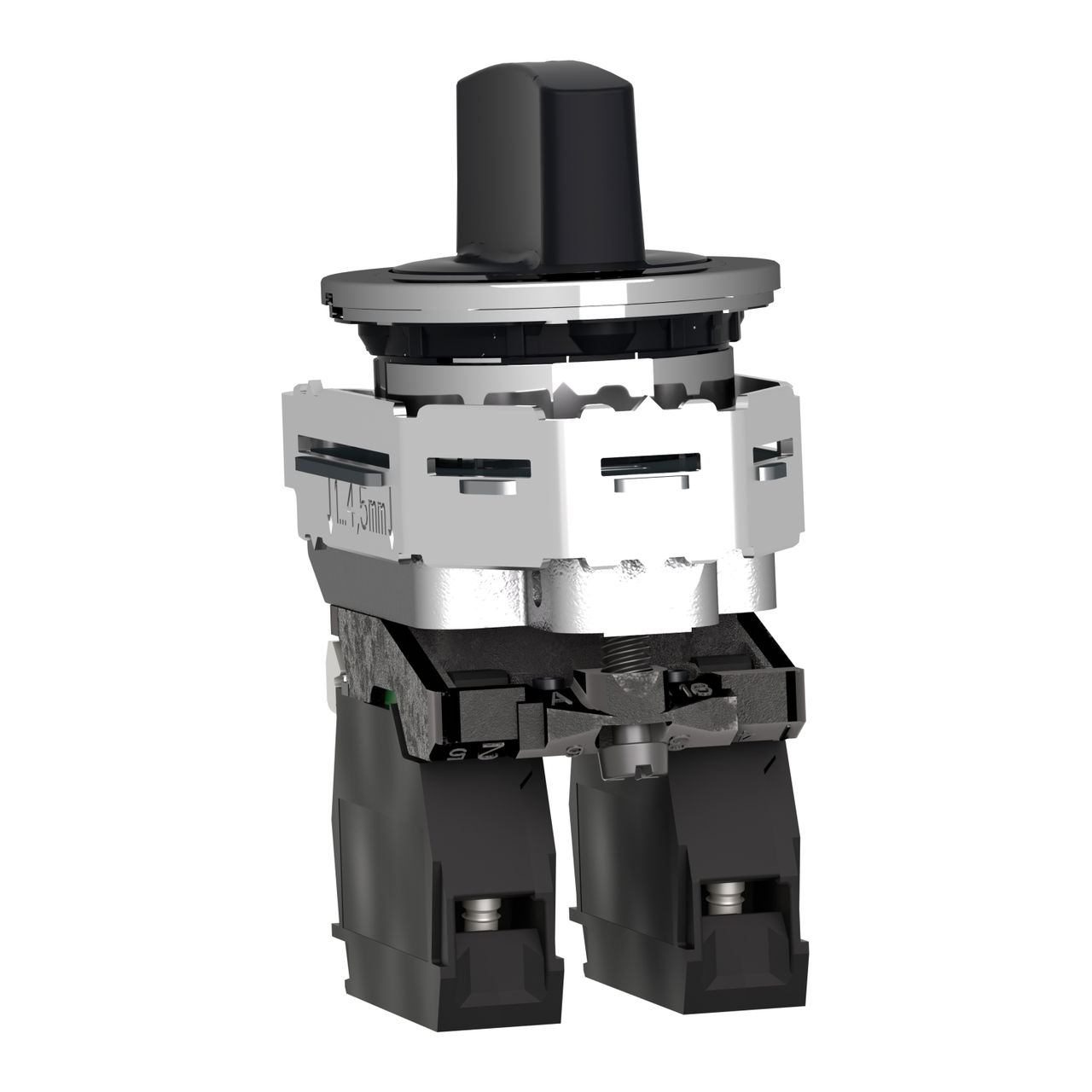

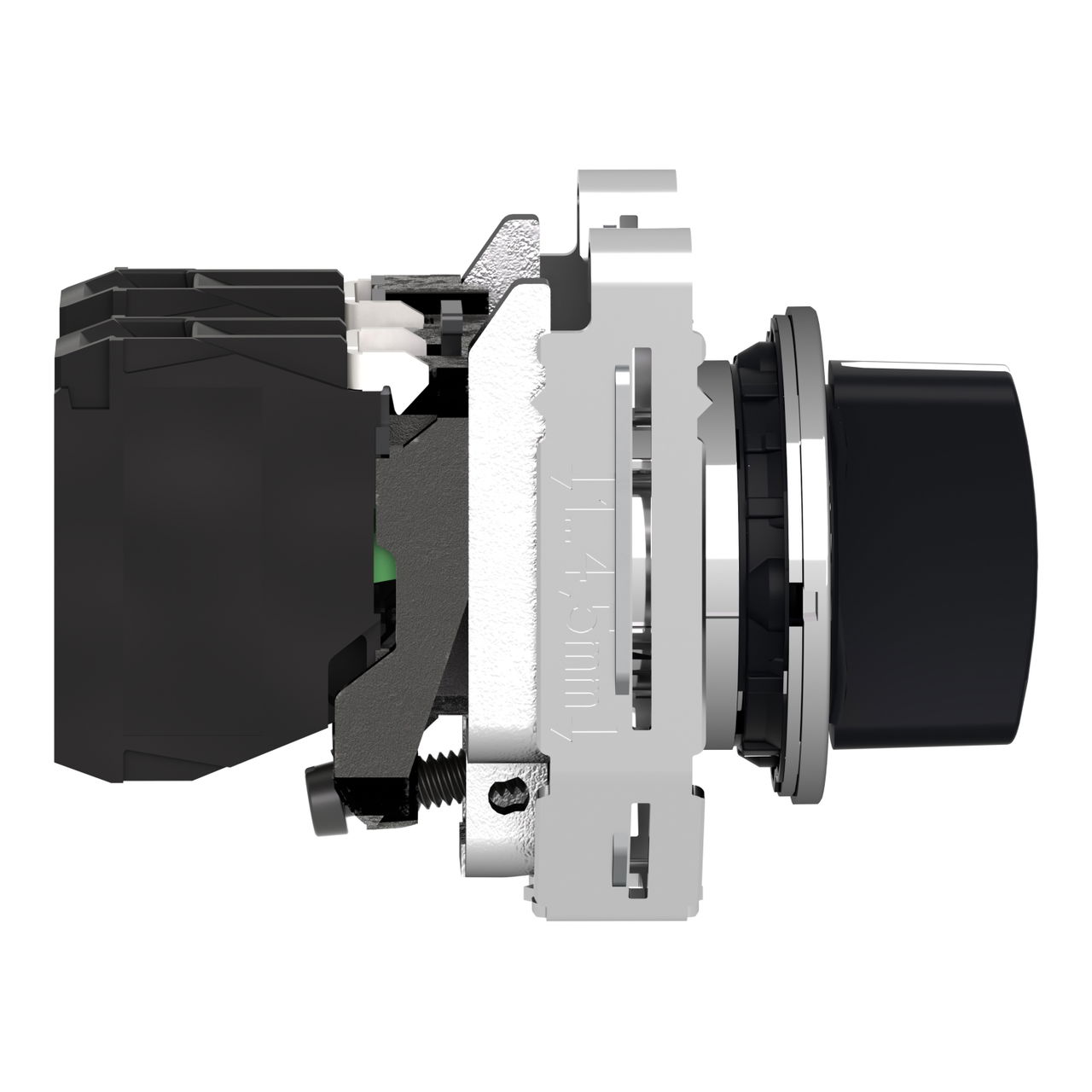

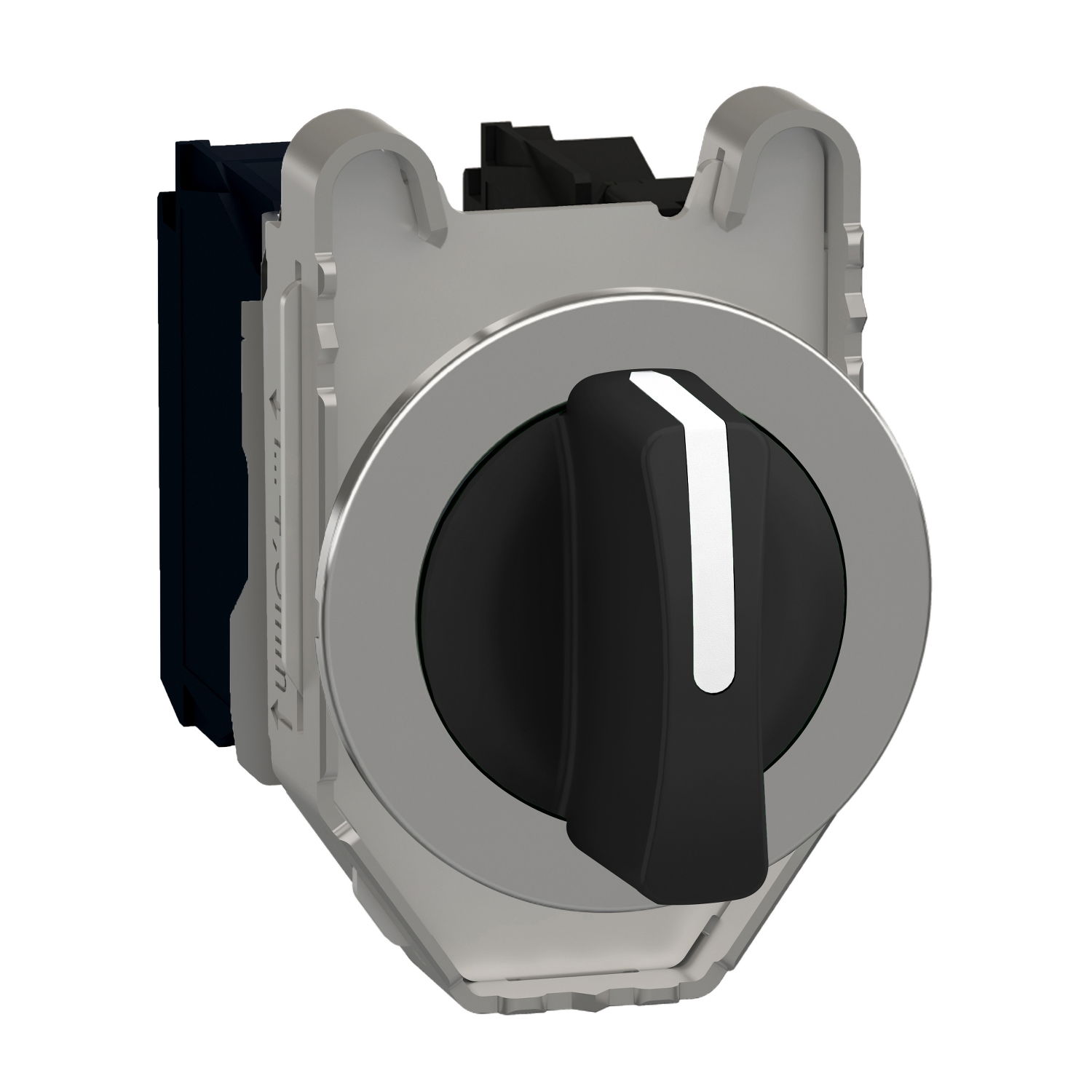

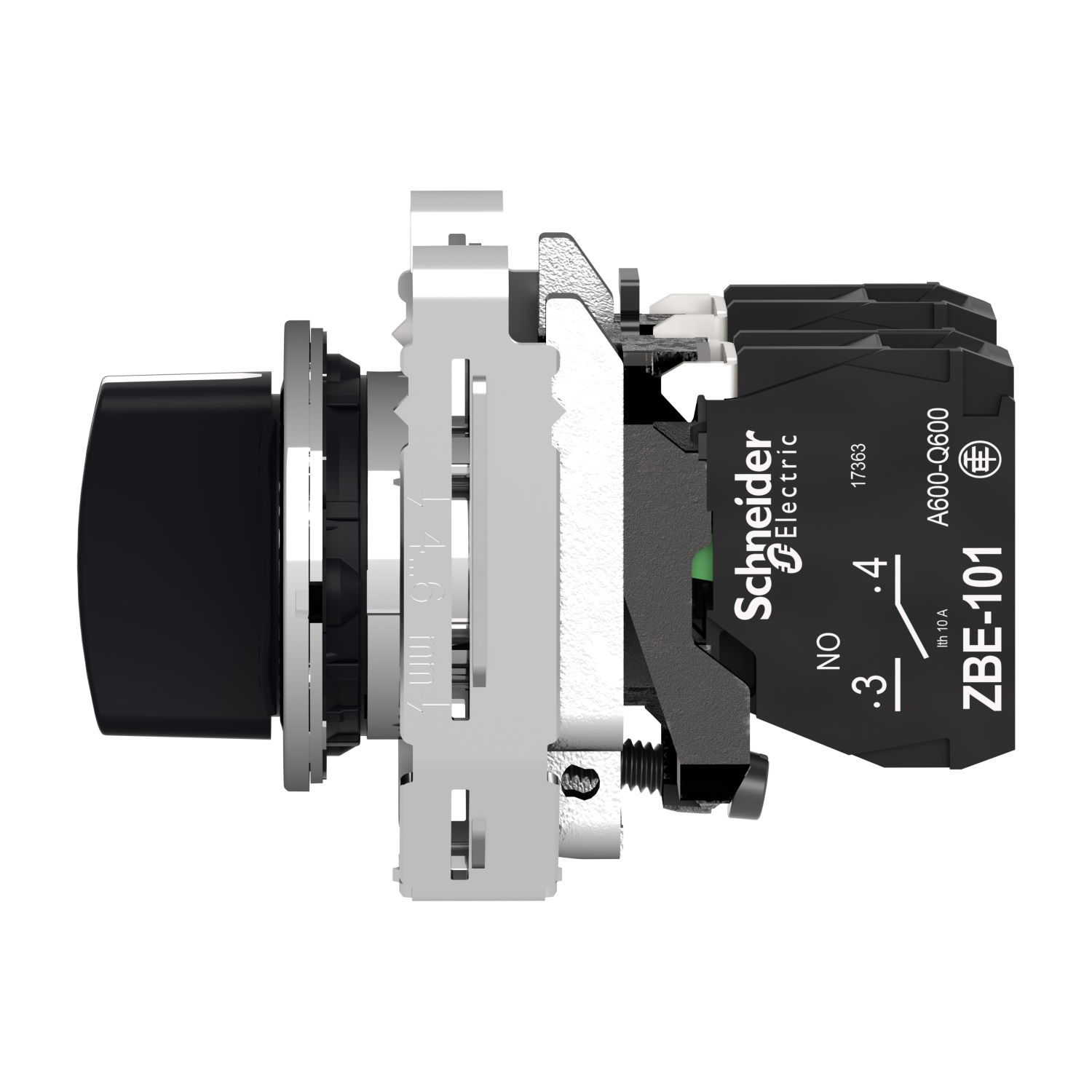

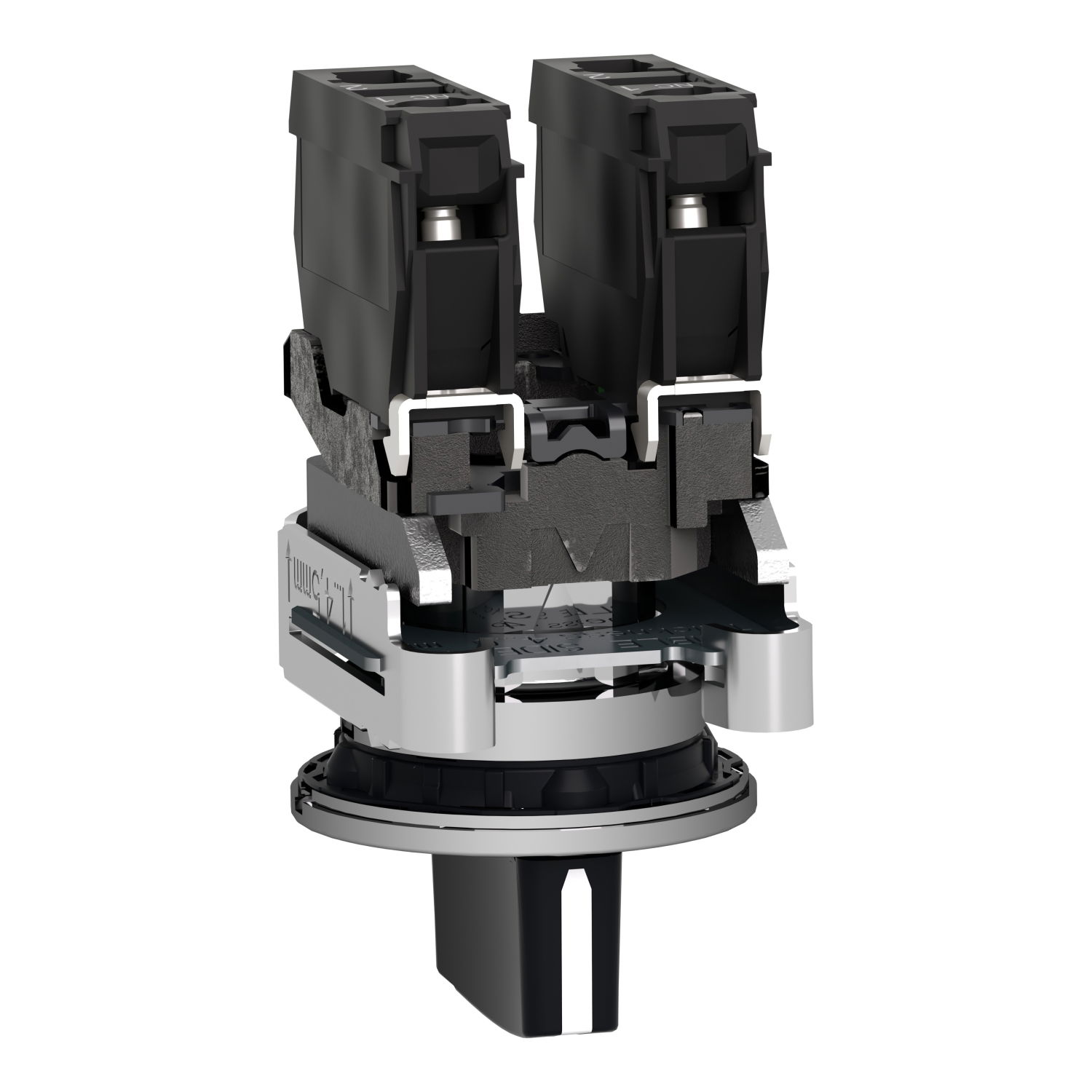

Harmony XB4, Selector switch flush mounted, metal, black, Ø30, 3 positions, stay put, 2 NO

Link copied
SKU
EAN
GTIN
MPN

Harmony XB4, Selector switch flush mounted, metal, black, Ø30, 3 positions, stay put, 2 NO by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at all of them. Trade price £30.72 excl. VAT. Voltimum+ members earn 4 points per unit.

This flush mounted selector switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a black standard handle with 3 positions ± 45 degree stay put. The contact type is 2NO slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this selector switch is 95 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.

Voltimum+ Loyalty Programme Loyalty points: 4

Price: £ 30.72 Excl. VAT

Specifications

Power loss -
Colour button Black
Hole diameter 30.5 mm
Spring-return no
Width opening -
Height opening -
Supply voltage
With front ring yes
With light source no
Suitable for lighting no
Degree of protection (IP) IP66
Degree of protection (NEMA) 13
Type of electric connection Screw connection
Number of contacts as normally open contact 2
