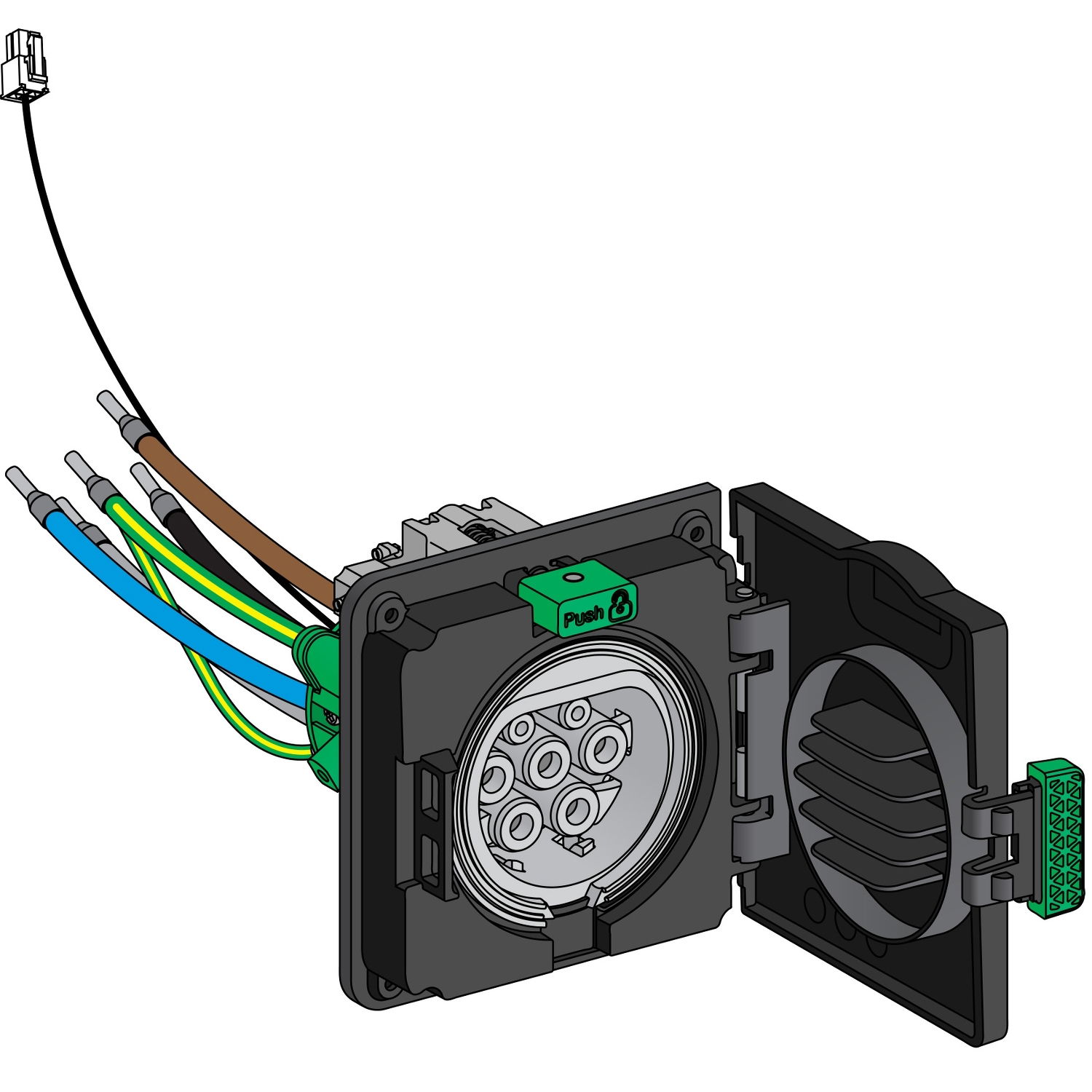

T2 socket-outlet subassembly 1-Ph IEC - Wallbox spare part

Name: T2 socket-outlet subassembly 1-Ph IEC - Wallbox spare part
Brand: Schneider Electric
SKU: EVP1HSM21
Price: 218.00 GBP
Availability: OutOfStock

Product identifiers

SKU: EVP1HSM21

EAN: 3606485435626

GTIN: 3606485435626

MPN: EVP1HSM21

Loyalty points: 36

Price: £ 218.00 Excl. VAT

Specifications

Depth	90 mm
Model	Charging socket outlet
Width	110 mm
Height	110 mm
Standard	Type 2
LED integrated	no
Nominal voltage	240 V
Type of current	AC single phase
Contact material	Other
Connection system	Screw connection
Max. nominal current	32 A
With access interlocking	yes
Degree of protection (IP)	Other
Surface treatment contacts	Silver-plated
With interlocking actuator	yes
Number of communication contacts	2
Cross section of the power contacts
Length of the fixed connection cable	0.12 m

Documents

Deeplink product page
Product data sheet
Environmental compliance declaration
Declaration of conformity
