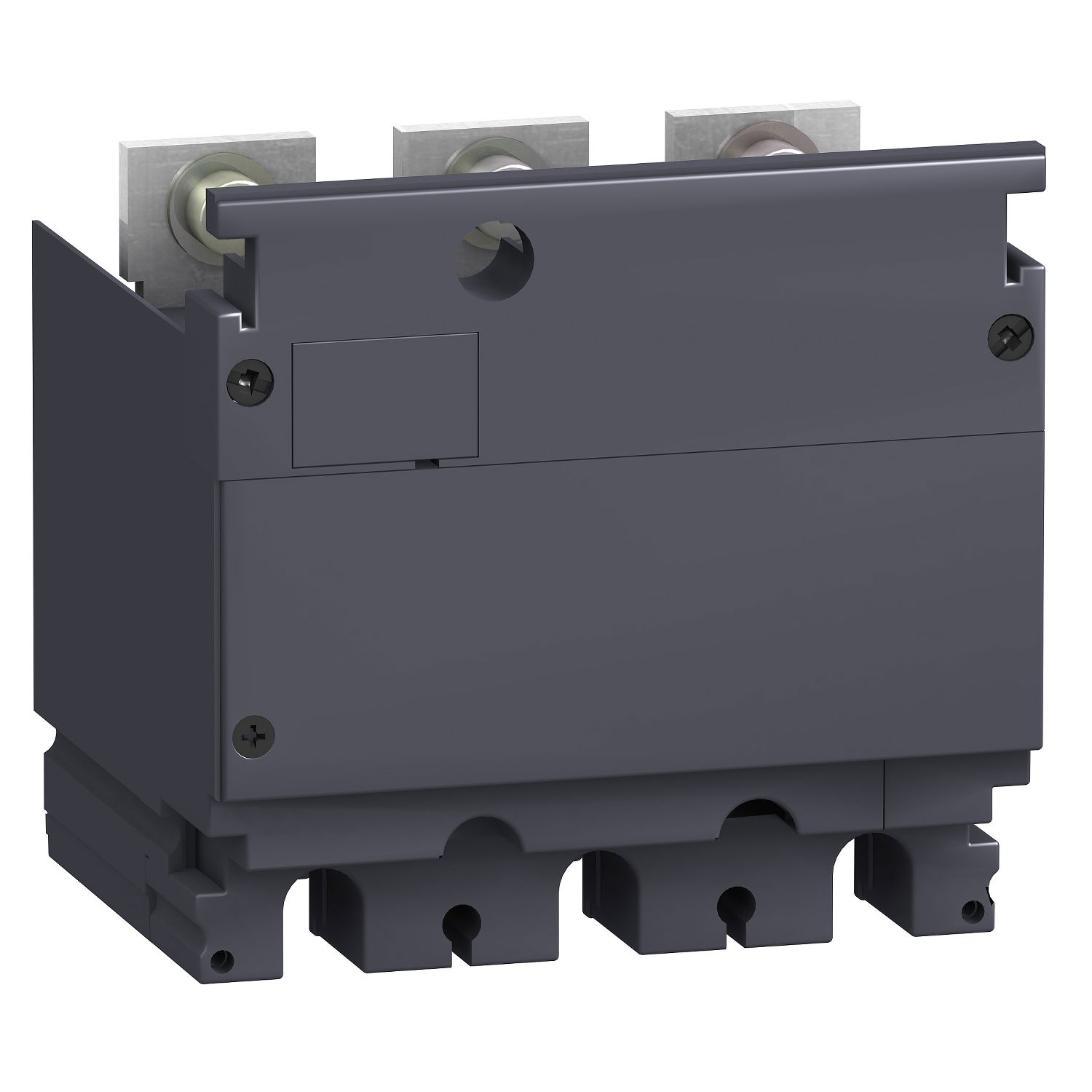

Current transformer module with voltage output, ComPact NSX100/160/250, 125 A rating, 3 poles

Link copied
SKU
EAN
GTIN
MPN

Current transformer module with voltage output, ComPact NSX100/160/250, 125 A rating, 3 poles by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade prices range from £340.97 to £433.40 excl. VAT. Voltimum+ members earn 51 points per unit.

This is an additional current transformer module of 125A rating with voltage measurement output for 3 poles ComPact NSX 100/160/250 devices. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 125A and the operational voltage is 530 VAC 50/60 Hz. The current at the secondary winding is 5A. The power consumption is 1.1VA. The class accuracy is 1. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40.

Voltimum+ Loyalty Programme Loyalty points: 51

Price range: £ 340.97 - £ 433.40 Excl. VAT

Specifications

Model Through-feed current converter
Calibrated yes
Snap mounting no
Width opening
Accuracy class 1
Height opening
Opening diameter -
With copper rail no
Secondary connection Screw connection
Rated secondary current 5 A
Number of primary inputs 3
Rated secondary apparent power 1.1 VA

Documents

Declaration of Conformity (Sustainability)

LV429461 REACh Regulation

Open

User guide

ComPact NSX100-630 - User Guide

Open

Instruction sheet

ComPacT NSX100-250/ComPacT INS250 - 3P/4P Current Transformer Module With Voltage Output - Instruction Sheet

Open

Product data sheet

Open

Catalog

Low Voltage Power Distribution catalogue 2025

Open

Declaration of Conformity (Sustainability)

LV429461 EU RoHS Directive

Open

Declaration of conformity

UK_DoC_ PB21100101B-UK_ComPacT-NSX100, 160, 250 type B, F, N, H, S, L with MA or TMD trip units

Open

Environmental Disclosure

Current transformer module with voltage output, ComPact NSX250, 250A rating, 3 poles - Product Environmental Profile

Open
