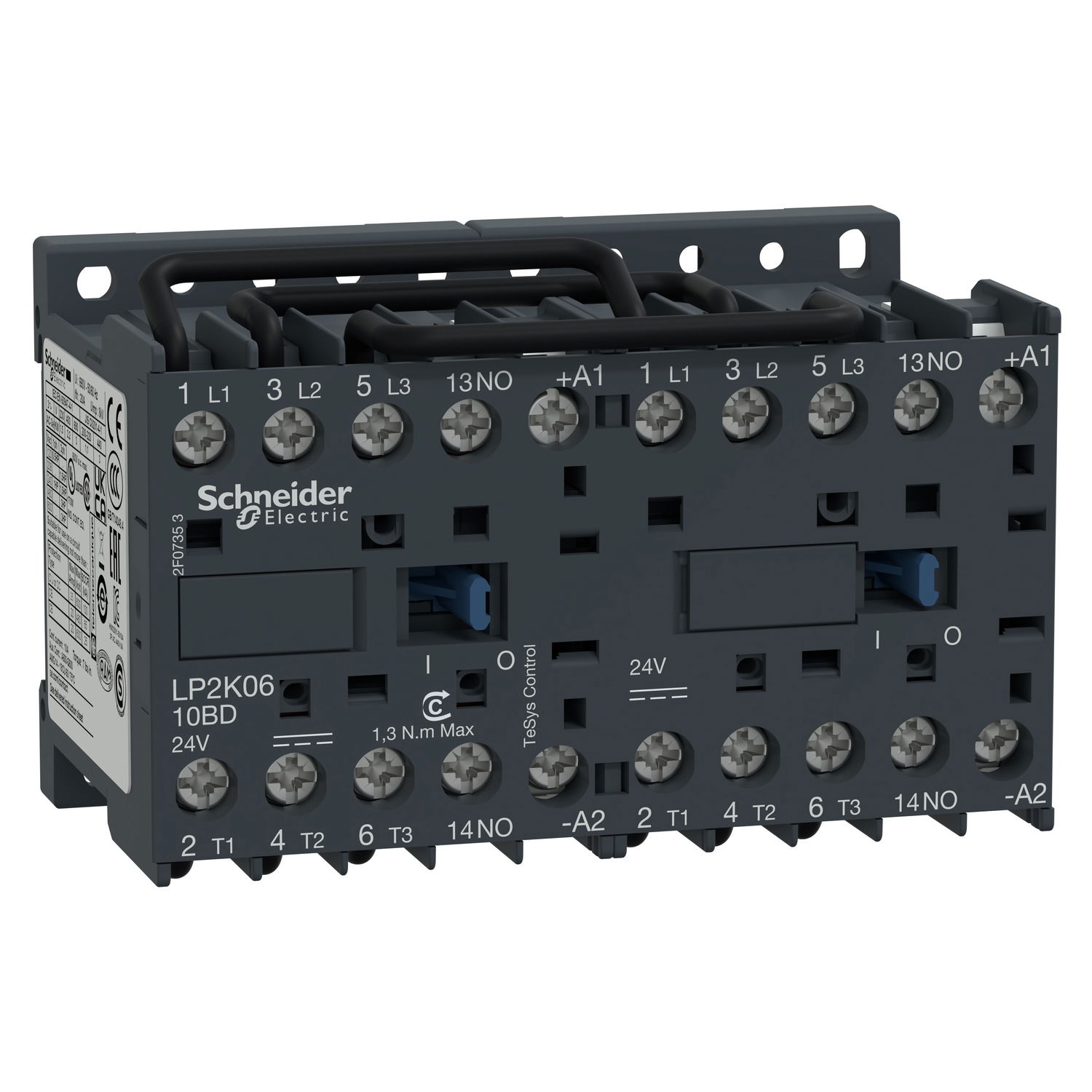

TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NO - 24 V DC coil
1 / 2
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NO - 24 V DC coil
TeSys K reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NO - 24 V DC coil by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, RS Components and City Electrical Factors. It is currently in stock at 2 of them. Trade prices range from £98.83 to £104.52 excl. VAT. Voltimum+ members earn 12 points per unit.
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides 24V DC coils, 2NO built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC)
Product identifiers
SKU: LP2K0610BD
EAN: 3389110496949
GTIN: 3389110496949
MPN: LP2K0610BD
Loyalty points:
12
Price range: £ 98.83 - £ 104.52 Excl. VAT
ETIM group
Specifications
| Depth | 57 mm |
| Width | 90 mm |
| Height | 58 mm |
| Function | Reversing contactor |
| Operating voltage DC | |
| Degree of protection (IP) | IP20 |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz |
