Emergency stop head, switching off, metal, red mushroom Ø40, Ø22, trigger latching push-pull

Link copied

SKU
EAN
GTIN
MPN

Emergency stop head, switching off, metal, red mushroom Ø40, Ø22, trigger latching push-pull by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £17.17 to £27.56 excl. VAT. Voltimum+ members earn 4 points per unit.

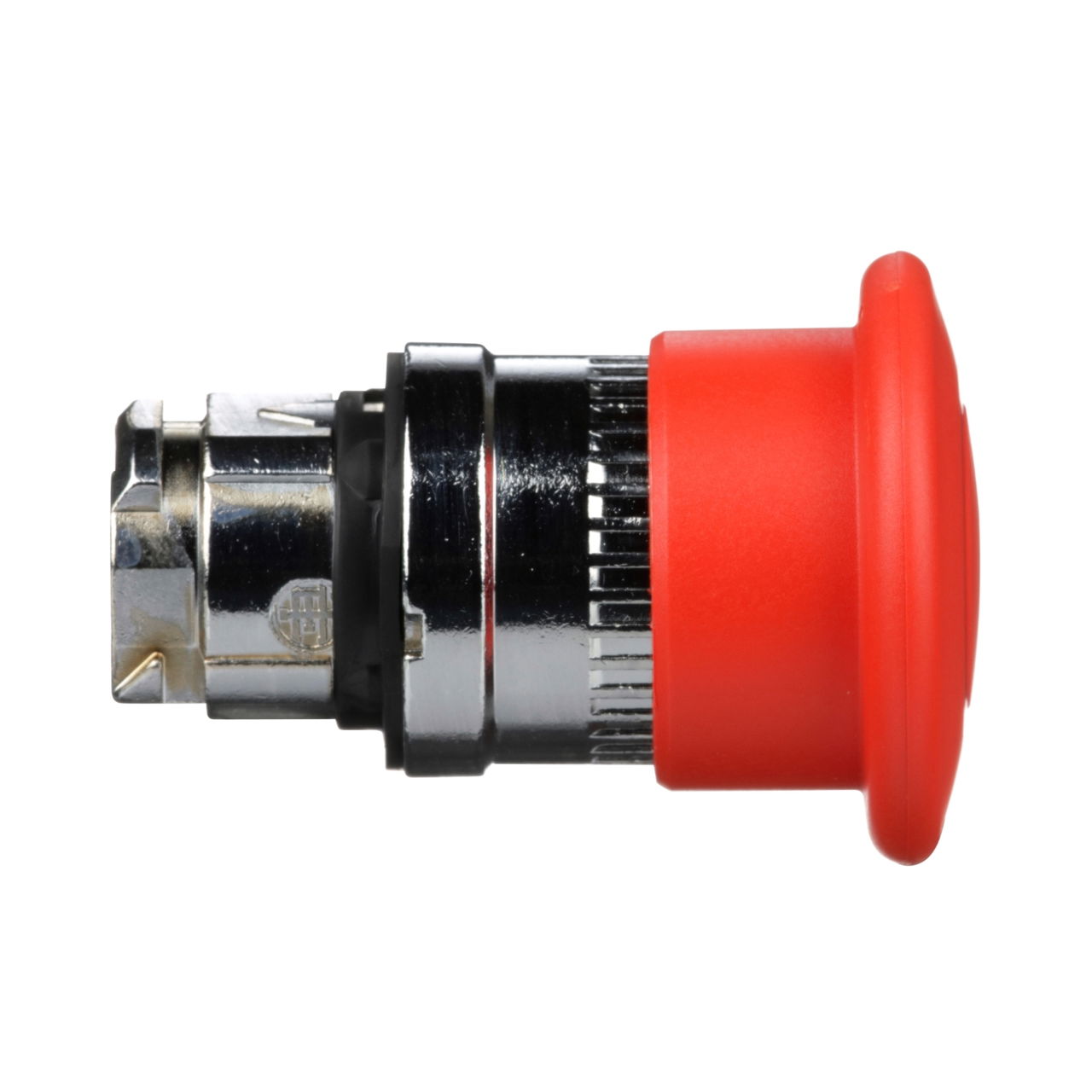

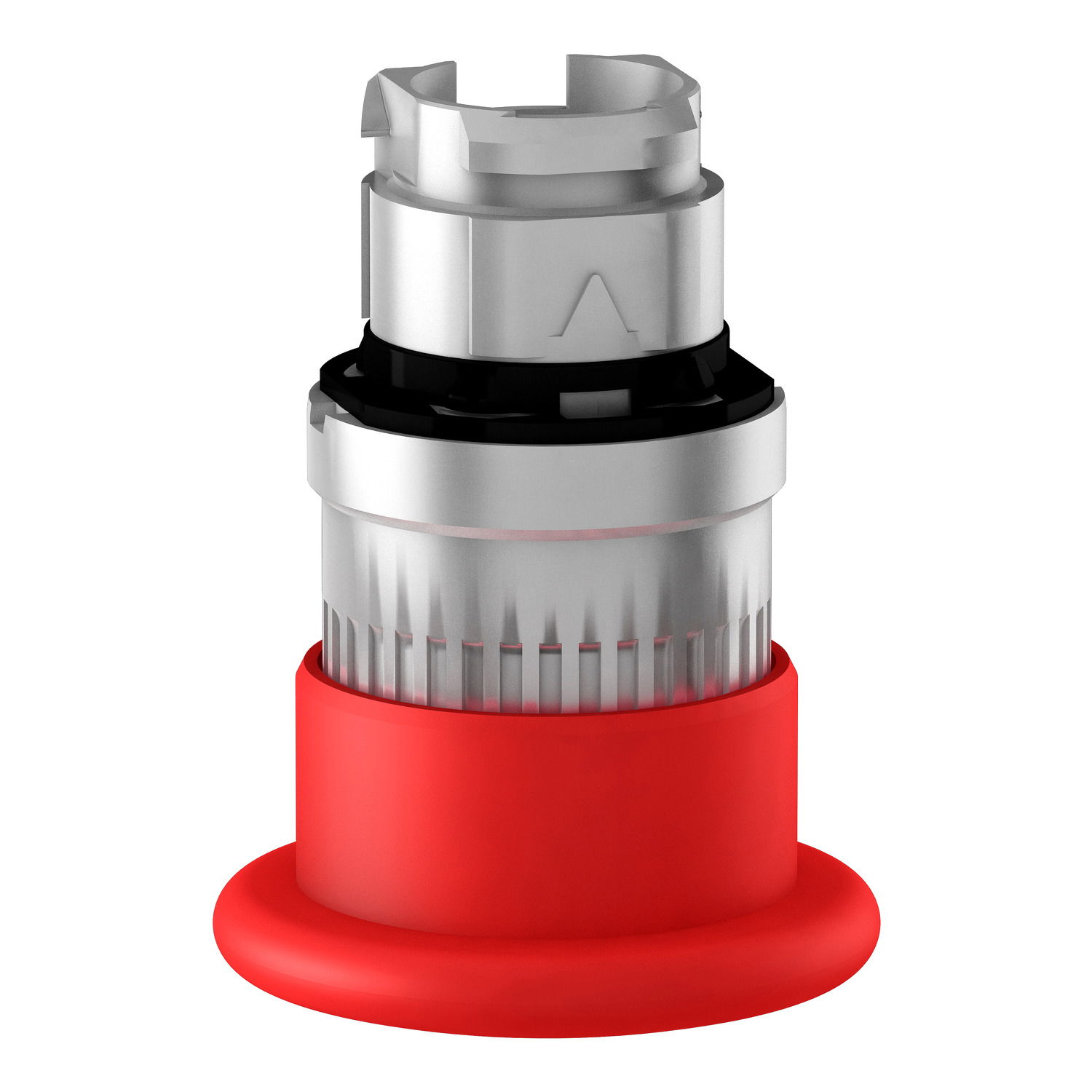

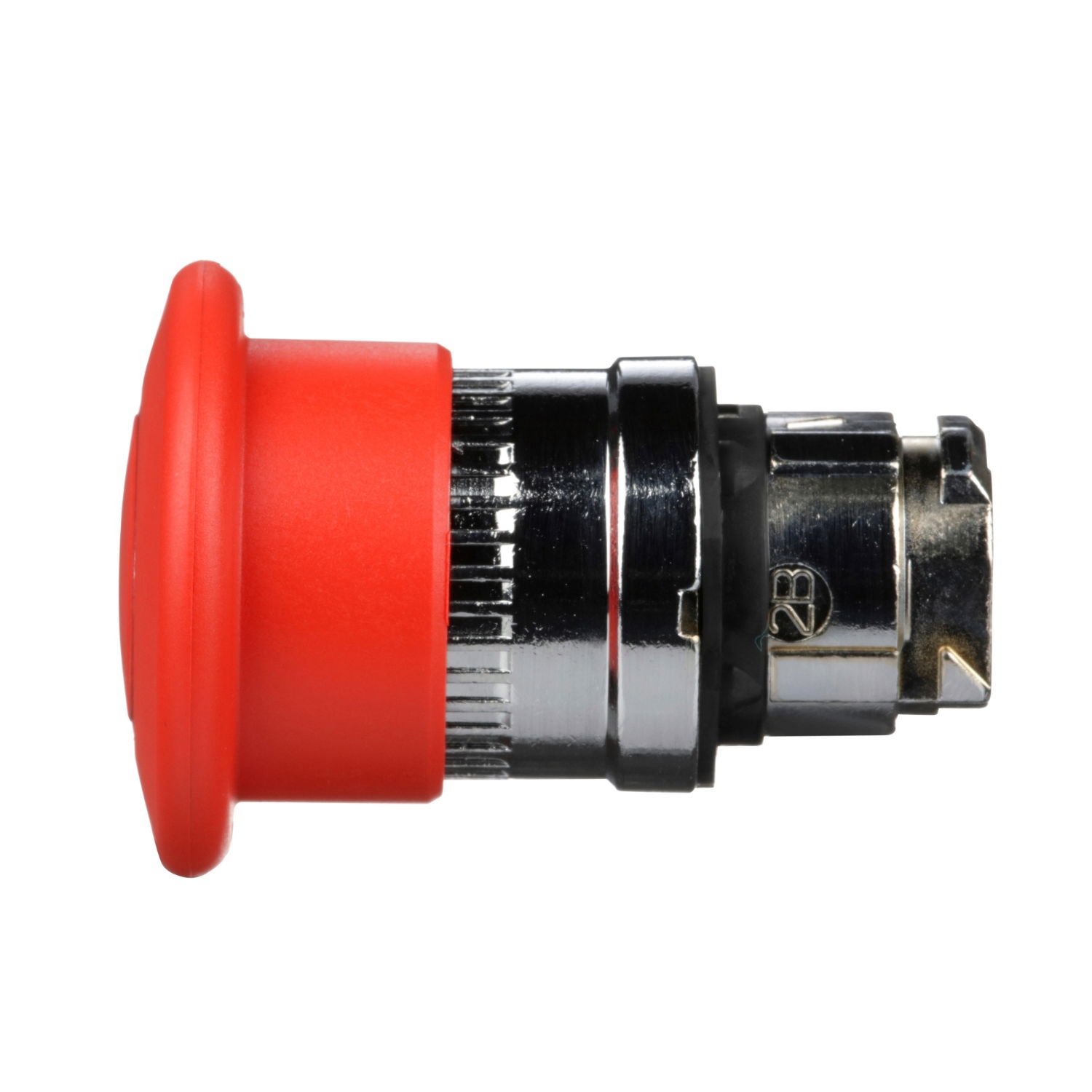

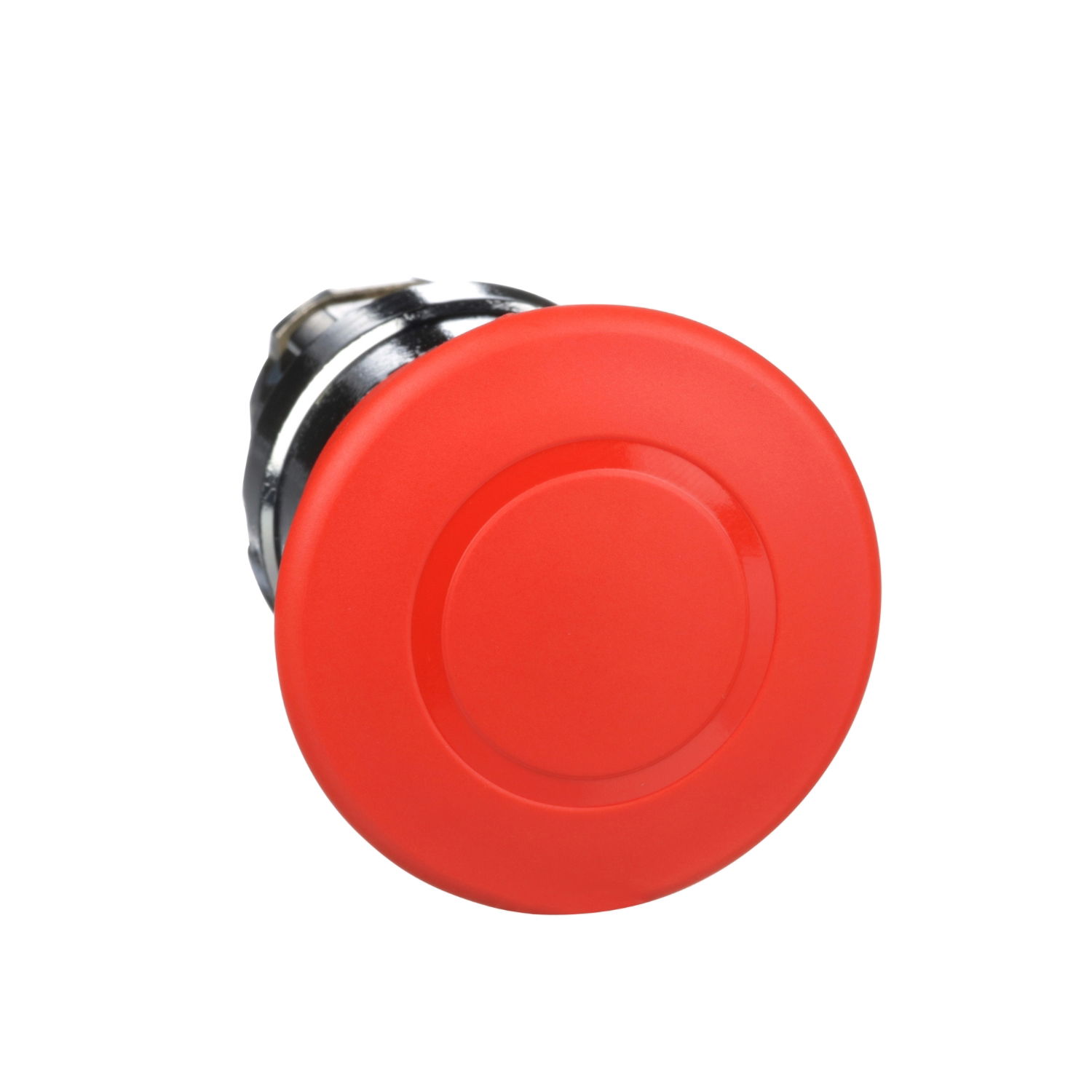

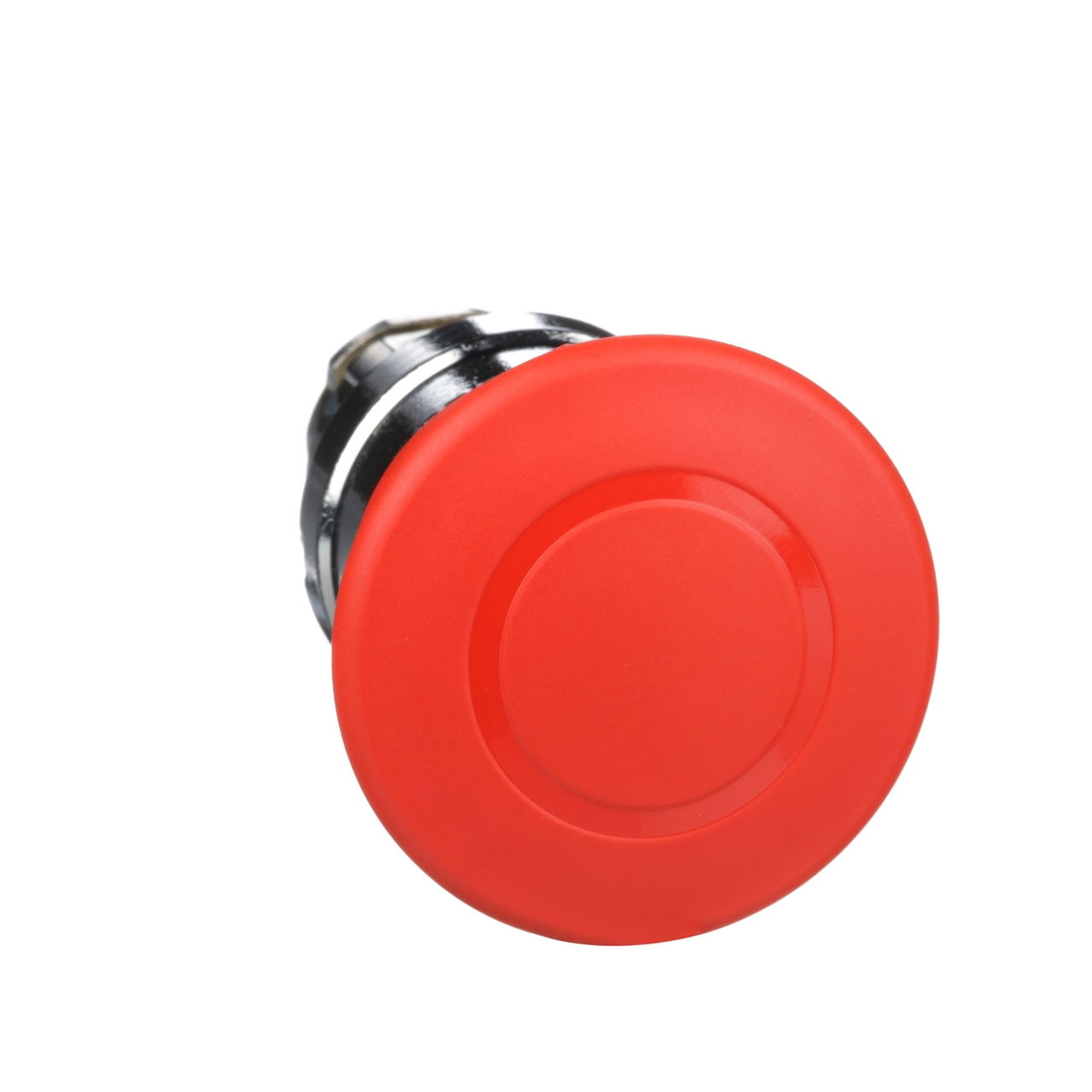

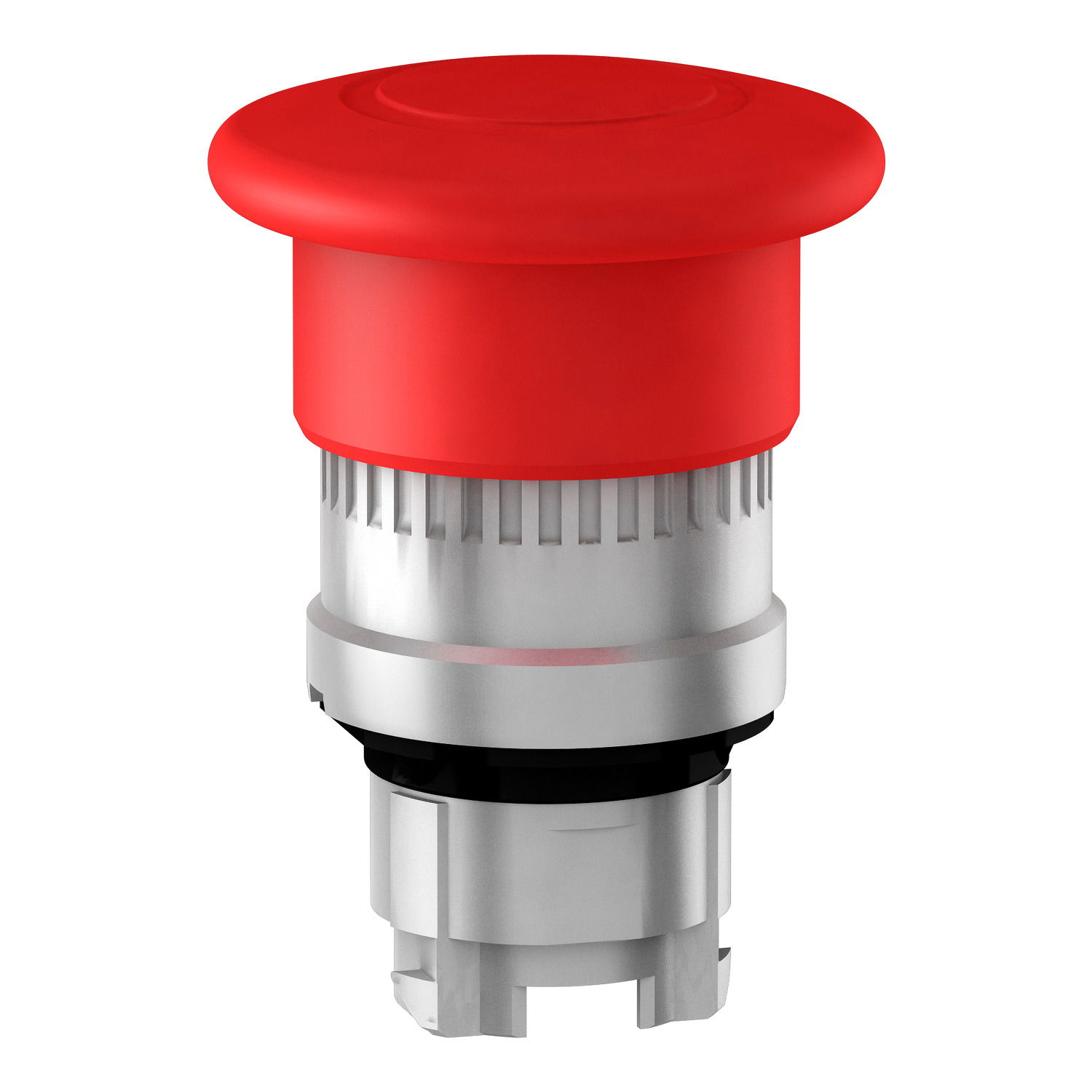

This Harmony XB4, Emergency stop 40mm mushroom red button head operates with a latched push-pull mechanism. This emergency stop / shutdown button head, is easily combined with contact blocks and installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Loyalty points: 4

Price range: £ 17.17 - £ 27.56 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Diameter cap	40 mm
Colour button	Red
Hole diameter	22.5 mm
Spring-return	no
Width opening	-
With lighting	no
Height opening	-
Type of button	High
With front ring	yes
Unlocking method	Pull-release
Colour front ring	Chrome
Material front ring	Metal
Supply voltage lamp	-
Suitable for lighting	no
Construction type lens	Round
Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
Suitable for emergency stop	yes
Switching function latching	yes
