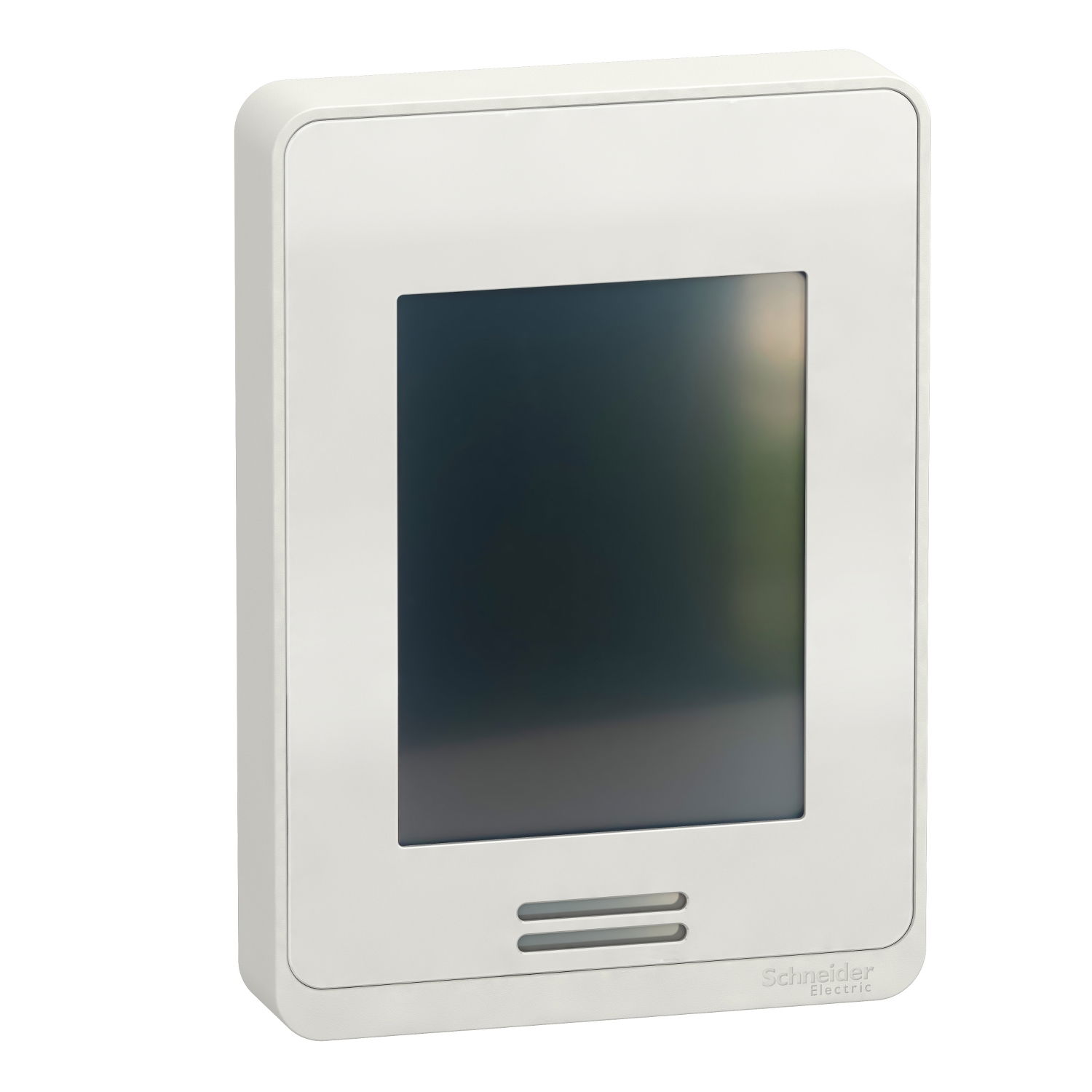

Modicon M172 Display Color TouchScreen, Temperature built-in sensor

Modicon M172 Display Color TouchScreen, Temperature built-in sensor by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including BPX Electro Mechanical Co. Ltd, and currently in stock. Trade price £236.39 excl. VAT. Voltimum+ members earn 40 points per unit.

"This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This color touchscreen display is an accessory to the M172 Optimized and Performance controllers." "It is powered with a 24VACDC supply and has a built-in sensor for Temperature control." "It is designed for indoor use to control temperature with a built-in sensor." "It figures one Communication port fRS485 Modbus serial line." "Its screen size is 3.5inches, with a 320x240pixels resolution, and its Ip level is IP20." "It measures 86mm wide, 25mm deep, 120mm high, and weighs 0.340kg." "It is remote display for Modicon M172 logic controllers." "It is certified by CE, RCM, EAC and CTUVus." "It is compatible with M172 Optimized and M172 Performance logic controllers." "It is sold in a 1-piece package." "It is designed for wall mounting." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."

Product identifiers

SKU: TM172DCLWT
EAN: 3606481267634
GTIN: 3606481267634
MPN: TM172DCLWT

Voltimum+ Loyalty Programme Loyalty points: 40

Price: £ 236.39 Excl. VAT

Specifications

With recipes no
Built-in depth 25 mm
Colour display yes
IO link master no
Screen diagonal -
Type of display Other
Touch technology Other
Power consumption 1.3 W
Radio standard GSM no
With SW interfaces no
Radio standard GPRS no
With printer output no
With numeric keyboard no
Supply voltage AC 60 Hz
Number of system buttons 0
Number of password levels 0
Number of online languages 0
Radio standard WLAN 802.11 no
Number of HW-interfaces USB 0
Supporting protocol for CAN no
Supporting protocol for LON no
Number of pixels, horizontal 320
Number of interfaces PROFINET 0
Voltage type (supply voltage) AC/DC
Number of HW-interfaces RS-232 0
Number of HW-interfaces RS-485 0
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Number of HW-interfaces wireless 0
Supporting protocol for EtherCAT no
Supporting protocol for PROFIBUS no
Supporting protocol for PROFIsafe no
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO no
Supporting protocol for Data-Highway no
Degree of protection (IP), front side Other
Degree of protection (NEMA), front side -
Additional software components, loadable no
Supporting protocol for DeviceNet Safety no
Certified for UL hazardous location class I no
Supporting protocol for Foundation Fieldbus no
Number of grey-scales/blue-scales of display 0
Certified for UL hazardous location division 1 no
Process value representation (output) possible no
With message system (incl. buffer and confirmation) no
Certified for UL hazardous location group B (hydrogen) no
Certified for UL hazardous location group A (acetylene) no
Certified for UL hazardous location group F (carbonaceous dusts) no
