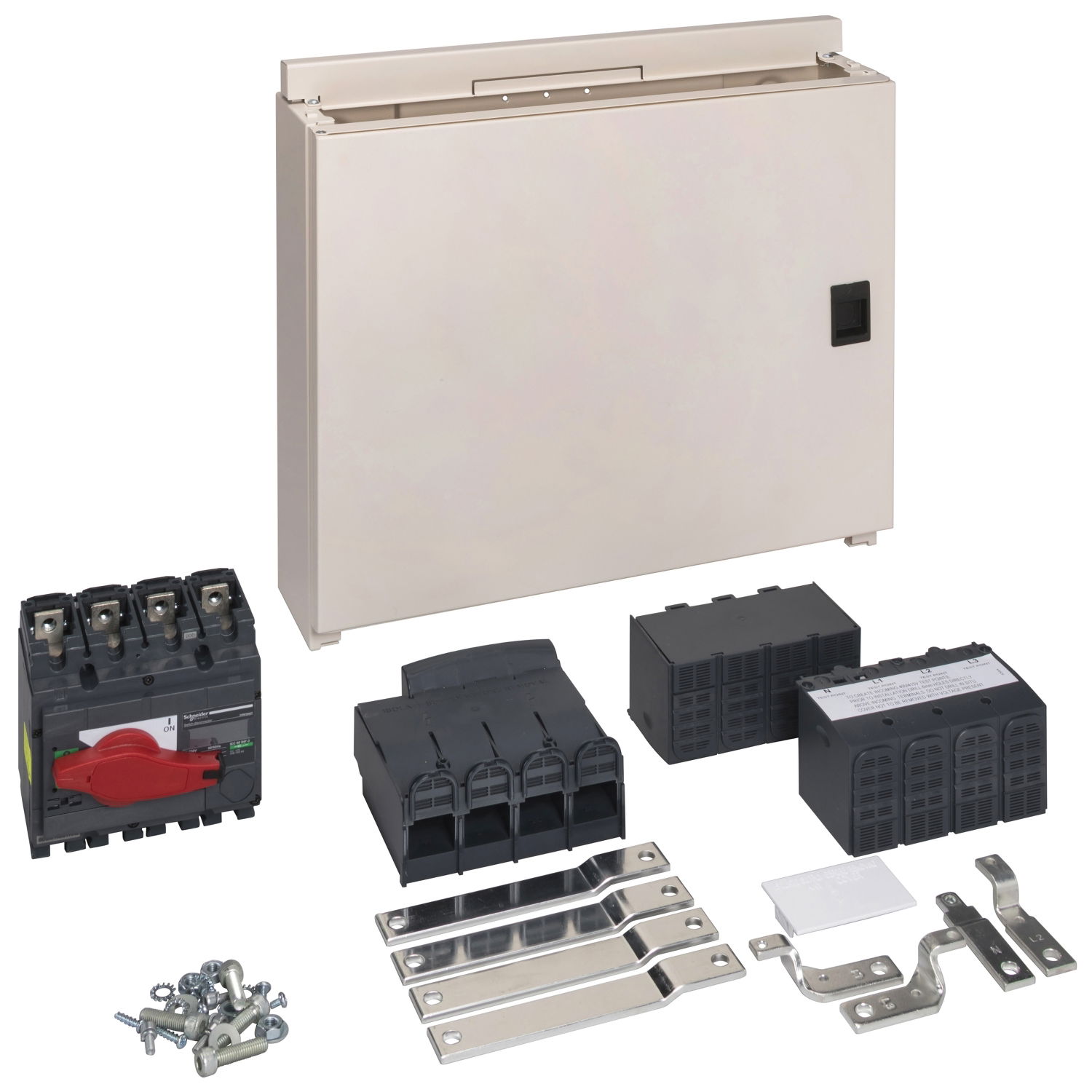

Acti9 Isobar B - switch disconnector - 200A - 3P+N

Acti9 Isobar B - switch disconnector - 200A - 3P+N

This Acti9 Isobar B product is a switch disconnector. Ease of installation This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It has a position contact indication suitable for industrial isolation according to BS EN 60947-3 standard. This product complies with BS EN 60947-3 standard.

Product identifiers

SKU: SEA9PNI2003
EAN: 5018934008431
GTIN: 5018934008431
MPN: SEA9PNI2003

V+ Loyalty points:

235

Price range: £ 472.35 - £ 475.63 Excl. VAT

Specifications

Depth -
Width -
Height -
Interlockable yes
Number of poles 4
Number of switches 4
Device construction Built-in device fixed built-in technique
Motor drive optional no
Motor drive integrated no
Rated operating voltage
Switching power at 400 V -
Voltage release optional no
With pre-assembled cabling no
Suitable for floor mounting no
Max. rated operation voltage Ue AC 455 V
Suitable for front mounting centre yes
Width in number of modular spacings -
Degree of protection (IP), front side IP40
Rated short-time withstand current lcw 25 kA
Version as maintenance-/service switch no
Rated permanent current at AC-23, 400 V -
Suitable for distribution board installation yes
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0
