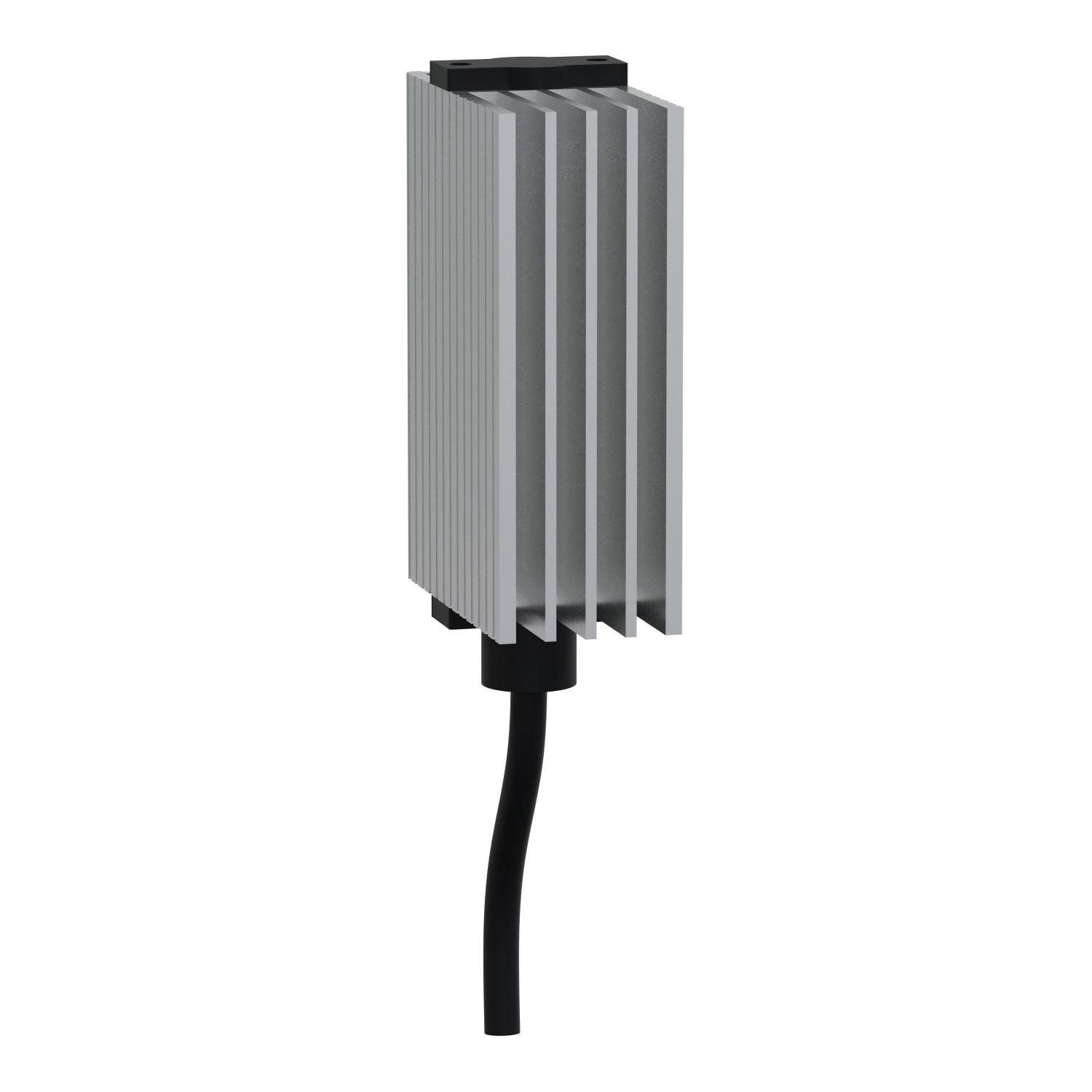

ClimaSys PTC heating resistance 20W, 12-24V
ClimaSys PTC heating resistance 20W, 12-24V
ClimaSys PTC heating resistance 20W, 12-24V by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Trade price £42.94 excl. VAT. Voltimum+ members earn 5 points per unit.
ClimaSys PTC heating resistance. 20W, 12-24V DC. (-40 to 70)°C temp for operation. Electrical connection is cable 2 x 0.75 mm² length is 300 mm. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
Product identifiers
SKU: NSYCR20WU1
EAN: 3606480152122
GTIN: 3606480152122
MPN: NSYCR20WU1
Loyalty points:
5
Price: £ 42.94 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 75 mm |
| Width | 38 mm |
| Height | 98 mm |
| With fan | no |
| Rated power | 20 W |
| Voltage type | DC |
| Operating voltage DC | |
| Degree of protection (IP) | IP20 |
