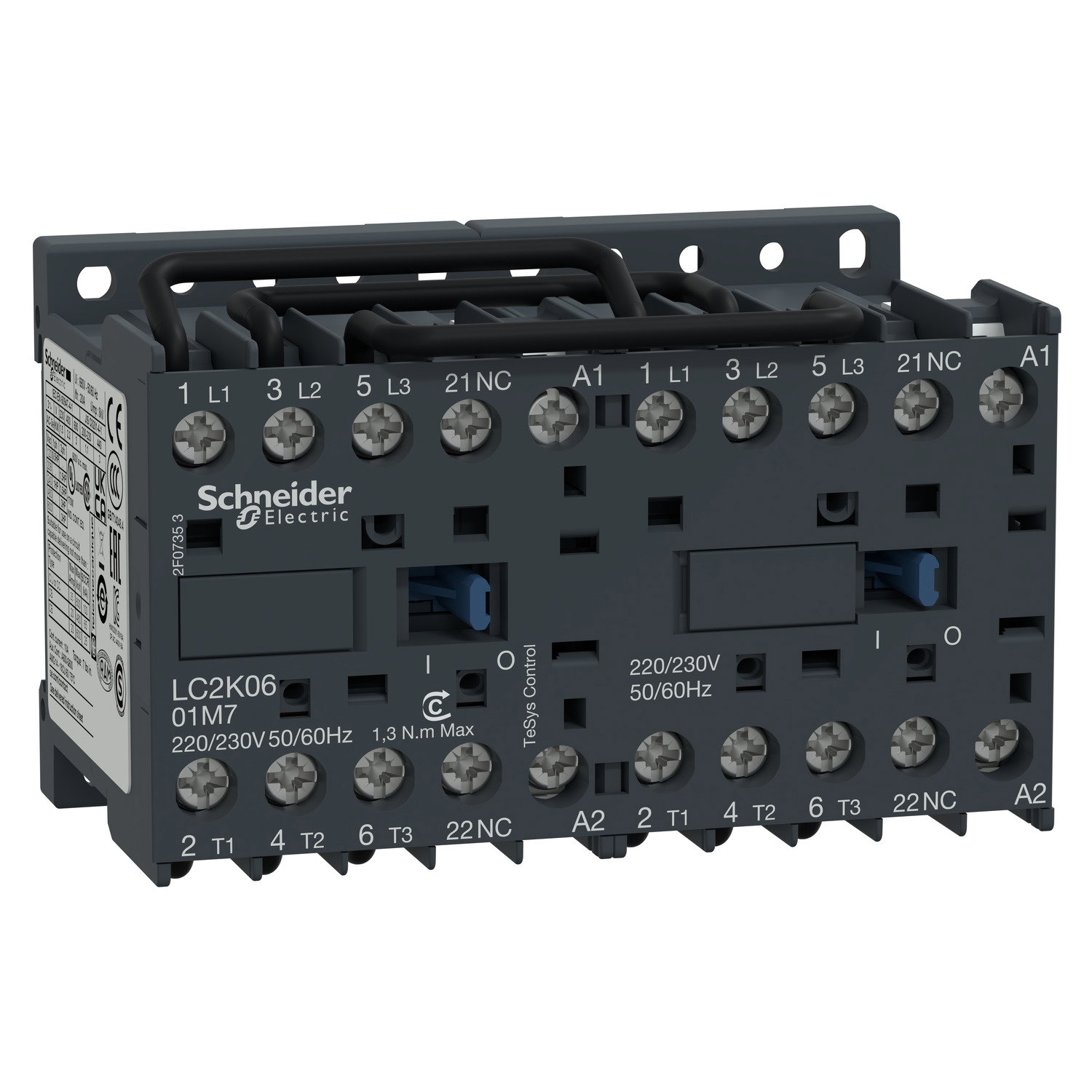

TeSys K reversing contactor - 3P - AC-3 <= 440 V 9 A - 1 NC - 230...240 VAC coil

TeSys K reversing contactor - 3P - AC-3 <= 440 V 9 A - 1 NC - 230...240 VAC coil by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 5 of them. Trade prices range from £44.47 to £97.56 excl. VAT. Voltimum+ members earn 11 points per unit.

TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 230-240V 50/60Hz AC coils, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC)

Product identifiers

SKU: LC2K0901U7
EAN: 3389110492026
GTIN: 3389110492026
MPN: LC2K0901U7

Voltimum+ Loyalty Programme Loyalty points: 11

Price range: £ 44.47 - £ 97.56 Excl. VAT

Categories

Switchgear & Circuit Protection Contactors & Motor Starters

ETIM group

Low-voltage industrial components

Specifications

Depth 57 mm
Width 90 mm
Height 58 mm
Function Reversing contactor
Operating voltage DC
Degree of protection (IP) IP20
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Suitable for rail mounting no
Degree of protection (NEMA) Other
Voltage type (operating voltage) AC
Rated control supply voltage AC 50 Hz
Rated operation current Ie at AC-1, 400 V -
Type of electrical connection of main circuit Screw connection
Number of normally closed contacts as main contact 0
Number of auxiliary contacts as normally open contact 0
Type of electrical connection for auxiliary- and control current circuit Screw connection

Documents

Declaration of Conformity (Sustainability)

LC2K0901U7 REACh Regulation

Open

Instruction sheet

LC2-K contactor - Instruction Sheet

Open

Product data sheet

Open

Catalog

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

LC2K0901U7 EU RoHS Directive

Open

Declaration of conformity

EU_Declaration_TeSysK_LC.K&LP.K06-16

Open

Environmental Disclosure

PEP_TeSys LC1K09-K16

Open

Circularity Profile

TeSys K 9A AC3 CONTACTOR

Open
